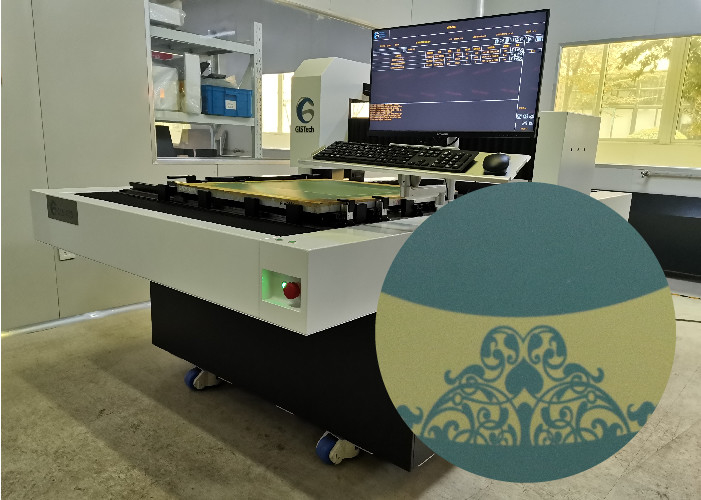

Textile Computer To Screen Exposing Machine

Max Screen Size 1000*1100 Computer To Screen CTS For Textile Laser Direct Exposure Machine For Decal

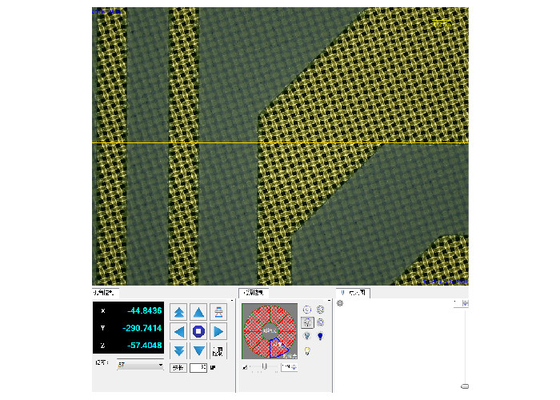

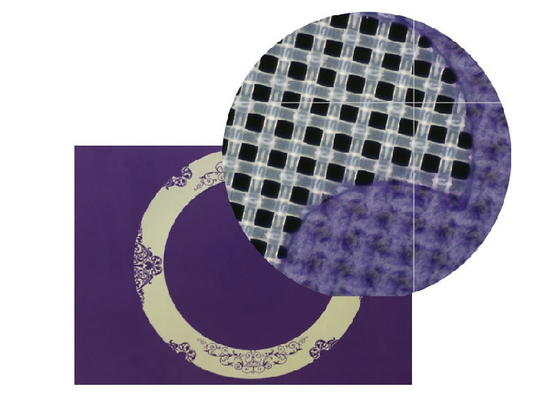

Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen..

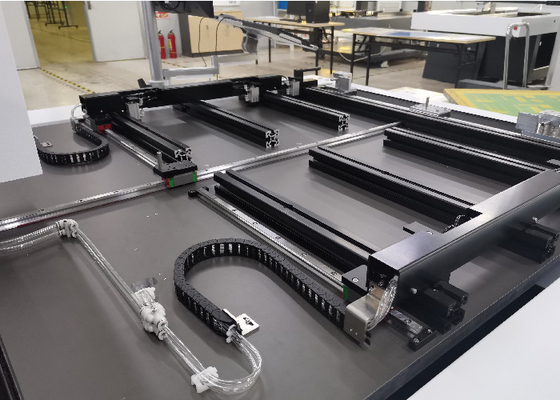

The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.

GIS Tech Inc.

GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.

• Specification / Model	CTS200
  Max screen size ( mm )	1000x1100
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	900x1000
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	2700x1550x1600
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW, gas 1L/min
