Jiangsu GIS Laser Technologies Inc.,

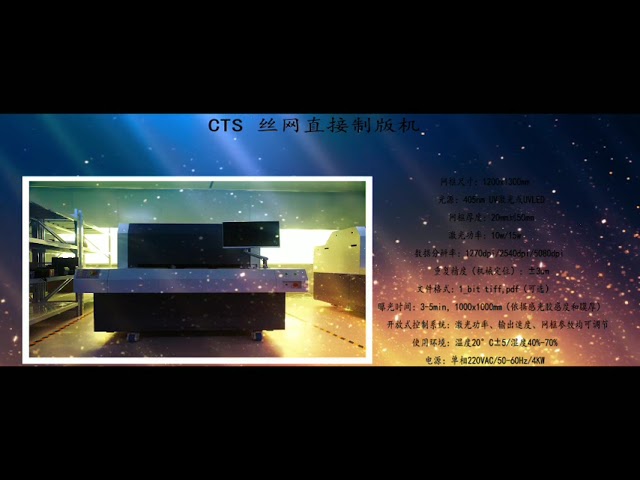

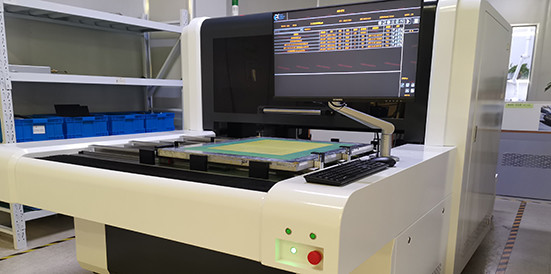

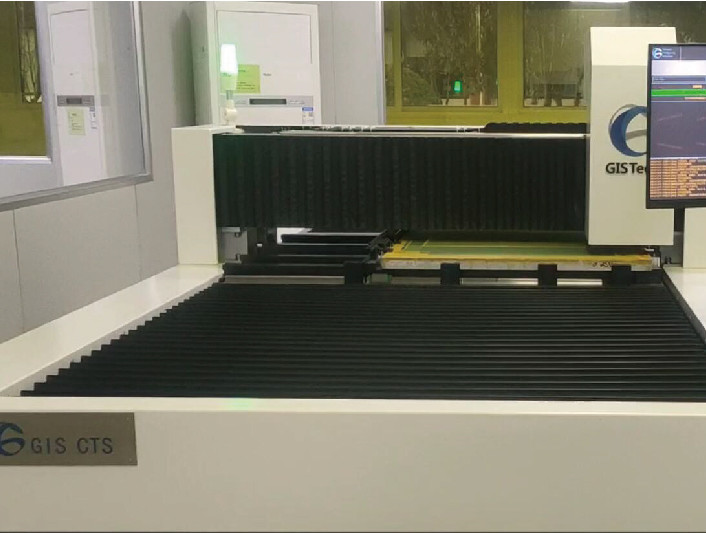

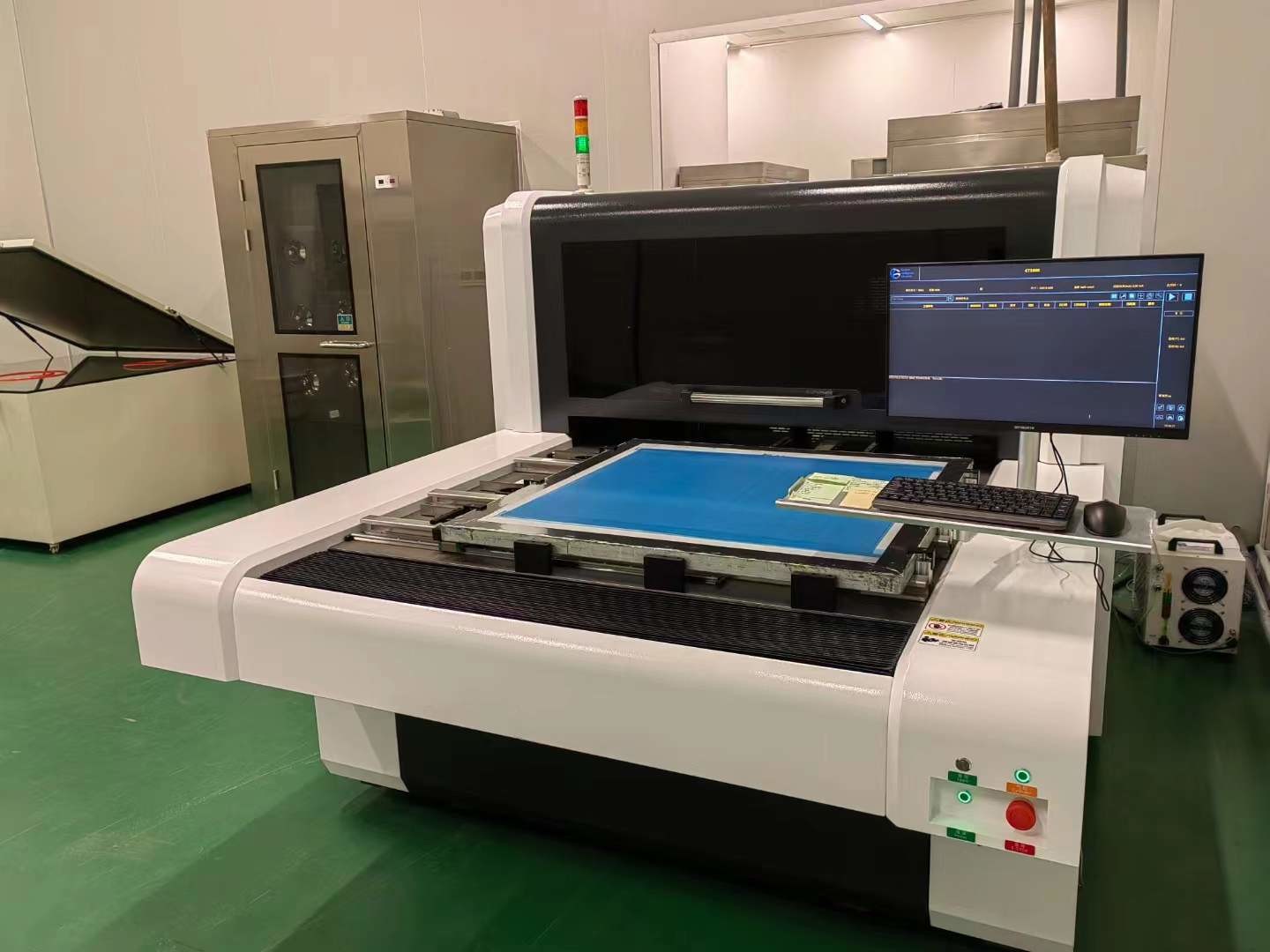

The laser direct exposure machine is an exposure system (CTS) that can image a computer image on a screen plate. The laser direct exposure machine includes a high-precision optical lens, a DMD imaging system, a 405-nanometer laser, a stable motion platform, a computer with an efficient software system, a monitor, and a stable water cooling system. This laser direct exposure machine can expose and image with high precision on the silk screen. Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen.   Specification / Model CTS100 Max screen size ( mm ) 900x1000 Min screen size ( mm ) 400x400 Max exposure size ( mm ) 800x900 Screen frame thickness (bespoke service is available) 25-45mm Imaging System DMD DLP Technology Emulsion thickness (EOM) Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 220μm Exposure time 120-240s/ ㎡, #350 yellow mesh Resolution 1270/2540dpi (Optional) Raster 133LPI Focus system Fixed focusing File format 1_bit tiff etc. Laser type UV laser, wavelength 405±5nm Laser power 20W/25W(Optional) Equipment size (mm) 1550x1330x1460 Equipment net weight 1100KG Conditions Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) Power Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min
