133LPI Automatic Screen Exposing Machine Single Phase 220V

Certification
China Jiangsu GIS Laser Technologies Inc., certification
China Jiangsu GIS Laser Technologies Inc., certification
I'm Online Chat Now

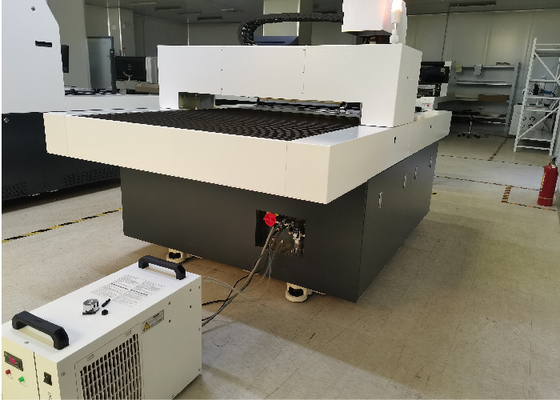

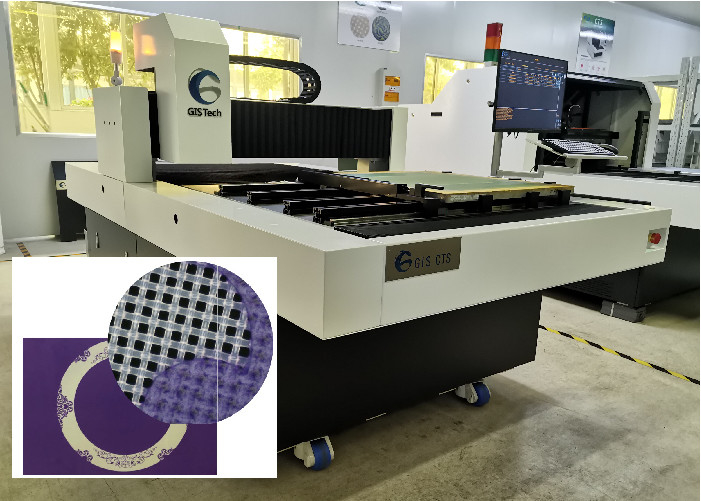

133LPI Automatic Screen Exposing Machine Single Phase 220V

133LPI Automatic Screen Exposing Machine Single Phase 220V
133LPI Automatic Screen Exposing Machine Single Phase 220V
133LPI Automatic Screen Exposing Machine Single Phase 220V 133LPI Automatic Screen Exposing Machine Single Phase 220V 133LPI Automatic Screen Exposing Machine Single Phase 220V 133LPI Automatic Screen Exposing Machine Single Phase 220V 133LPI Automatic Screen Exposing Machine Single Phase 220V

Large Image :  133LPI Automatic Screen Exposing Machine Single Phase 220V

Product Details:
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month

133LPI Automatic Screen Exposing Machine Single Phase 220V

Description
Name: Computer To Screen Application: Decal Heat Transfer
Resolution: 2540dpi Max Screen: 1000x1100
Raster: 133LPI Equipment Size: 2700*1550*1600mm
Emulsion Thickness: 3-350μm Laser Type: UV Laser Wavelength 405±5nm
Highlight:

133LPI Automatic Screen Exposing Machine

,

220V Automatic Screen Exposing Machine

,

Single Phase cts machine

​Max Screen Size 1000*1100 Computer To Screen CTS For Textile Laser Direct Exposure Machine For Decal

  • Max Screen Size 1000*1100 Computer To Screen machine
  1. CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.

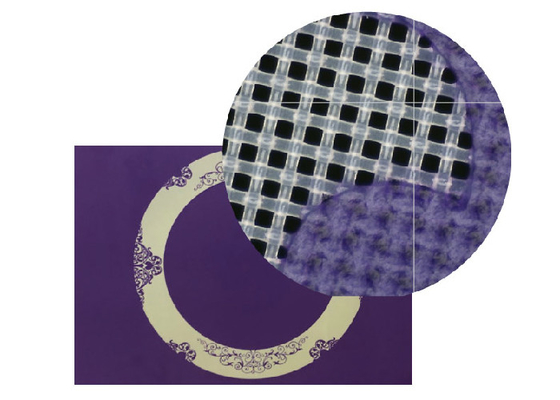

  2. Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen.
  3. CTS images are superior to traditional film positives, providing more detail and smoother halftone transitions. Dimensional accuracy, the error is less than one ten thousandth. All images do not require expensive film, nor do they require the space and labor required to store and retrieve them. Because the image information is digitized, it is easy to store and quickly retrieve.
    The CTS exposure system simplifies the work process and improves productivity, providing fast and excellent screen exposure with exponentially reduced energy costs, and CTS consumes much less energy. CTS temperature control adaptive technology, save energy costs, reduce screen exposure time and speed up production. It only takes 3 minutes to expose each square meter of the screen, with precise alignment and less labor.
    The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.

GIS Tech Inc.

has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.

  •   Specification / Model

      CTS200
      Max screen size ( mm )   1000x1100
      Min screen size ( mm )   400x400

      Max exposure size ( mm )

      900x1000
      Screen frame thickness
      (bespoke service is available)
      25-45mm
      Imaging System   DMD DLP Technology
      Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm
      Exposure time   120-240s/ ㎡, #350 yellow mesh
      Resolution   2540dpi (Optional)
      Raster   133LPI
      Focus system   Fixed focusing
      File format   1_bit tiff etc.
      Laser type   UV laser, wavelength 405±5nm
      Laser power   20W/25W(Optional)
      Equipment size (mm)   2700x1550x1600
      Equipment net weight   1100KG
      Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
      40-70% relative humidity (No condensation)
      Power   Single phase 220v, 50/60HZ, 4KW, gas 1L/min

High Precision:
Resolutions 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
