Product Details
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS200
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month
Name: |
Computer To Screen |
Application: |
Decal Heat Transfer |
Resolution: |
2540dpi |
Max Screen: |
1000x1100 |
Raster: |
133LPI |
Equipment Size: |
2700*1550*1600mm |
Emulsion Thickness: |
3-350μm |
Laser Type: |
UV Laser Wavelength 405±5nm |
Name: |
Computer To Screen |
Application: |
Decal Heat Transfer |
Resolution: |
2540dpi |
Max Screen: |
1000x1100 |
Raster: |
133LPI |
Equipment Size: |
2700*1550*1600mm |
Emulsion Thickness: |
3-350μm |
Laser Type: |
UV Laser Wavelength 405±5nm |

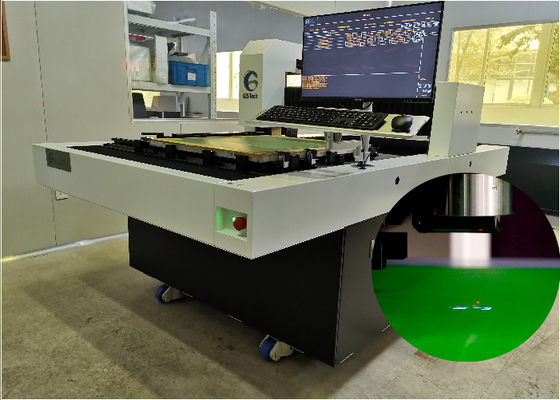

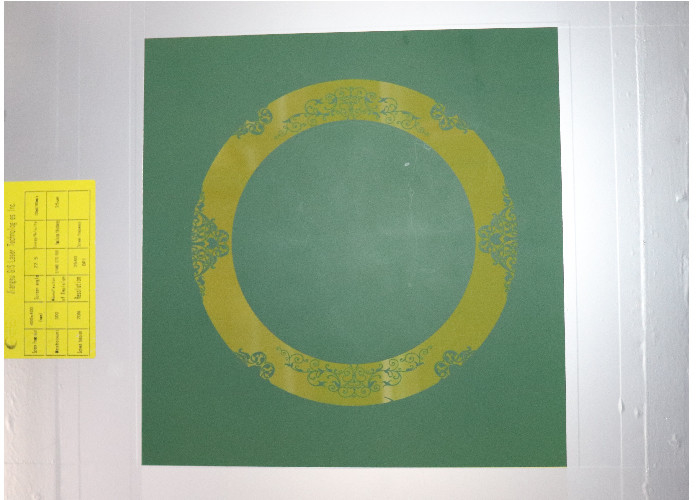

Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen..
The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.
Jiangsu GIS Laser Technologies Inc. (hereafter referred to as GIS Laser) is a subsidiary of GIS Tech Inc. which is a multinational company providing advanced intelligent manufacturing solutions in the fields of to the industries of New Energy, Semiconductor Packaging, Lithium Battery, PCB and Printing, with its incredible innovation through its independent Next Tech Research Institute, Business Division and Manufacturing Plant.
Specification / Model |
CTS200 |
Max screen size ( mm ) | 1000x1100 |
Min screen size ( mm ) | 400x400 |
Max exposure size ( mm ) |
900x1000 |
Screen frame thickness (bespoke service is available) |
25-45mm |
Imaging System | DMD DLP Technology |
Emulsion thickness (EOM) | Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 350μm |
Exposure time | 120-240s/ ㎡, #350 yellow mesh |
Resolution | 2540dpi (Optional) |
Raster | 133LPI |
Focus system | Fixed focusing |
File format | 1_bit tiff etc. |
Laser type | UV laser, wavelength 405±5nm |
Laser power | 20W/25W(Optional) |
Equipment size (mm) | 2700x1550x1600 |
Equipment net weight | 1100KG |
Conditions | Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
Power | Single phase 220v, 50/60HZ, 4KW, gas 1L/min |
High Precision:
Resolutions 2540dpi, with raster 133lpi/dpi (halftones printing)
High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.
Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
