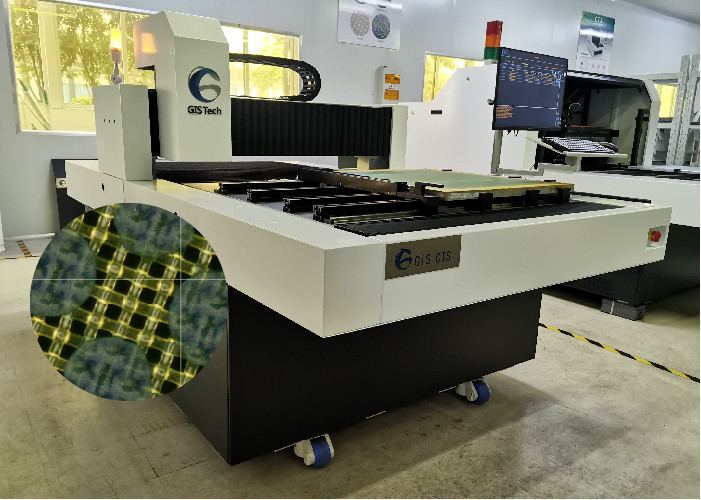

Max Screen Size 1000*1100 Computer To Screen CTS For Textile Laser Direct Exposure Machine For Decal

CTS laser direct plate making machine is to directly read computer data files and convert them into images, and then expose and image them on the screen by laser projection. This kind of imaging screen is suitable for textile printing, and also suitable for decals, packaging, PCB, 3C Printing on glass covers, etc.

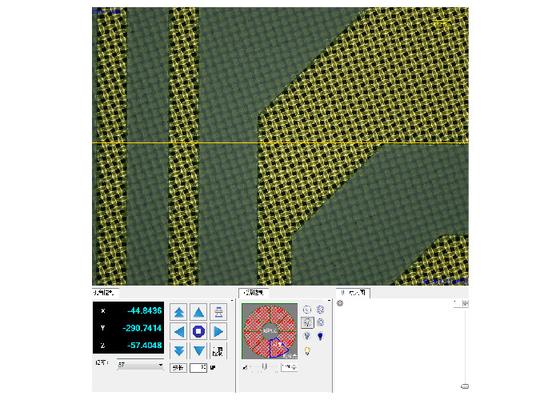

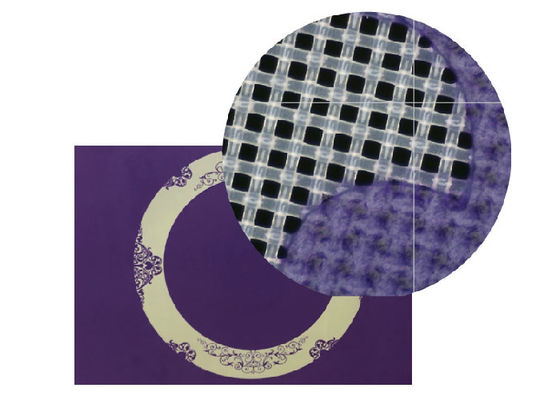

CTS images are superior to traditional film positives, providing more detail and smoother halftone transitions. Dimensional accuracy, the error is less than one ten thousandth. All images do not require expensive film, nor do they require the space and labor required to store and retrieve them. Because the image information is digitized, it is easy to store and quickly retrieve.

CTS temperature control adaptive technology, save energy costs, reduce screen exposure time and speed up production. It only takes 3 minutes to expose each square meter of the screen, with precise alignment and less labor.

GIS has passed ATL (TDK)/TDK qualified suppliers ISO 9001, OHSAS 18001, CE, China, the United States, Europe, South Korea, Japan, and more than 170 patents.

GIS Tech Inc.

GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.

• Specification / Model	CTS200
  Max screen size ( mm )	1000x1100
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	900x1000
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	2700x1550x1600
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW, gas 1L/min
