Product Details
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001 CE
Model Number: DPX630SM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month
Name: |
Laser Direct Imaging (LDI) |
Application: |
PCB HDI FPC |
Exposure Size Max: |
610*710mm |
Line Width: |
50μm |
Line Line Distance: |
50μm |
Line Width Tolerance: |
10% |
Laser Type: |
LD Laser, 405±5nm |
Deviation Increase And Decrease: |
Fixed Increase And Contracton, Automatic Increase And Contraction, Interval Increase And Contraction, Partition Alignment |
File Format: |
Gerber 274X, ODB++ |
Name: |
Laser Direct Imaging (LDI) |
Application: |
PCB HDI FPC |
Exposure Size Max: |
610*710mm |
Line Width: |
50μm |
Line Line Distance: |
50μm |
Line Width Tolerance: |
10% |
Laser Type: |
LD Laser, 405±5nm |
Deviation Increase And Decrease: |
Fixed Increase And Contracton, Automatic Increase And Contraction, Interval Increase And Contraction, Partition Alignment |
File Format: |
Gerber 274X, ODB++ |
laser direct imaging (LDI) system solutions PCB Solder Mask
PCB laser direct imaging (LDI)
when it comes to a prototype circuit board, PCB layout is one of the most important aspects. taking into account the smallest things goes wrong, the entire board will be damaged and it will not function appropriately, so PCB layout is extremely important. The imaging process, one of the most important steps in the PCB assembly process, and it does well in creating the PCB pattern.
For engineers, laser direct imaging ( LDI ) can make a good effect on creating an imaging pattern on laminates in a streamlined process. The laminates of a PCB are fabricated by curing with thermosetting resin under the pressure and temperature layers of cloth or paper to form an integral final piece of uniform thickness. Now PCBGOGO will explain about laser direct imaging ( LDI ) for flexible circuits.
How does laser direct imaging ( LDI ) work?
Laser direct imaging needs a PCB with the photo-sensitive surface that is positioned under a computer controlled laser. And then the computer is creating the image on the board with the light of laser. A computer scans the board surface into a raster image, matching the raster image to a pre-loaded CAD or CAM design file that includes the specifications for the necessary image intended for the board, the laser is used for directly creating the image on the board.
| Specification/model | DPX230 |
| Application | PCB,HDI,FPC (inner layer,outer layer,anti-welding) |
| Resolution (mass production) | 30um |
| Capacity | 30-40S@18"*24" |
| Exposure Size | 610*710mm |
| Panel thickness | 0.05mm-3.5mm |
| Alignment Mode | UV-Mark |
| Alignment capability | Outer layer±12um；Inner laye±24um |
| Line width tolerance | ±10% |
| Deviation increase and decrease mode | Fixed increase and contraction, automatic increase and contraction, interval increase and contraction, partition alignment |
| Laser type | LD Laser,405±5nm |
| File format | Gerber 274X；ODB++ |
| Power | 380V three-phase alternating current, 6.4kW,50HZ, voltage fluctuation range + 7% ~-10% |

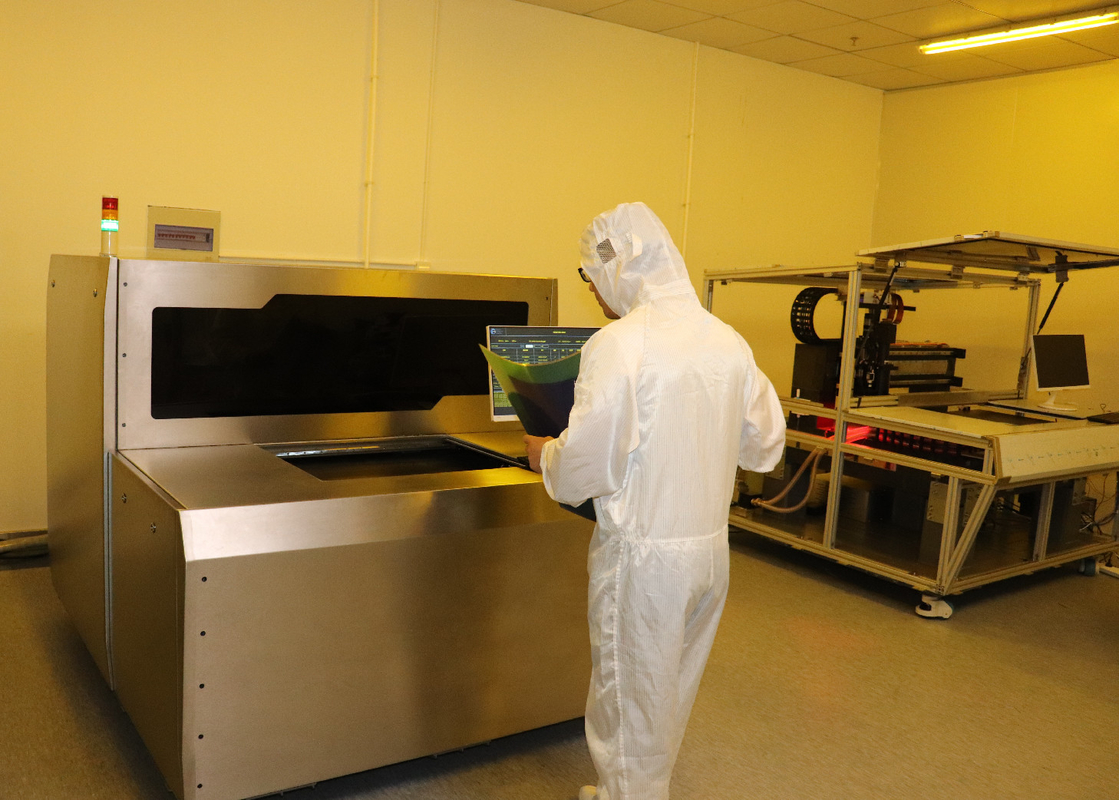

| Condition | Yellow light room; Temperature 22°C ± 1°C; Humidity 50% ± 5%; Cleanliness level 10000 and above; Vibration requirements to avoid violent vibration near the equipment |
About us
We are an innovative supplier of various PCB laser direct imaging (LDI) system solutions. Our system product portfolio ranges from LDI system configurations for high-mix and emerging PCB niche applications to fully automated LDI system solutions for mass production environments.
