Efficient Automatic Screen Exposing Machine CTS300 Model And Packaging Included

Product Details

Place of Origin: Suzhou, China

Brand Name: GIS

Model Number: CTS310

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:

Packaging Automatic Screen Exposing Machine

,

UV Laser Screen Exposing Machine

,

20W Pcb Exposure Machine

Imaging System:
DMD DLP Technology
Raster:
Up To 133LPI
File Format:
1_bit Tiff、Gerber Etc.
Equipment Net Weight:
3450KG
Specification / Model:
CTS300
Laser Power:
20W/25W/30W(Optional)
Exposure Time:
120-240s/ ㎡, #350 Yellow Mesh
Laser Type:
UV Laser, Wavelength 405±5nm
Imaging System:
DMD DLP Technology
Raster:
Up To 133LPI
File Format:
1_bit Tiff、Gerber Etc.
Equipment Net Weight:
3450KG
Specification / Model:
CTS300
Laser Power:
20W/25W/30W(Optional)
Exposure Time:
120-240s/ ㎡, #350 Yellow Mesh
Laser Type:
UV Laser, Wavelength 405±5nm
Product Description

Efficient Automatic Screen Exposing Machine CTS300 Model And Packaging Included

Product Description:

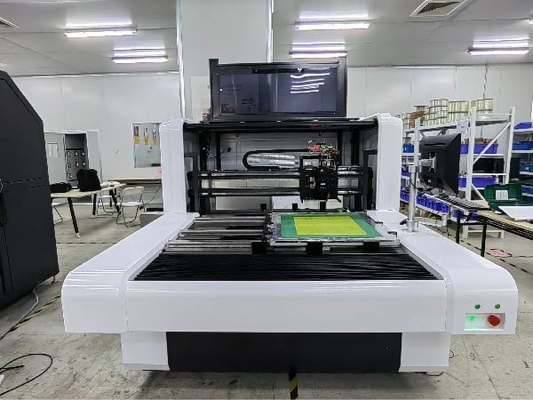

The Automatic Screen Exposing Machine is a highly advanced piece of equipment designed for high-precision industrial use. It is equipped with a UV laser with a wavelength of 405±5nm, and is capable of handling screen frames of thickness 25-45mm. This machine is powerful enough to handle a maximum screen size of 1200x1800 mm. The imaging system of this machine is based on the world-leading DMD DLP technology, with a raster up to 133LPI, ensuring high-resolution images. Additionally, the equipment net weight is suitable for easy installation and operation. Thanks to its illumination uniformity, the exposed screen will have even exposure across the entire frame. The maximum exposure size of this Automatic Screen Exposing Machine is 1200x1800 mm, making it ideal for large-scale industrial use.



Features:



  • Product Name: Automatic Screen Exposing Machine
  • Screen frame thickness: 25-45mm (Optional)
  • Application: Packaging, Label, Decal, Decoration, PCB, Etc
  • Equipment net weight: 3450KG
  • Max screen size ( mm ): 1200x1800
  • Min screen size ( mm ): 400x400
  • Conditions: Laser power



Technical Parameters:



Product Attributes Description
Equipment net weight 3450KG
Laser type UV Laser, Wavelength 405±5nm
Imaging System DMD DLP Technology
Raster Up To 133LPI
Laser power 20W/25W/30W(Optional)
File format 1_bit Tiff,Gerber Etc.
Exposure time 120-240s/ ㎡, #350 Yellow Mesh
Application Packaging, Label, Decal, Decoration, PCB, Etc
Specification / Model CTS300
Conditions Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)



Applications:



The GIS CTS310 Automatic Screen Exposing Machine is an effective solution for industrial-grade screen-printing applications. It is a high-precision, user-friendly machine with a number of advanced features that make it suitable for a variety of different requirements. It has a maximum resolution of 2000 dpi and repeat accuracy of ±0.03mm. It supports 1-bit TIFF and Gerber file formats. The machine has a UV laser source with a wavelength of 405±5nm, and its equipment size is 2950x1980x1710 mm. It is suitable for packaging, label production, decal printing, decoration, and PCB etching applications.



Customization:



Customized Automatic Screen Exposing Machine by GIS

Brand Name: GIS
Model Number: CTS310
Place of Origin: Suzhou, China
Emulsion thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm Max Screen Size ( Mm ) Applica�on Min Screen Size ( Mm ) Max Exposure Size ( Mm ) Screen Frame Thickness Imaging System Emulsion Thickness (EOM)

Product Features:
  • Max exposure size ( mm ): 1100x1250
  • Conditions: Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
  • Equipment size (mm): 2950x1980x1710
  • Specification/Model: CTS300
  • Power: AC 220V, 50/60Hz
  • Imaging System: High Precision LED



Support and Services:



Automatic Screen Exposing Machine Technical Support and Service

  • 24/7 online customer service
  • Free technical support
  • Free software updates and upgrades
  • Free replacement of parts and components
  • Free maintenance and troubleshooting
  • 1-year warranty



Packing and Shipping:



Packaging and Shipping for Automatic Screen Exposing Machine:

The Automatic Screen Exposing Machine should be shipped in protective packaging to ensure it arrives safely. The package should include the product and all its components, a packing slip, and instructions for use and installation. The package should be clearly labeled with the shipping address and a barcode for tracking.



FAQ:



Q1: What is the brand name and model number of Automatic Screen Exposing Machine?
A1: The brand name is GIS and the model number is CTS310.
Q2: Where is the Automatic Screen Exposing Machine produced?
A2: The Automatic Screen Exposing Machine is produced in Suzhou, China.
Q3: What is the purpose of Automatic Screen Exposing Machine?
A3: The Automatic Screen Exposing Machine is used for exposing screen printing film.
Q4: What features does the Automatic Screen Exposing Machine have?
A4: The Automatic Screen Exposing Machine has a large working surface, digital timer, adjustable vacuum, water-cooled vacuum pump, and a high-precision positioning system.
Q5: What is the power output of the Automatic Screen Exposing Machine?
A5: The Automatic Screen Exposing Machine has a power output of 220V/50Hz.
