| Brand Name: | GIS |
| Model Number: | CTS310 |

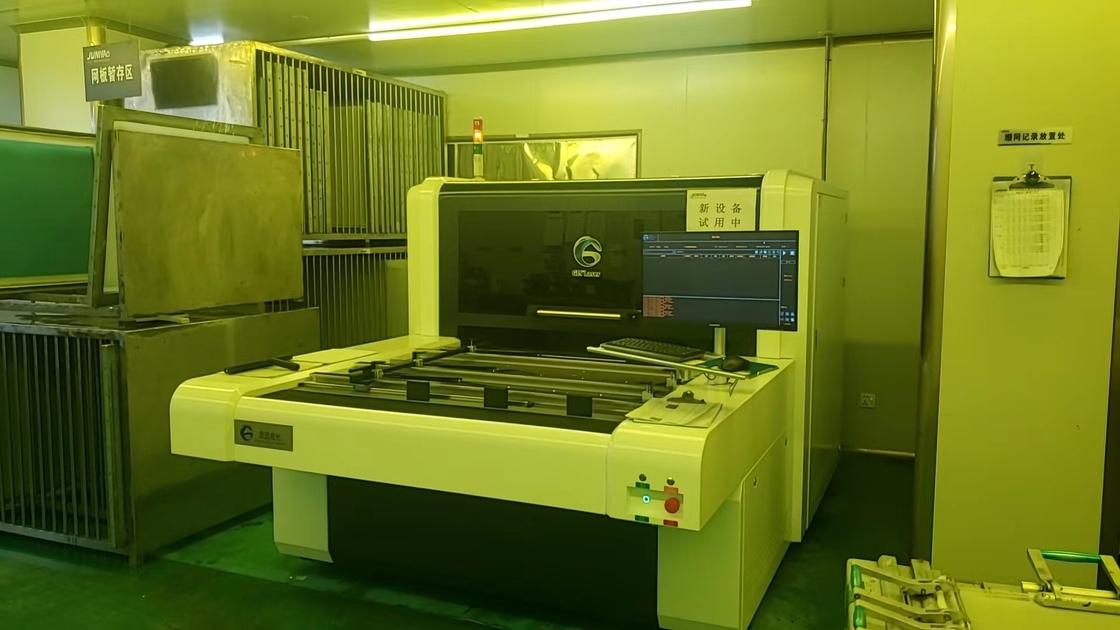

The Automatic Screen Exposing Machine CTS300 is a professional equipment for screen printing industry. It is equipped with UV laser of wavelength 405±5nm, and adopts DMD DLP Technology for imaging system. It can handle maximum exposure size of 1100x1250mm and file formats of 1_bit Tiff, Gerber etc. It is an ideal machine to meet the needs of different applications with its high power and small size (total equipment size is only 1240mm x 1000mm x 700mm).
| Parameters | Specification |
|---|---|
| Application | Packaging, Label, Decal, Decoration, PCB, Etc. |
| Imaging System | DMD DLP Technology |
| Min screen size ( mm ) | 400x400 |
| Conditions | Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
| File format | 1_bit Tiff,Gerber Etc. |
| Emulsion thickness (EOM) | Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
| Max screen size ( mm ) | Applica�on |
| Max Exposure Size ( Mm ) | Screen Frame Thickness |
| Equipment size (mm) | 2950x1980x1710 |
| Exposure time | 120-240s/ ㎡, #350 Yellow Mesh |
| Focus system | Dynamic Focusing |
| Raster | Up To 133LPI |
GIS CTS310 Automatic Screen Exposing Machine is an ideal choice for applications such as packaging, label, decal, decoration, PCB, etc. It is equipped with a top-notch laser power system and can expose any size of screen frames up to 1100x1250 mm. The emulsion thickness (EOM) is solvent resistant and water resistant with 3μm-150μm and 3μm-350μm respectively. The maximum screen size is maxed out at 1250 mm and the screen frame thickness is adjustable.
The machine is designed for use in a yellow light room with a cleanliness class of 10000 and the temperature is maintained at 22±2°C with a relative humidity of 40-70% (no condensation). It also features an imaging system with a high emulsion thickness (EOM). The equipment size is 2950x1980x1710 mm.
GIS CTS310 Automatic Screen Exposing Machine is the best solution for large-scale printing projects. It is a reliable, efficient, and cost-effective machine that can help to maximize productivity and minimize waste. It is suitable for any kind of printing application and can be used in a variety of conditions.
The Automatic Screen Exposing Machine comes with a comprehensive technical support and service program. Our dedicated team of professionals provides you with superior technical support and service, and strives to ensure that your equipment functions optimally. Our technical support and service includes:
To ensure your equipment is running optimally, our technical support and service team is available 24/7. We will address any questions or concerns you may have and get you back to work in no time.
The Automatic Screen Exposing Machine is packaged and shipped with the following materials:
The box should be securely sealed with the packing tape to ensure that the Automatic Screen Exposing Machine is safe during its journey.
