Product Description:

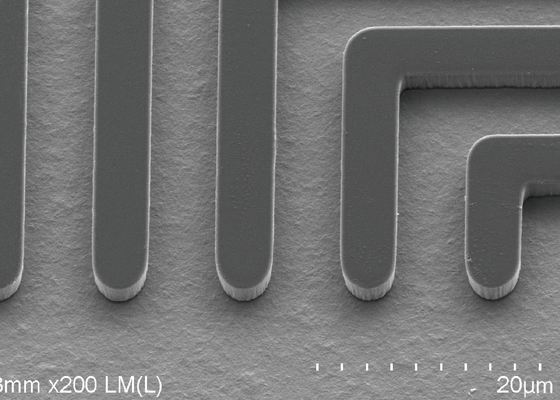

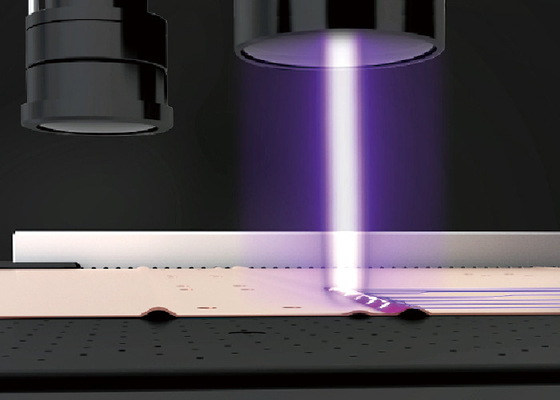

The LDI Imaging System is a revolutionary product designed to provide LDI Direct Printing and LDI Direct Imaging capabilities. It is ideal for applying graphics, lettering, and images to a variety of substrates, including inner, outer, and ceramic. The system boasts an inner alignment accuracy of 20μm and an outer alignment accuracy of ±10μm, making it a reliable choice for a range of applications. The technology raster is 25/25μm in terms of line width and line spacing, ensuring precision results. Additionally, the system supports a range of scale modes, including Fixed Scale, Auto Scale, Interval Scale, and Partition Alignment, making it customizable and versatile.

Features:

• Laser Print Equipment: Laser Direct Imaging Machine
• LDI Direct Imaging: Laser power: 405 Nm/25-50 W（optional）, File format: Gerber274x,odb++, Effective exposure area: 610mm*710mm, Board thickness: 0.05~7mm, Splicing: Support Full Table Splicing Exposure
• Laser Printing Device: Laser Direct Imaging Machine

Technical Parameters:

Applications:

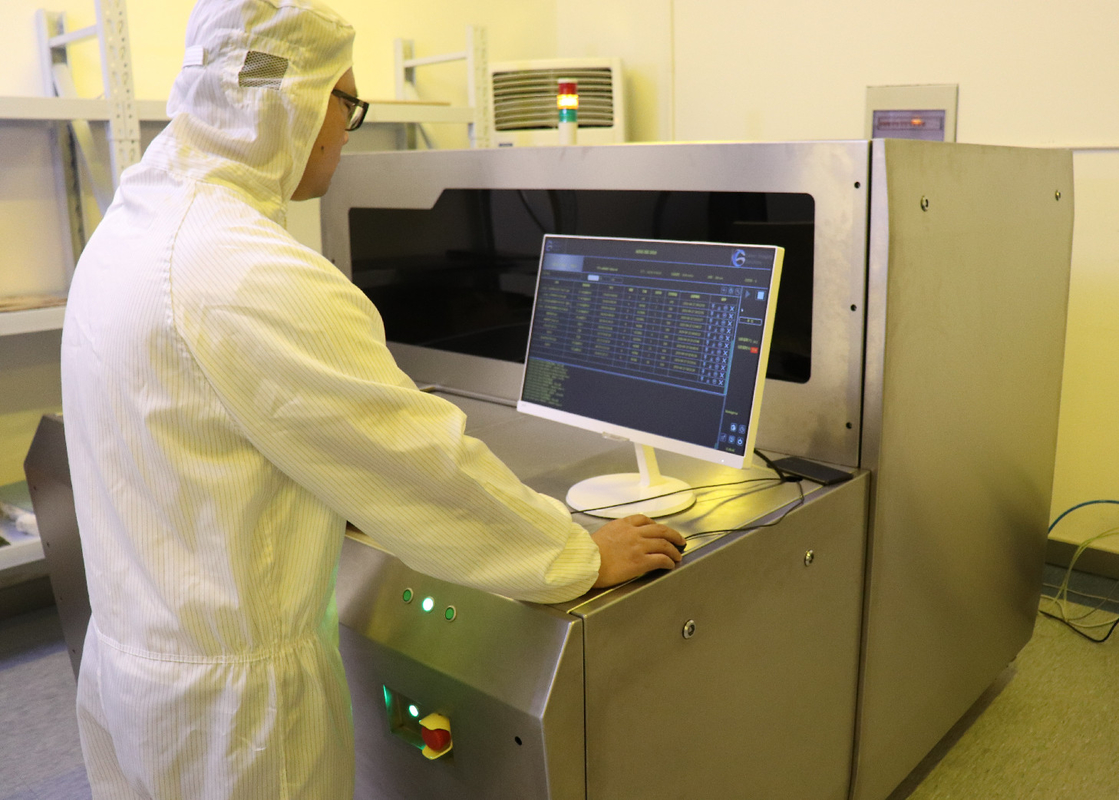

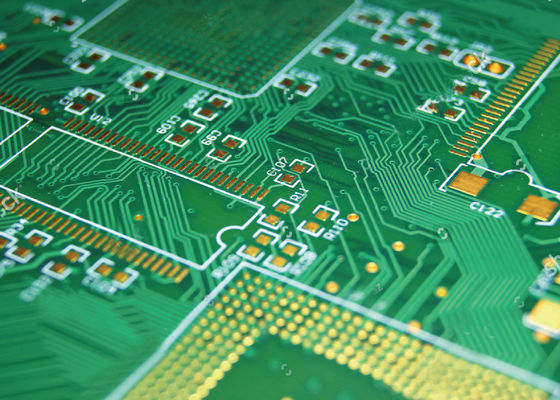

The GIS Laser DPX230 Laser Direct Imaging Machine is an advanced laser printing device with high sensing dry film of 35s@24 and inner alignment accuracy of 20μm. It provides superior performance for PCB, HDI and FPC, and is able to print on board thickness ranging from 0.05 up to 7mm. It features four scale modes, including Fixed Scale, Auto Scale, Interval Scale, and Partition Alignment, providing users with flexibility and convenience. This Laser Direct Printing Machine is suitable for a wide range of applications and is the perfect choice for those seeking superior quality and efficiency.

The GIS Laser DPX230 Laser Direct Imaging Machine is the ideal solution for those who need a reliable, efficient, and cost-effective printing device. It is easy to operate, with its intuitive user interface, and can quickly and accurately print on a variety of materials and thicknesses. By using the latest laser technology, it ensures sharp and precise prints, while providing a high level of safety and durability. The GIS Laser DPX230 Laser Direct Imaging Machine is an ideal choice for those who need a powerful and reliable printing solution.

Customization:

Brand Name: GIS Laser
Model Number: DPX230
Place of Origin: Suzhou, China
Features:

• Support The Board To Set Text And Serial Number And Other Traceable Information
• Effective exposure area: 610mm*710mm
• Applicable process: Inner, Outer, Ceramic Substrate
• Line width tolerance: ±10%
• Laser power: 405 Nm/25-50 W（optional）

GIS Laser DPX230 is a high-end Laser Direct Imaging Machine (LDI Imaging System) that provides superior laser imaging performance. With the DPX230, you can easily set text and serial numbers for traceability, and it can cover a large area of up to 610mm * 710mm. The line width tolerance is ±10%, and the laser power is 405 Nm/25-50 W (optional). It is applicable for inner, outer and ceramic substrate processes.
