| Brand Name: | GIS Laser |
| Model Number: | CTS1213V |

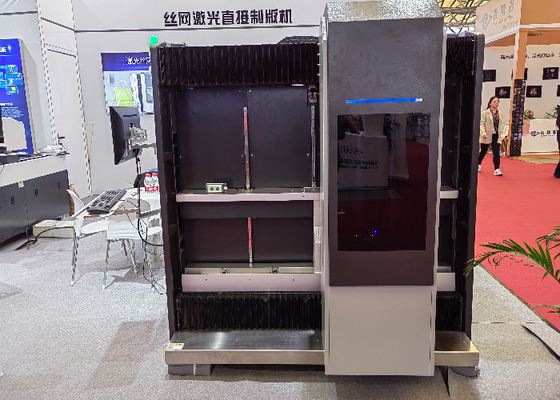

Introducing Computer To Screen , a high-tech product perfect for your printing needs. This advanced machine is equipped with a UV Laser with a wavelength of 405±5nm , making it suitable for a wide range of materials.
Computer To Screen is capable of handling various materials, including:
The max exposure size of this machine is 1100x1200mm , making it ideal for large-scale projects and ensuring high precision and accuracy.
Computer To Screen uses two types of emulsion - solvent resistant emulsion and water resistant emulsion. The EOM (Emulsion Thickness) for solvent resistant emulsion ranges from 3μm-150μm , while the water resistant emulsion can go up to 3μm-350μm . This ensures durability and quality for your prints.
The recommended exposure time for this machine is 120-240s/㎡ , using #350 yellow mesh . This guarantees efficient and consistent results, saving you time and effort.
| Technical Parameters | Values |
|---|---|
| Min screen size (mm) | 400x400mm/ 15.8x15.8 |
| Max screen size (mm) | 1200x1300mm |
| Screen frame thickness | 25-45mm (bespoke service is available) |
| Equipment net weight | 1400KG |
| Exposure time | 120-240s/㎡, #350 Yellow Mesh |
| Laser type | UV Laser, Wavelength 405±5nm |
| Conditions | Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
| Focus system | Auto Focusing |
| Raster | Up To 100LPI |
| Laser power | 20W/25W/30W (optional) |
Are you tired of traditional screen printing methods? Are you looking for a more efficient and precise way to create high-quality prints? Look no further than GIS Laser CTS1213V. This cutting-edge computer-to-screen product is revolutionizing the screen printing industry with its advanced technology and innovative features.
GIS Laser CTS1213V is designed for use in various screen printing applications, such as textile printing, graphic printing, and industrial printing. It is suitable for both small-scale and large-scale printing projects, making it the perfect choice for businesses of all sizes. This product is ideal for printing on a wide range of materials, including paper, fabric, plastic, and metal.
The GIS Laser CTS1213V is equipped with the latest technology and offers a range of features to meet the demands of modern screen printing. It supports 1_bit Tiff and Gerber 274x formats, making it compatible with most design software. The raster can go up to 100LPI, ensuring high-quality prints with sharp lines and vibrant colors. The maximum screen size is 1200x1300mm, providing ample space for large designs.
Developed and manufactured in Suzhou, China, GIS Laser CTS1213V is a product of superior quality and reliability. Suzhou is known for its advanced technology and high-quality manufacturing, making it the perfect location for producing this state-of-the-art computer-to-screen product.
One of the key features of GIS Laser CTS1213V is its auto focusing capability. This feature ensures precise and accurate placement of designs on the screen, eliminating the need for manual adjustments. This not only saves time but also ensures consistent and high-quality prints.
The equipment size of GIS Laser CTS1213V is 2000x1157x2200mm, making it compact and space-saving. It is designed to fit into any screen printing studio or workshop without taking up too much space. Its compact size also makes it easy to transport, making it convenient for on-site printing projects.
The minimum screen size supported by GIS Laser CTS1213V is 400x400mm, making it suitable for printing small designs and details. This ensures versatility in printing and allows for the creation of intricate and complex designs.
With its advanced technology, innovative features, and compact design, GIS Laser CTS1213V is the perfect solution for all your screen printing needs. Upgrade your printing process and achieve high-quality and precise prints with this top-of-the-line computer-to-screen product from GIS Laser.
Brand Name: GIS Laser
Model Number: CTS1213V
Place of Origin: Suzhou, China
Specification / Model: CTS1213V
Min screen size ( mm ): 1100x1200mm
Max screen size ( mm ): 1100x1200mm
Max exposure size ( mm ): 1100x1200mm
Exposure time: 120-240s/㎡
Raster: Up To 100LPI
Laser type: UV Laser
Wavelength: 405±5nm
Resolution: 1270dpi/2540dpi (Optional)
This product is carefully packaged to ensure safe delivery. It is wrapped in multiple layers of protective material and placed in a sturdy cardboard box. The box is sealed with tape and labeled with the product name and shipping information.
