Created with Pixso. 20W/25W/30W Laser Power Computer To Screen 1400KG Net Weight

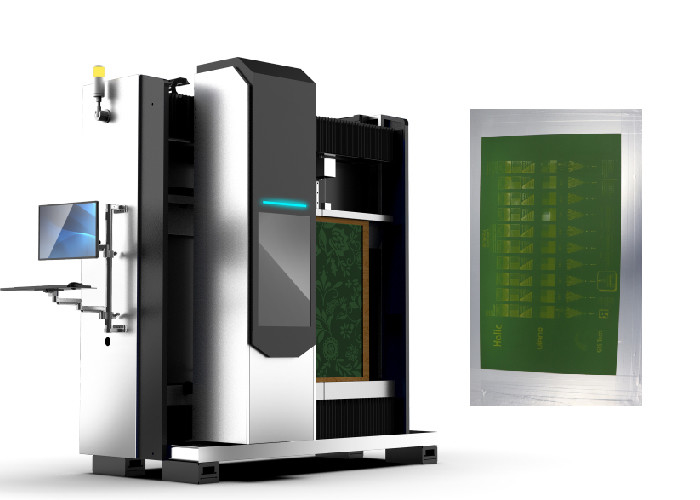

20W/25W/30W Laser Power Computer To Screen 1400KG Net Weight

Brand Name: GIS Laser
Model Number: CTS1213V
Detail Information
Place of Origin:
Suzhou, China
Application:
Textile, Decal, Label, Decoration, Packaging And PCB Etc.
Laser Power:
20W/25W/30W(Optional)
Power:
Single Phase 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Focus System:
Auto Focusing
Conditions:
Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Rela�ve Humidity (No Condensa�on)
Screen Frame Thickness:
25-45mm (bespoke Service Is Available)
Max Exposure Size ( Mm ):
1100x1200mm
Min Screen Size ( Mm ):
400x400mm/ 15.8x15.8
Highlight:

1400KG Weight Computer To Screen

,

30W Computer To Screen Equipment

,

CTS Imaging System 15.8x15.8

Product Description

Product Description:



Features:

  1. Product Name: Computer To Screen
  2. Specification / Model: CTS1213V
  3. Power: Single Phase 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
  4. Laser type: UV Laser, Wavelength 405±5nm
  5. Exposure time: 120-240s/㎡, #350 Yellow Mesh
  6. Max screen size ( mm ): 1200x1300mm


Technical Parameters:

Specification / Model Computer To Screen
Screen frame thickness 25-45mm (bespoke service is available)
Auto Focusing 1_bit Tiff/ Gerber 274x
Emulsion thickness (EOM) Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Exposure time 120-240s/㎡, #350 Yellow Mesh
Application Textile, Decal, Label, Decoration, Packaging and PCB etc.
Equipment size (mm) 2000x1157x2200
Min screen size (mm) 400x400mm/15.8x15.8
Raster Up to 100LPI
Laser type UV Laser, Wavelength 405±5nm
Equipment net weight 1400KG


Applications:

!

Customization:

GIS Laser CTS1213V Customized Service

Brand Name: GIS Laser

Model Number: CTS1213V

Place of Origin: Suzhou, China

Emulsion thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm

Min screen size (mm): 400x400mm/15.8x15.8

Laser power: 20W/25W/30W (Optional)

Raster: Up To 100LPI

Resolution: 1270dpi/2540dpi (Optional)

Max exposure size (mm): Customizable



Packing and Shipping:

Packaging and Shipping

Our product, Computer to Screen, is carefully packaged and shipped to you to ensure that it arrives in pristine condition. Here's how we do it:

Packaging

First, we start by using high-quality, durable materials to protect your product during transit. Our packaging is designed to withstand any bumps or jostles that may occur during shipping.

Next, we carefully pack each component of Computer to Screen, making sure that all items are securely placed and protected. This includes the main unit, cables, and any additional accessories.

Finally, we seal the package with strong tape and label it clearly with your shipping information.

Shipping

We offer fast and reliable shipping options for your convenience. Depending on your location, you can choose from standard or expedited shipping at checkout.

Once your order is processed, we will provide you with a tracking number so you can monitor the progress of your shipment. Our shipping partners are experienced and trusted, ensuring that your package arrives on time and in perfect condition.

Rest assured that we take every precaution to ensure your Computer to Screen arrives safely and promptly. Thank you for choosing our product.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is GIS Laser.
  • Q: What is the model number of this product?
    A: The model number of this product is CTS1213V.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Suzhou, China.
  • Q: What is the purpose of Computer To Screen (CTS)?
    A: CTS is used to transfer computer images onto a physical screen for display.
  • Q: What are the dimensions of this product?
    A: The dimensions of this product are not specified as it is customizable to fit different screen sizes.
