Product Description:

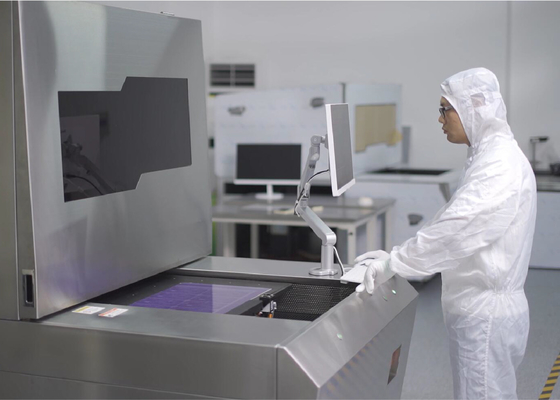

Laser Direct Imaging Machine

Advanced LDI Solutions from GIS Laser redefine industry standards through their innovative DPX220 laser digital imaging technology. This cutting-edge equipment, embracing DLP laser direct imaging, transcends traditional film or mask exposure methods, ensuring precision, stability, and efficiency unparalleled in the market.

Designed for a wide spectrum of applications including PCB, HDI, FPC, and even ceramic substrates, the DPX220 supports inner, outer layer, and ceramic substrate exposure with a substantial exposure area of 610mm x 710mm. Its versatility extends to processing thicknesses ranging from 0.05mm to 7mm, catering to diverse manufacturing needs.

Features:

• Product Name: Laser Direct Imaging Machine
• Inner alignment accuracy: 20μm
• File format: Gerber274x, odb++
• Text information: Support The Board To Set Text And Serial Number And Other Traceable Information
• Outer alignment accuracy: ±10μm
• Effective exposure area: 610mm*710mm
• Keywords: Laser Printing Device, LDI Direct Printing, Laser Direct Imaging Machine

Technical Parameters:

Customization:

• Brand Name: GIS Laser
• Model Number: DPX220
• Place of Origin: Suzhou, China
• Outer Alignment Accuracy: ±10μm
• Technology Raster: Line Width/ Line Spacing 20/20μm
• Effective Exposure Area: 610mm*710mm
• Line Width Tolerance: ±10%
• Text Information: Support The Board To Set Text And Serial Number And Other Traceable Information

GIS Laser's LDI Direct Printing Machine (Model: DPX220) is the perfect solution to your direct imaging needs. It offers high precision and accuracy of up to ±10μm and line width/line spacing of 20/20μm. The effective exposure area is 610mm*710mm and offers a line width tolerance of ±10%. It also supports the board to set text and serial number and other traceable information as needed. With GIS Laser's DPX230, you can get the perfect direct imaging solution that you need.

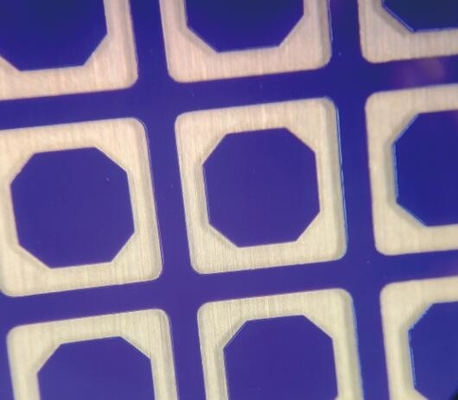

Boasting impressive specifications, the DPX220 achieves a lightning-fast exposure time of 35 seconds for dry files at 30mj/cm² on a 24"x18" scale, ensuring rapid turnaround. With L/S technology achieving a line width/line spacing of 20/20μm based on dry film, it ensures fine analytical quality and precision down to the micrometer level.

Precision is paramount, with alignment accuracies of ±10μm for outer layers and ±20μm for inner layers, achieved through the innovative UV-Mark method. Laser power is adjustable from 25W to 50W at 405nm, offering flexibility to tailor the process to specific requirements.

The DPX220 also features advanced scale modes, encompassing fixed scale, auto-scale, interval scale, and partition alignment, ensuring seamless integration into any production line. Its broad file format support, including Gerber274x and odb++, facilitates seamless data transfer and processing.

Revolutionizing traceability and management, the DPX220 incorporates MES functionality, allowing for board number setting, serial numbers, and other crucial traceable information to be seamlessly integrated into the production process.

GIS Laser's commitment to innovation is evident in the DPX220, with their 2021 achievement of developing China's first 20-micron roll-to-roll DLP lithography equipment. This milestone underscores their global leadership, with numerous core technologies reaching or surpassing international benchmarks. Their extensive patent portfolio, spanning China, the USA, Japan, Korea, and the EU, attests to their innovative prowess and unwavering dedication to excellence.

The DPX220 is not just a laser direct imaging device; it's a testament to GIS Laser's relentless pursuit of optimized technology, efficient industry solutions, and the future of laser digital imaging.

Support and Services:

Laser Direct Imaging Machine offers technical support and service to our customers. We provide on-site installation and maintenance service, as well as remote technical support over the phone. Our technicians can diagnose and troubleshoot any issues you may have with your machine. They can also provide technical advice and guidance to help you get the most out of your machine. We also offer periodic maintenance and calibration services to ensure that your machine is running optimally. If you ever have any questions or concerns, our technicians are always here to help.
