| Brand Name: | GIS Laser |
| Model Number: | CTS1010 |

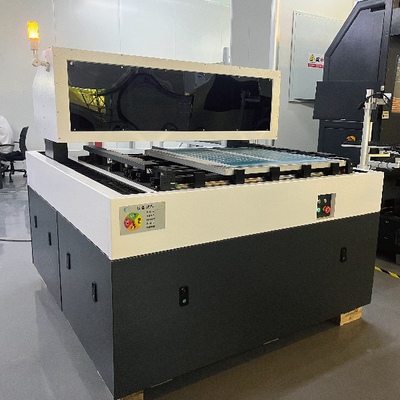

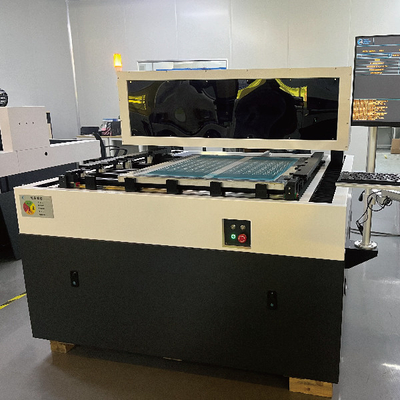

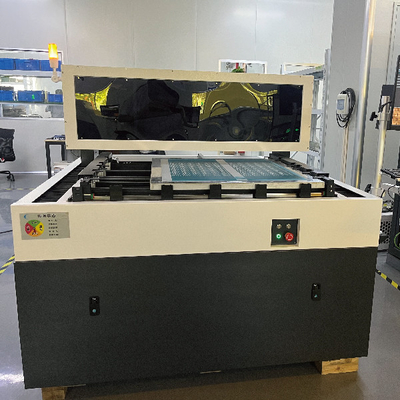

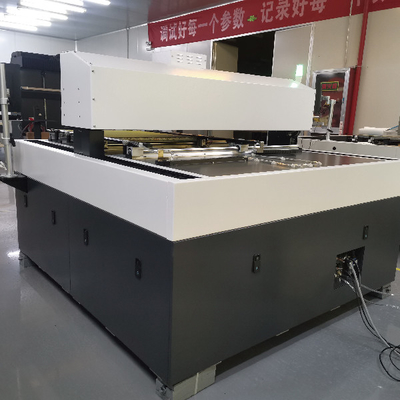

The CTS1010 laser direct imaging machine represents the cutting edge of screen printing technology, integrating Texas Instruments' (TI) innovative DMD (Digital Micromirror Device) digital imaging technology. This advanced system is designed to create precise, clear, and sharp direct network point images on silk screens via precise laser projection. By leveraging this state-of-the-art method, digital graphics stored in computers can be seamlessly transferred and imaged onto the screen, streamlining the screen-making process prior to silk screen printing.
The CTS1010 boasts a versatile screen size range, supporting a maximum screen dimension of 1000x1000mm (39.37"x39.37") with a minimum screen size capability of 400x60mm (15.75"x23.62"), ensuring compatibility with a wide variety of printing applications. Its screen frame thickness varies from 25 to 40mm (1" to 1.57"), allowing for customization to suit specific requirements. The imaging system leverages DMD DLP Technology, renowned for its exceptional image quality and reliability, ensuring accurate and consistent reproduction of intricate designs.
With an impressive resolution range reaching up to 127dpi/240ppi or even higher (vector optional), the CTS1010 offers unparalleled detail and clarity in screen images. It features an automatic focusing system that ensures optimal image sharpness, while supporting raster lines up to 133, enabling fine-grained control over the final output. The exposure time can be adjusted between 120 and 240 seconds, utilizing a #350 yellow mesh for enhanced precision.
Moreover, the machine's UV laser, operating within a wavelength range of 405±5nm, ensures precise and efficient ablation of the emulsion layer, with power levels selectable between 20W, 25W, and 30W to match specific processing needs. The equipment itself is compact yet robust, weighing 170kg and measuring 1740x1500x1500mm (68.5"x59.1"x59.1"), fitting easily into most production environments.
The CTS1010 is designed to operate in a controlled environment, specifically a yellow light room with a cleanliness level of Class 1000 and a temperature maintained at 22±2°C. This ensures optimal conditions for the delicate emulsion layers, ensuring their integrity and longevity. Furthermore, the machine supports a wide range of file formats, including 1-bit TIFF, Gerber, and PDF vector, facilitating seamless integration with existing design and production workflows.
In summary, the CTS1010 laser direct imaging machine represents the future of silk screen printing, offering unparalleled precision, versatility, and ease of use. With its cutting-edge technology and robust design, it is poised to revolutionize the screen-making process for silk screen printers worldwide.
| Resolution | 1270dpi/2540dpi (optional) |
| Laser power | 20W/25W/30W(optional) |
| Power | Single Phase, AC220v, 50/60HZ, 4KW, Compressed Air: 0.5mpa |
| Application | Textile, Decal, Label, Decoration, Packaging And PCB Etc. |
| Conditions | Yellow Light Room With Cleanliness Class 100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
| Focus system | Auto Focusing |
| Screen frame thickness | 25-40 Mm (bespoke Service Is Available) |
| Equipment size (mm) | 1740x1500x1500mm 68.5"x59.1"x59.1" |
| Laser type | UV405nm |
| File format | 1_bit off, Gerber Etc. |
| Min screen size (mm) | N/A |
| Max exposure size (mm) | N/A |
| Max screen size (mm) | N/A |
The product's minimum screen size is 400x400mm/ 15.8x15.8, while the maximum screen size is adjustable, depending on the customer's needs. This attribute makes it perfect for a wide range of applications, including printing, graphic design, textile printing, and many more. The product has become a popular choice in industries that require high-quality imaging systems.
The GIS Laser CTS1213 Computer To Screen product is perfect for small and large businesses that require high-quality imaging systems. The product is suitable for printing on various materials such as paper, plastic, and fabrics, making it versatile and cost-effective. The product's auto-focusing feature makes it easier for beginners to use, and it also saves time when compared to manual focusing.
The product is ideal for graphic designers, textile printing companies, and businesses that require high-quality printing. It is also perfect for companies that print on large materials, thanks to its adjustable maximum screen size. The product is easy to use, and it comes with a user manual that makes it easy for beginners to understand.
In conclusion, the GIS Laser CTS1213 Computer To Screen product is a reliable and versatile imaging system that has become a popular choice in various industries. Its adjustable maximum screen size, auto-focusing feature, and high-quality imaging system make it perfect for businesses that require high-quality printing. The product is easy to use, and it is suitable for both beginners and professionals. The product's place of origin is Suzhou, China, and it comes with a specification of CTS1213.
Our Computer To Screen product comes with comprehensive technical support and services to ensure that you have a seamless user experience:
We are committed to providing the highest level of support and services to our customers.
Product Packaging:
Shipping:
What is the brand name of this Computer To Screen product?
The brand name of this Computer To Screen product is GIS Laser.
What is the model number of this Computer To Screen product?
The model number of this Computer To Screen product is CTS1213.
Where is this Computer To Screen product manufactured?
This Computer To Screen product is manufactured in Suzhou, China.
What is the resolution of this Computer To Screen product?
The resolution of this Computer To Screen product is 3600 dpi.
What is the maximum exposure size of this Computer To Screen product?
The maximum exposure size of this Computer To Screen product is 1200 x 1300 mm.
