Product Details:
|
Name: | Computer To Screen | Application: | Textile |
---|---|---|---|
Resolution: | 2540dpi | Max Screen: | 900x1000 |
Highlight: | 1270 dpi CTS Computer To Screen,Textile CTS Computer To Screen,1000mm computer to screen machine |
High precision screen computer direct plate making system

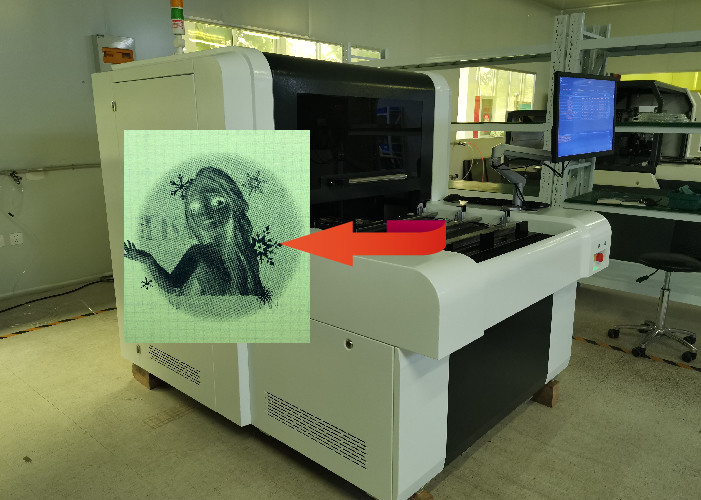

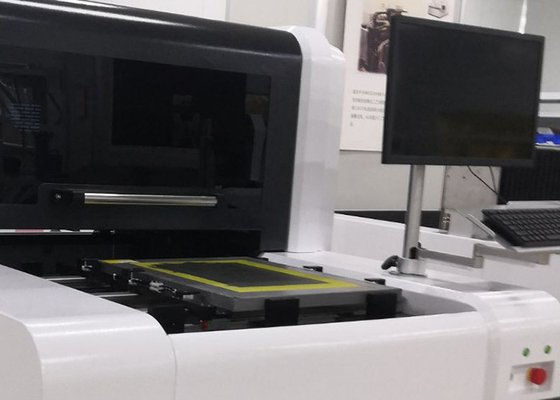

The laser direct exposure machine is an exposure system (CTS) that can image a computer image on a screen plate. The laser direct exposure machine includes a high-precision optical lens, a DMD imaging system, a 405-nanometer laser, a stable motion platform, a computer with an efficient software system, a monitor, and a stable water cooling system. This laser direct exposure machine can expose and image with high precision on the silk screen.

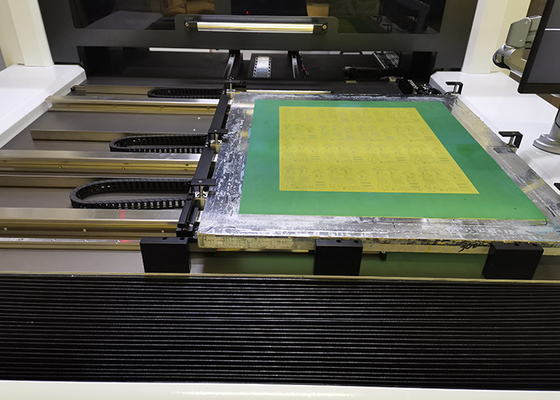

The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.
Specification / Model |
CTS100 |
Max screen size ( mm ) | 900x1000 |
Min screen size ( mm ) | 400x400 |
Max exposure size ( mm ) |
800x900 |
Screen frame thickness (bespoke service is available) |
25-45mm |
Imaging System | DMD DLP Technology |
Emulsion thickness (EOM) | Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 220μm |
Exposure time | 120-240s/ ㎡, #350 yellow mesh |
Resolution | 1270/2540dpi (Optional) |
Raster | 133LPI |
Focus system | Fixed focusing |
File format | 1_bit tiff etc. |
Laser type | UV laser, wavelength 405±5nm |
Laser power | 20W/25W(Optional) |
Equipment size (mm) | 1550x1330x1460 |
Equipment net weight | 1100KG |
Conditions | Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
Power | Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min |
