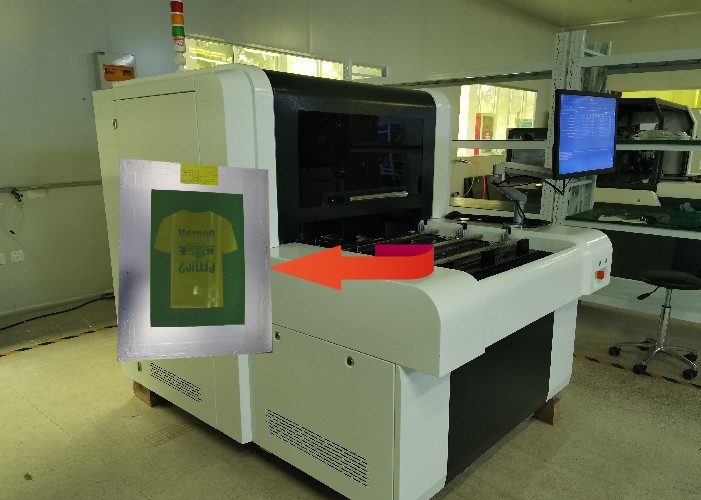

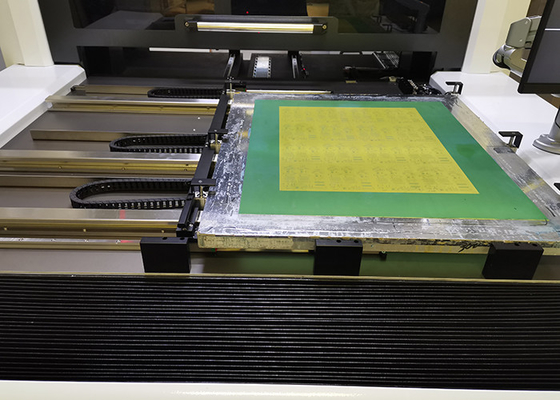

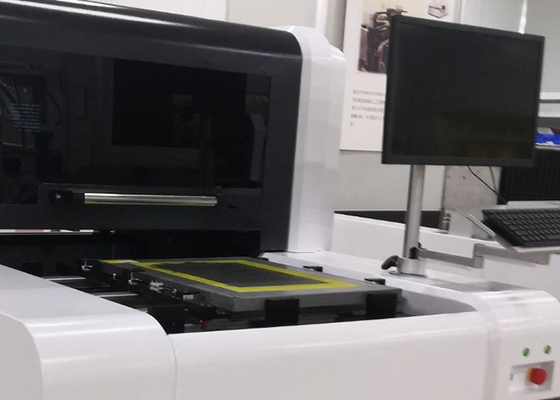

The laser direct exposure machine is an exposure system (CTS) that can image a computer image on a screen plate. The laser direct exposure machine includes a high-precision optical lens, a DMD imaging system, a 405-nanometer laser, a stable motion platform, a computer with an efficient software system, a monitor, and a stable water cooling system. This laser direct exposure machine can expose and image with high precision on the silk screen.

Simple and simple laser direct plate making system-CTS laser direct plate making system and traditional silk screen plate making complete process, can directly read the format of 1-bit tiff data files, convert them into images and use laser head projection for exposure imaging, fine craftsmanship and traditional craftsmanship are complete Production, suitable for printing, decals, packaging, PCB, labels and signs, automotive glass, home appliance glass, electronic glass, decoration and other screen printing industries.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min
