Fast High Resolution Simultaneous Imaging Exposure For Textile Printing

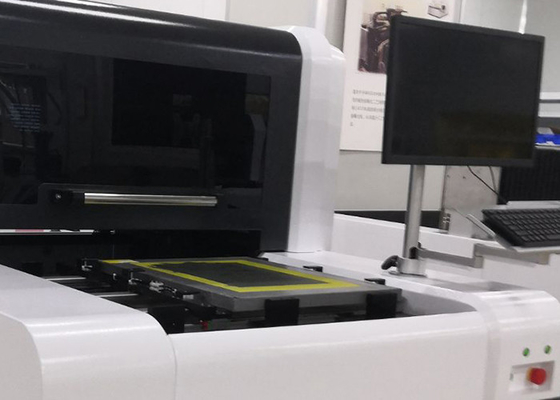

Max Screen Size 900*1000 Computer To Screen machine

CTS laser direct plate making machine is to directly read computer data files and convert them into images, and then expose and image them on the screen by laser projection. This kind of imaging screen is suitable for textile printing, and also suitable for decals, packaging, PCB, 3C Printing on glass covers, etc.

Our customer-oriented working principle strives to provide customers with professional CTS solutions. What we buy is not only computer to screen (CTS) equipment, but also integrated professional solutions and services to meet customer needs.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min
