Laser Direct Screen Imaging Equipment For Screen Printing Textile

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.Data files is directly read by the CTS and then convented into images which will be transmitted through laser beams onto screens by DMD and lens.

Digital images are produced by DMD (digital micro-mirror device) which has over 800 thousand or 2 million micrometer micro-mirrors, enabling clear and sharp squre dots. This latest digital exposure system has now become the new standards for screen printing industry.

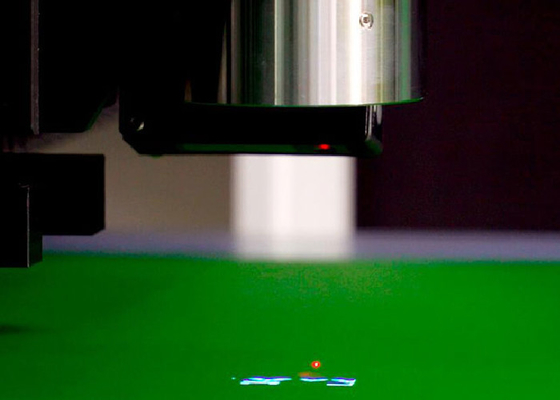

Data files is directly read by the computer to screen (CTS) and then converted into images which will be transmitted through laser beams onto screens by DMD and lens.

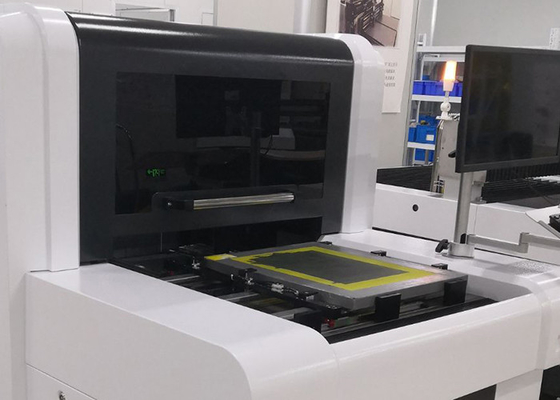

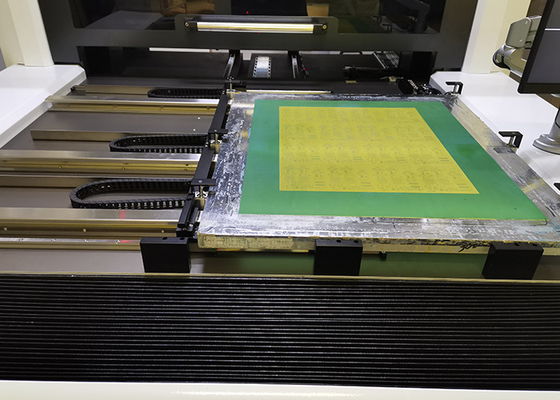

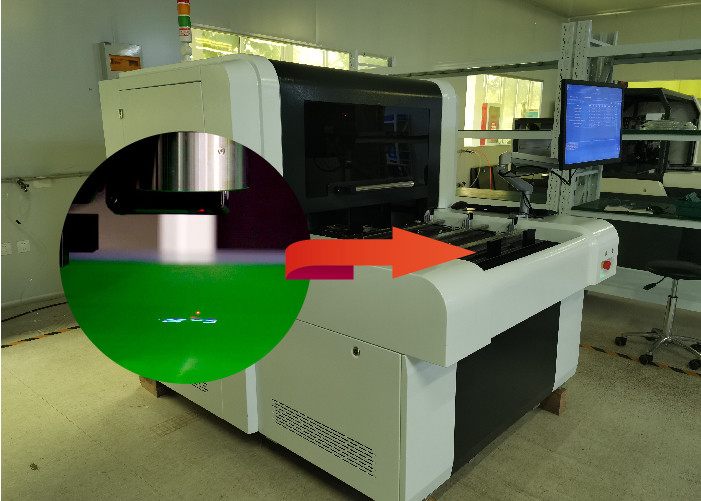

CTS laser direct plate making machine is to directly read computer data files and convert them into images, and then expose and image them on the screen by laser projection. This kind of imaging screen is suitable for textile printing, and also suitable for decals, packaging, PCB, 3C Printing on glass covers, etc.

• Specification / Model	CTS100
  Max screen size ( mm )	100x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	900x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W/30W(Optional)
  Equipment size (mm)	1740x1500x1500
  Equipment net weight	1200KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4kW, Compressed air:0.5MPa

• High Precision:

          Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing).

• High Efficiency:

         3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time             is saved by the accurate exposure alignment and lobor reduction.

• Low Cost:

          Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly

          decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process.
