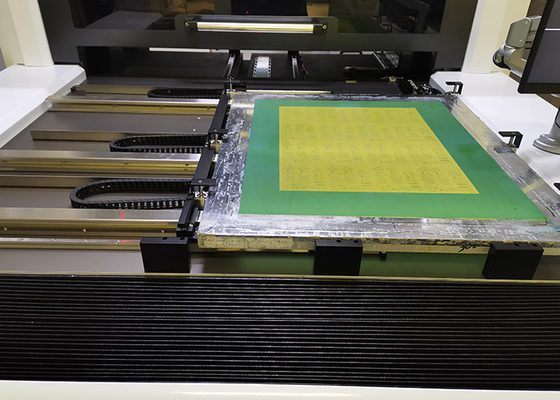

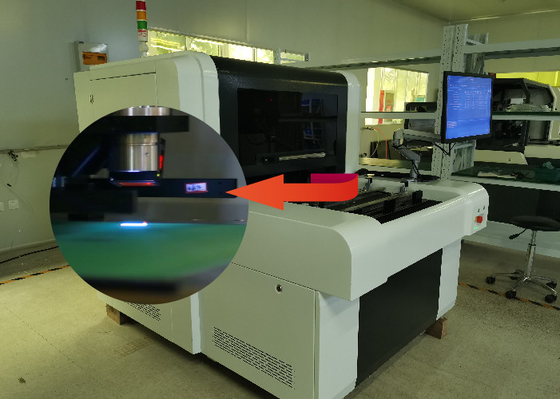

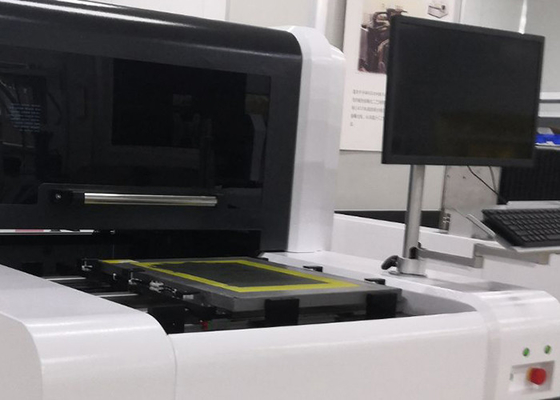

Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min



• High Resolution

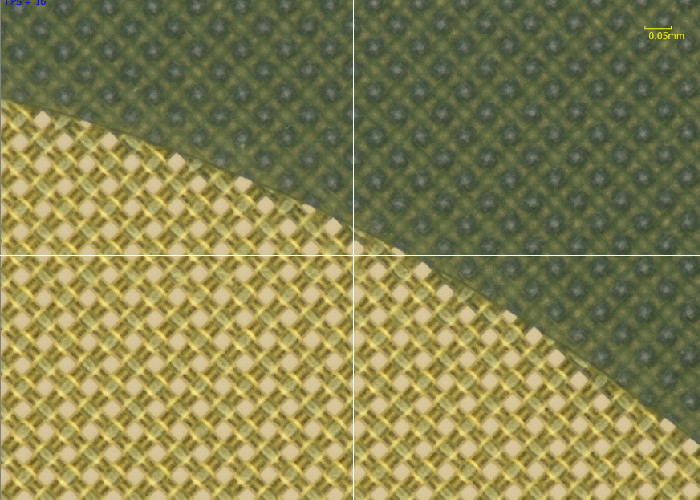

It is easy and fast to achieve raster 133LPI and high quality screen dots by the optical 1270dpi, while with the opitcal 2540dpi, high definition curved lines and perfect FM screen dots can be realized.

                                                               2540DPI
