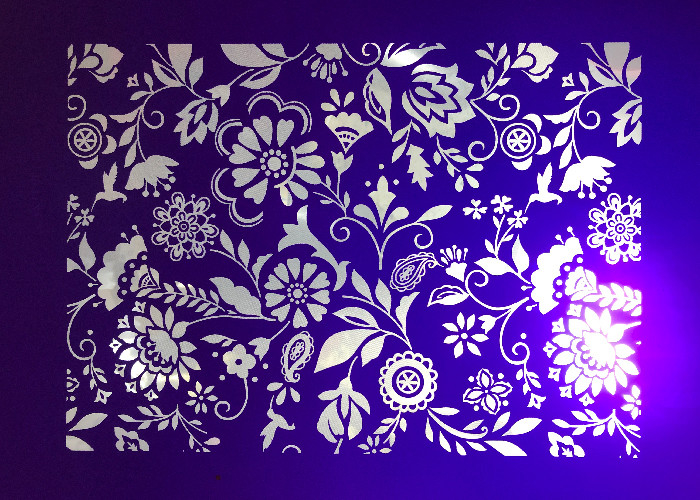

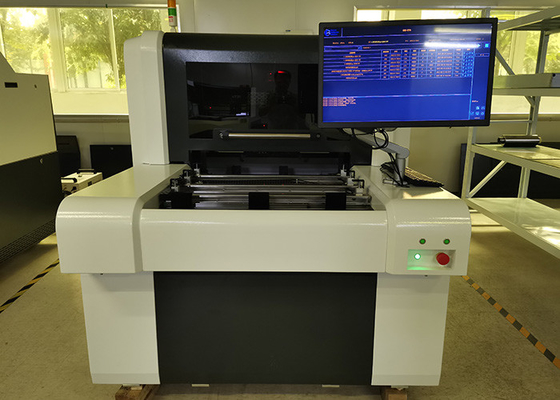

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU student patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.

CTS images are superior to traditional film positives, providing more detail and smoother halftone transitions. Dimensional accuracy, the error is less than one ten thousandth. All images do not require expensive film, nor do they require the space and labor required to store and retrieve them. Because the image information is digitized, it is easy to store and quickly retrieve.

The CTS exposure system simplifies the work process and improves productivity, providing fast and excellent screen exposure with exponentially reduced energy costs, and CTS consumes much less energy. CTS temperature control adaptive technology, save energy costs, reduce screen exposure time and speed up production. It only takes 3 minutes to expose each square meter of the screen, with precise alignment and less labor.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min
