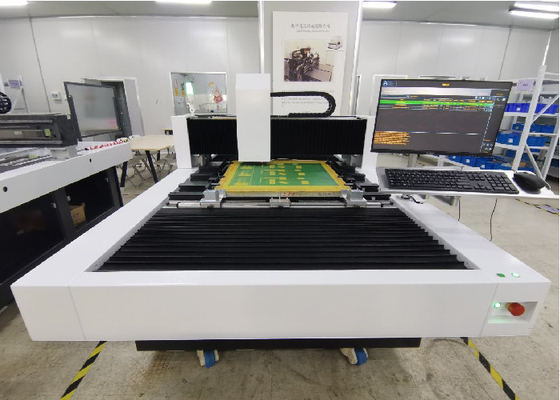

900x1000mm Computer To Screen Exposing Machine Textile 1270dpi

Max Screen Size 1000*1100 Computer To Screen CTS For Textile Laser Direct Exposure Machine

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU student patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.

Our customer-oriented working principle strives to provide customers with professional CTS solutions. What we buy is not only computer to screen (CTS) equipment, but also integrated professional solutions and services to meet customer needs.

GIS Tech Inc.

GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.

• Specification / Model	CTS200
  Max screen size ( mm )	1000x1100
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min
