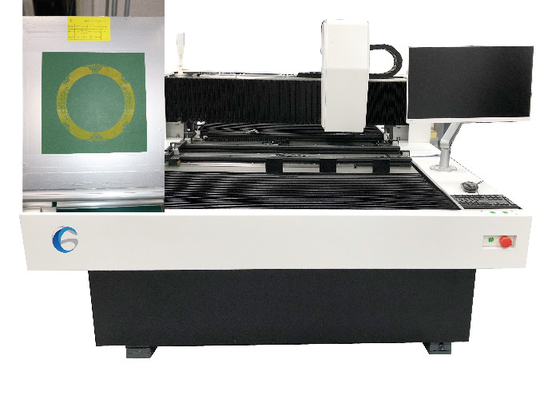

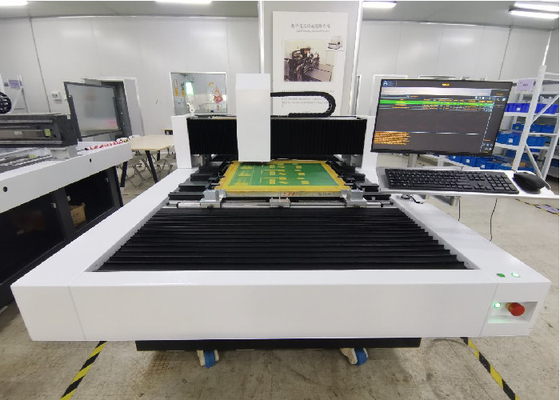

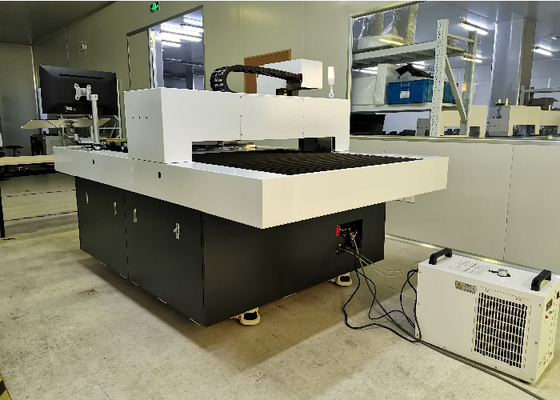

1270dpi CTS Screen Printing Exposure Machine 900x1000mm

Max Screen Size 1000*1100 Computer To Screen CTS For Textile Laser Direct Exposure Machine

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.

The exposure resolution of CTS on the screen (1270dpi) or 2540dpi, screen 133 lines. The efficiency of plate making is improved,

It only takes 3 minutes to expose a 1 square meter screen. Accurate exposure alignment saves printing preparation time and reduces labor

low cost. Because no film is required, it prevents the film from wearing and shrinking instability and causing quality problems. At the same time, the price of the film is higher, which saves a lot of cost. CTS laser direct plate making shortens the three steps of the traditional work exposure process into one step of the CTS work process to achieve the purpose of rapid plate making.

GIS Tech Inc.

GIS Tech is the pioneer in introducing the DLP Technology into the laser imaging applications, owning the whole independent intellectual properties in the technologies of data processing, data transmission, sub-graph, electronic control, board card control, laser and optical lens etc. Our main products are CTS series (Computer to Screen system), CTP (Computer to Plate system) and fully automatic printing plate developing system.

• Specification / Model	CTS200
  Max screen size ( mm )	1000x1100
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min
