Computer To Screen Exposing Machine
Created with Pixso. Automatic Adjusting CTS Machine 1200mmx1300mm 2540dpi

Automatic Adjusting CTS Machine 1200mmx1300mm 2540dpi

Brand Name: GIS
Model Number: CTS300
MOQ: 1 set
Price: negotiable price
Delivery Time: 20 work days
Detail Information
Place of Origin:
Jiangsu, China
Certification:
ISO 9001
Name:
Computer To Screen
Application:
Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc.
Resolution:
2540dpi
Max Screen:
1200mm*1300mm
Raster:
133LPI
Screen Frame Thickness(bespoke Service Is Available):
25-45mm
Laser Power:
20W/25W(Optional)
Automatic Intelligent Expansion And Shrinkage Function:
Yes
Packaging Details:
wooden case packing
Supply Ability:
30set per month
Highlight:

Automatic cts machine

,

1200mm cts machine

,

2540dpi screen exposing machine

Product Description

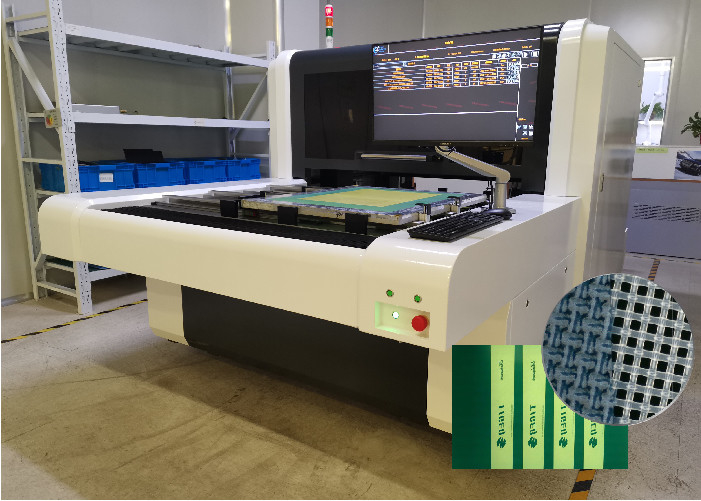

1200mm*1300mm Computer To Screen Exposing Machine 2540DPI Automatic Adjusting



Computer-to-screen (CTS)

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.



Automatic intelligent expansion and shrinkage function.

After paper printing, it exists the expansion and shrinkage situation. So the traditional way can only be done by the tedious manual film cutting. This way is time-consuming and no accuracy. AI latest expansion and shrinkage function, it can measure the size of paper expansion and shrinkage first , calculate deformation, and achieve the high-precision and fast problem solving.



 Specification / Model

  CTS300

  Max screen size ( mm )

  1200x1300

  Min screen size ( mm )

  400x400

  Max exposure size ( mm )

  1100x1250

  Screen frame thickness

  (bespoke service is available)

  25-45mm

  Imaging System

  DMD DLP Technology

  Emulsion thickness (EOM)

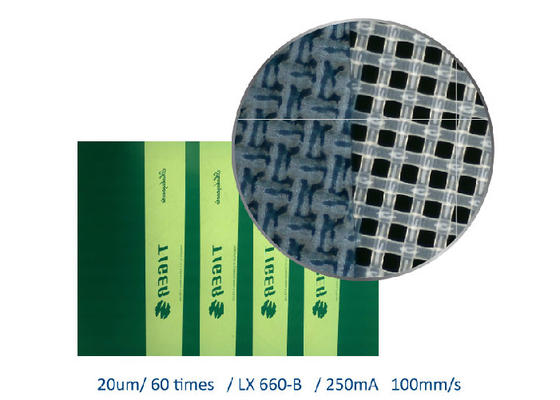

  Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm

  Exposure time

  120-240s/ ㎡, #350 yellow mesh

  Resolution

  2540dpi (Optional)

  Raster

  133LPI

  Focus system

  Fixed focusing

Automatic intelligent expansion and shrinkage   Yes

  File format

  1_bit tiff etc.

  Laser type

  UV laser, wavelength 405±5nm

  Laser power

  20W/25W(Optional)

  Equipment size (mm)

  3270x1900x1600

  Equipment net weight

  2600KG

  Conditions

  Yellow light room with cleanliness Class 10000, temperature 22±2°C,

  40-70% relative humidity (No condensation)

  Power

  Single phase 220v, 50/60HZ, 4KW, gas 1L/min

                                                                                                                               *Specifications subject to change without notice





CTS Advantages

High Precision:

Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)



High Efficiency:

3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:

Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process



High equipment quality:

The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.
