1200mmx1300mm CTS Computer To Screen Automatic Adjusting

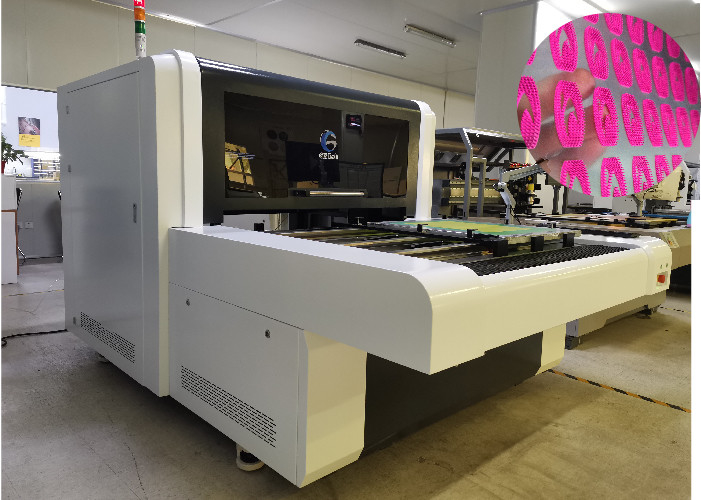

Computer To Screen Exposing Machine 2540DPI 1200mm*1300mm Automatic Adjusting

Computer-to-screen (CTS)

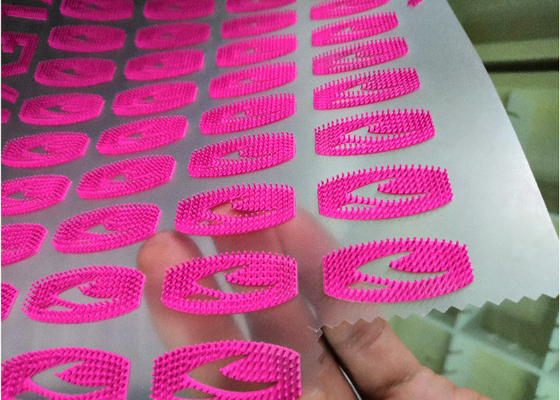

CTS laser direct plate making machine is to directly read computer data files and convert them into images, and then expose and image them on the screen by laser projection. This kind of imaging screen is suitable for textile printing, and also suitable for decals, packaging, PCB, 3C Printing on glass covers, etc.

What is automatic expanding and shrinking?

One of the common problems is the inaccurate color registration caused by the mismatch of the marks of the two printing methods. There are many reasons for this, including the humidity change and expansion of the paper, so the relative distance between the graphics (between the actual and the original) changes, and the existing screen printing plate making size is still made according to the original drawing size, so it is difficult to register.

GIS automatically adjusts the size of screen printing pattern, which can minimize loss and improve efficiency.

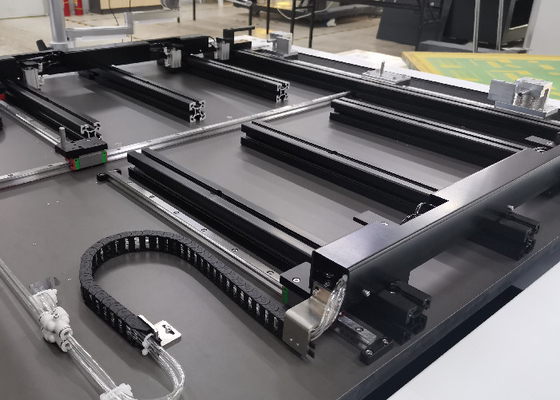

Therefore, our company creatively carries out vacuum adsorption and positioning scanning on the actual deformation of printed matter on the same equipment, and then adaptively makes it laser screen making according to the actual changes through the special software algorithm system, because positioning scanning and laser screen making on the same equipment make the offset printing and silk screen printing process realize perfect overprint.

                                                                                                       *Specifications subject to change without notice

CTS Advantages

High Precision:

Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:

3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.

Low Cost:

Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process

High equipment quality:

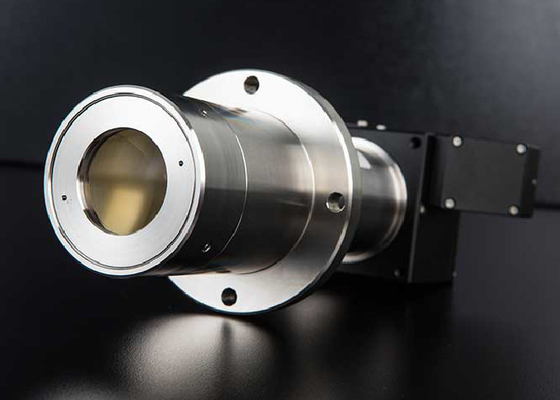

The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.
