Product Details
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month
Name: |
Computer To Screen |
Application: |
Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc. |
Resolution: |
2540dpi |
Max Screen: |
1200mm*1300mm |
Raster: |
133LPI |
Screen Frame Thickness(bespoke Service Is Available): |
25-45mm |
Laser Power: |
20W/25W(Optional) |
Automatic Intelligent Expansion And Shrinkage Function: |
Yes |
Name: |
Computer To Screen |
Application: |
Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc. |
Resolution: |
2540dpi |
Max Screen: |
1200mm*1300mm |
Raster: |
133LPI |
Screen Frame Thickness(bespoke Service Is Available): |
25-45mm |
Laser Power: |
20W/25W(Optional) |
Automatic Intelligent Expansion And Shrinkage Function: |
Yes |

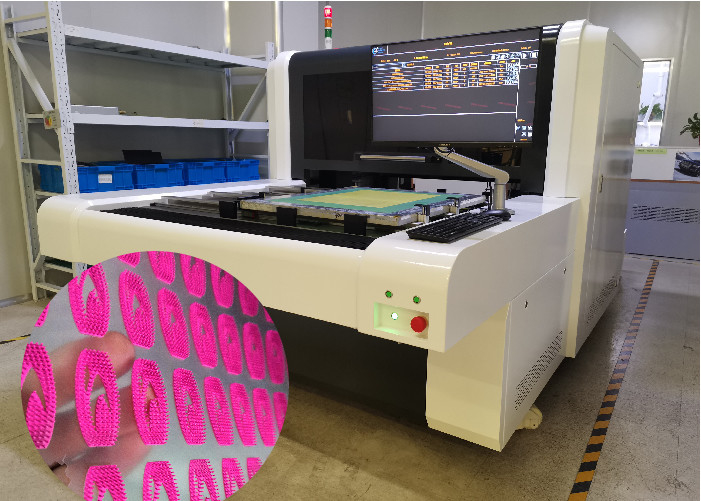

Computer To Screen Exposing Machine 2540DPI Automatic Adjusting High precision
Computer-to-screen (CTS)
CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.
Automatic intelligent expansion and shrinkage function.
After paper printing, it exists the expansion and shrinkage situation. So the traditional way can only be done by the tedious manual film cutting. This way is time-consuming and no accuracy. AI latest expansion and shrinkage function, it can measure the size of paper expansion and shrinkage first , calculate deformation, and achieve the high-precision and fast problem solving.
|
Specification / Model |
CTS300 |
|
Max screen size ( mm ) |
1200x1300 |
|
Min screen size ( mm ) |
400x400 |
|
Max exposure size ( mm ) |
1100x1250 |
|
Screen frame thickness (bespoke service is available) |
25-45mm |
|
Imaging System |
DMD DLP Technology |
|
Emulsion thickness (EOM) |
Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 350μm |
|
Exposure time |
120-240s/ ㎡, #350 yellow mesh |
|
Resolution |
2540dpi (Optional) |
|
Raster |
133LPI |
|
Focus system |
Fixed focusing |
| Automatic intelligent expansion and shrinkage | Yes |
|
File format |
1_bit tiff etc. |
|
Laser type |
UV laser, wavelength 405±5nm |
|
Laser power |
20W/25W(Optional) |
|
Equipment size (mm) |
3270x1900x1600 |
|
Equipment net weight |
2600KG |
|
Conditions |
Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
|
Power |
Single phase 220v, 50/60HZ, 4KW, gas 1L/min |
*Specifications subject to change without notice
About US
GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.
