Jiangsu GIS Laser Technologies Inc., fannie.tian@gis-group.com.cn 86--13625276829
Product Details
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month
Name: |
Computer To Screen |
Application: |
Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc. |
Resolution: |
2540dpi |
Max Screen: |
1200mm*1300mm |
Raster: |
133LPI |
Equipment Size: |
3270*1900*1600mm |
Emulsion Thickness: |
3-350μm |
Laser Type: |
UV Laser Wavelength 405±5nm |
Max Exposure Size: |
1100mm*1250mm |
Imaging System: |
DMD DLP Technology |
Emulsion Thickness (EOM): |
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-.350μm |
Focus System: |
Dynamic Focusing |
File Format: |
1_bit Tiff Etc. |
Laser Power: |
20W/25W(Optional) |
Equipment Size: |
2950*1980*1710mm |
Conditions: |
Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
Power: |
Single Phase 220v, 50/60HZ, 4KW(CTS200,CTS300), 5KW(CTS500,CTS700), Gas 1L/min |
Automatic Intelligent Expansion And Shrinkage Function: |
Yes |
Name: |
Computer To Screen |
Application: |
Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc. |
Resolution: |
2540dpi |
Max Screen: |
1200mm*1300mm |
Raster: |
133LPI |
Equipment Size: |
3270*1900*1600mm |
Emulsion Thickness: |
3-350μm |
Laser Type: |
UV Laser Wavelength 405±5nm |
Max Exposure Size: |
1100mm*1250mm |
Imaging System: |
DMD DLP Technology |
Emulsion Thickness (EOM): |
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-.350μm |
Focus System: |
Dynamic Focusing |
File Format: |
1_bit Tiff Etc. |
Laser Power: |
20W/25W(Optional) |
Equipment Size: |
2950*1980*1710mm |
Conditions: |
Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
Power: |
Single Phase 220v, 50/60HZ, 4KW(CTS200,CTS300), 5KW(CTS500,CTS700), Gas 1L/min |
Automatic Intelligent Expansion And Shrinkage Function: |
Yes |

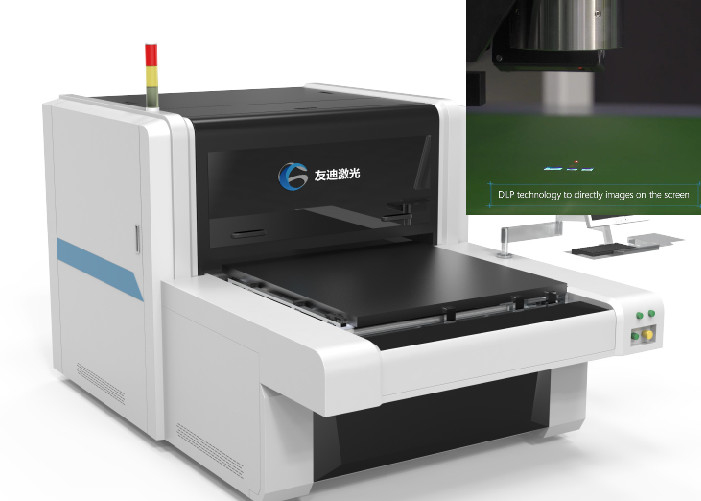

Computer To Screen Exposing Machine 2540DPI 1200mm*1300mm Automatic Adjusting
Computer-to-screen (CTS)

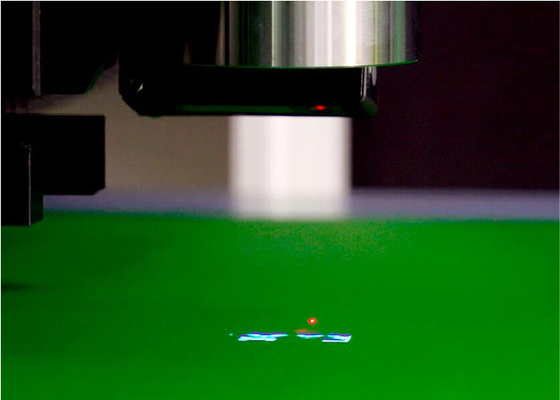

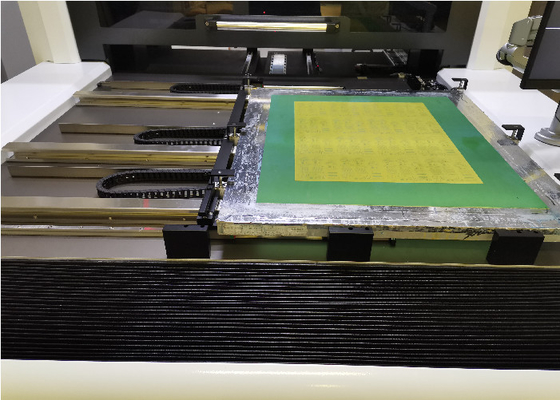

Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen.
What is automatic expanding and shrinking?
In view of the special effect of printing paper with screen, traditional films need to be edited for printing down due to deformation after printing paper, resulting in manual work waste and precision loss. CTS300-AI uses CCD industrial camera to capture paper data, calculate paper deformation data through powerful computing ability while automatically expand and shrink the graph according to the paper deformation data, so that the graph on the screen accurately aligns the deformed paper, thereby eliminating the distress of editing film.
|
Specification / Model |
CTS300 |
|
Max screen size ( mm ) |
1200x1300 |
|
Min screen size ( mm ) |
400x400 |
|
Max exposure size ( mm ) |
1100x1250 |
|
Screen frame thickness (bespoke service is available) |
25-45mm |
|
Imaging System |
DMD DLP Technology |
|
Emulsion thickness (EOM) |
Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 350μm |
|
Exposure time |
120-240s/ ㎡, #350 yellow mesh |
|
Resolution |
2540dpi (Optional) |
|
Raster |
133LPI |
|
Focus system |
Fixed focusing |
|
File format |
1_bit tiff etc. |
|
Laser type |
UV laser, wavelength 405±5nm |
|
Laser power |
20W/25W(Optional) |
|
Equipment size (mm) |
3270x1900x1600 |
|
Equipment net weight |
2600KG |
|
Conditions |
Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
|
Power |
Single phase 220v, 50/60HZ, 4KW, gas 1L/min |
*Specifications subject to change without notice
About US
GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.
