Product Details
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001 CE
Model Number: DPX230
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month
Name: |
Laser Direct Imaging (LDI) |
Application: |
PCB HDI FPC |
Exposure Size Max: |
610*710mm |
Line Width: |
30μ |
Line Line Distance: |
10% |
Line Width Tolerance: |
10% |
Alignment Capability: |
24μm |
Laser Type: |
LD Laser, 405±5nm |
Efficient: |
30-40S@18"*24" |
Deviation Increase And Decrease: |
Fixed Increase And Contracton, Automatic Increase And Contraction, Interval Increase And Contraction, Partition Alignment |
File Format: |
Gerber 274X, ODB++ |
Name: |
Laser Direct Imaging (LDI) |
Application: |
PCB HDI FPC |
Exposure Size Max: |
610*710mm |
Line Width: |
30μ |
Line Line Distance: |
10% |
Line Width Tolerance: |
10% |
Alignment Capability: |
24μm |
Laser Type: |
LD Laser, 405±5nm |
Efficient: |
30-40S@18"*24" |
Deviation Increase And Decrease: |
Fixed Increase And Contracton, Automatic Increase And Contraction, Interval Increase And Contraction, Partition Alignment |
File Format: |
Gerber 274X, ODB++ |

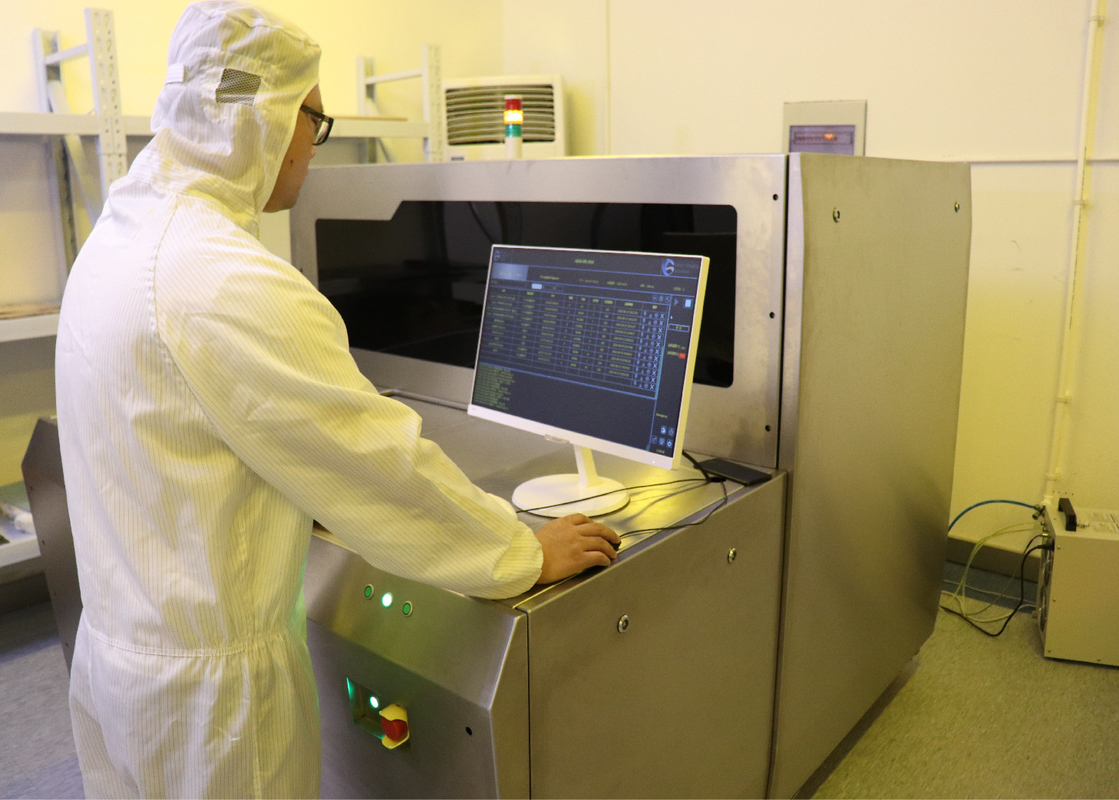

laser direct imaging (LDI) system solutions for various PCB
Function:
Multiple options for expansion
and contraction function
1. automatic expansion and contraction function
2. fixed expansion function:
Exposure based on the fixed expansion values provided
3. measurement function:
The actual measurement of the plate select the actual plate expansion value for exposure
Job description: can set the number of plates to be measured, after measuring the plate to take
The average value is exposed.
Super-long optical focal depth and light
source power monitoring function:
Ultra-long focal depth ±300μm;
Real-time monitoring and dynamic adjustment of laser energy during work
Tracing back
Serial number| Running number | expansion and contraction value | Date | Time | Bar code | QR code |
LDI Process: total 5 minutes (CAM Data Output & Ready Print).
· No more mask concerns
· High yield and throughput
· Flexible irregular substrat
How does laser direct imaging ( LDI ) work?
Laser direct imaging needs a PCB with the photo-sensitive surface that is positioned under a computer controlled laser. And then the computer is creating the image on the board with the light of laser. A computer scans the board surface into a raster image, matching the raster image to a pre-loaded CAD or CAM design file that includes the specifications for the necessary image intended for the board, the laser is used for directly creating the image on the board.
| Specification/model | DPX230 |
| Application | PCB,HDI,FPC (inner layer,outer layer,anti-welding) |
| Resolution (mass production) | 30um |
| Capacity | 30-40S@18"*24" |
| Exposure Size | 610*710mm |
| Panel thickness | 0.05mm-3.5mm |
| Alignment Mode | UV-Mark |
| Alignment capability | Outer layer±12um；Inner laye±24um |
| Line width tolerance | ±10% |
| Deviation increase and decrease mode | Fixed increase and contraction, automatic increase and contraction, interval increase and contraction, partition alignment |
| Laser type | LD Laser,405±5nm |
| File format | Gerber 274X；ODB++ |
| Power | 380V three-phase alternating current, 6.4kW,50HZ, voltage fluctuation range + 7% ~-10% |
| Condition | Yellow light room; Temperature 22°C ± 1°C; Humidity 50% ± 5%; Cleanliness level 10000 and above; Vibration requirements to avoid violent vibration near the equipment |
