2540DPI High Resolution Computer To Screen Machine DMD DLP Technology

2540DPI High Resolution Computer To Screen Machine DMD DLP Technology

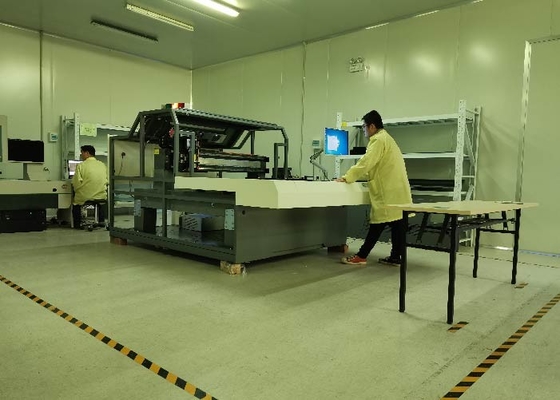

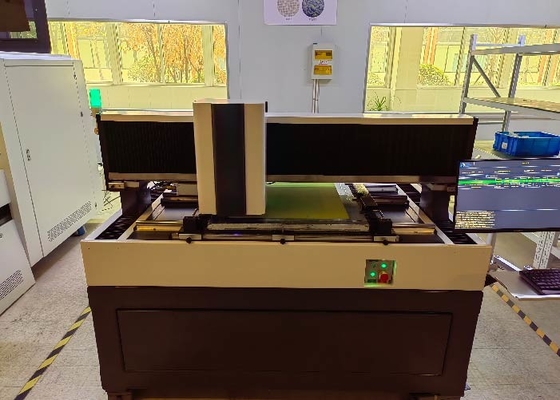

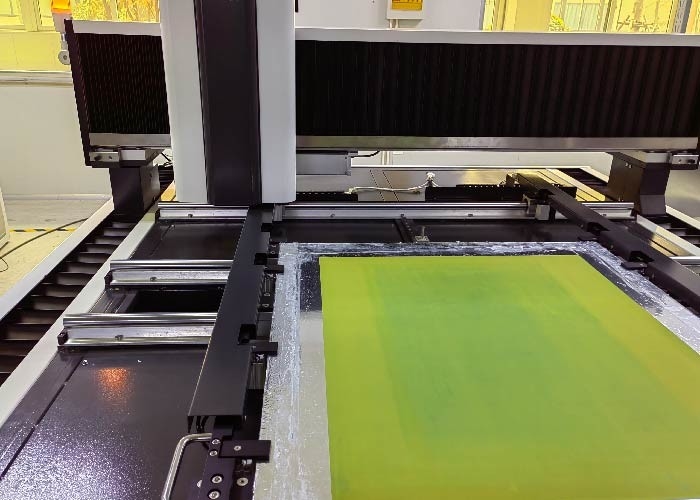

The CTS laser direct imaging machine uses TI's DMD digital imaging technology to form a clear and sharp direct network point image on the silk screen through laser projection. In this way, the digital graphics in the computer can be imaged on the screen. This system has become
the process of making screen images before silk screen printing.

CTS images are superior to traditional film positives, providing more detail and smoother halftone transitions. Dimensional accuracy, the error is less than one ten thousandth. All images do not require expensive film, nor do they require the space and labor required to store and retrieve them. Because the image information is digitized, it is easy to store and quickly retrieve.

CTS temperature control adaptive technology, save energy costs, reduce screen exposure time and speed up production. It only takes 3 minutes to expose each square meter of the screen, with precise alignment and less labor.

GIS has passed ATL (TDK)/TDK qualified suppliers ISO 9001, OHSAS 18001, CE, China, the United States, Europe, South Korea, Japan, and more than 170 patents.

GIS Tech Inc.

GIS built an equipment manufacturing base in Feng County, Xuzhou, covering an area of ​​20,000 square meters, and built a digital projection lithography technology application manufacturing base in Rudong, Nantong, including 2,000 square meters of clean workshops. Has passed ISO 9001, OHSAS 18001 and other certifications, and is a cooperative supplier of internationally renowned companies such as ATL and TDK. Jointly develop nanoscale anti-electromagnetic inkjet equipment with the world's top 500 companies.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	850x950
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	2700*1550*1600mm
  Equipment net weight	1200KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW, gas 1L/min
