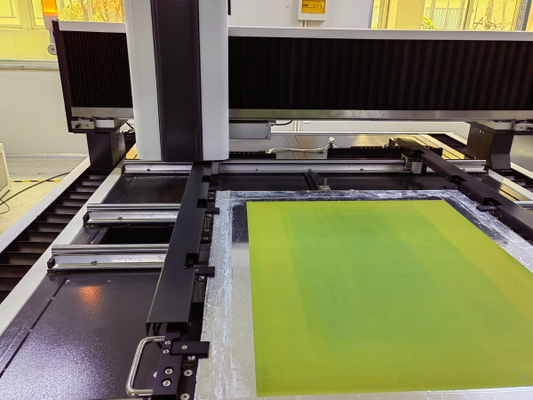

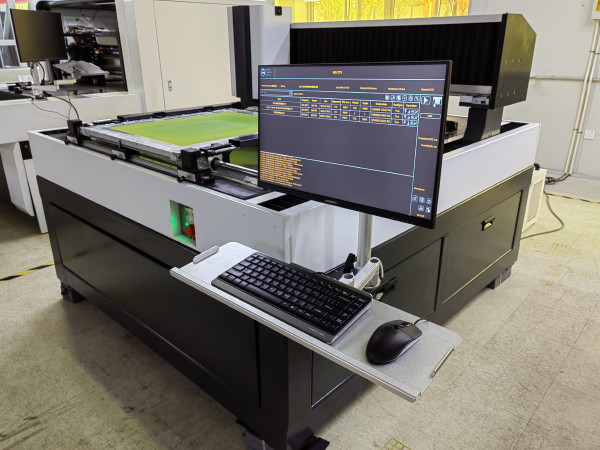

1000*1100mm Computer To Screen CTS Laser Direct Exposure Machine

Max Screen Size 1000*1100 Computer To Screen CTS For Textile Laser Direct Exposure Machine

Please be advised that GIS is the leading manufacturer and supplier of laser CtS machines in Asia market where we’ve sold over 350 installed units in China, South Korea, Japan, China Taiwan, Malaysia, Vietnam, Thailand, India, Bangladesh, Pakistan, Germany and United States, and GIS is keeping a very close relationship with emulsion manufacturers such as Ulano, Kiwo, Marukami and Chromoline etc.

We’ve been focusing on the development of the flatbed type of laser CtS for our gloabal valuable customers, while the vertical CtS by DLP technology with DMD chip has been welcomed in the US market, and you may find more information from the web.

For the application of automotive decals I would suggest you considering the flatbed CtS which is acknowledged as more stable operation for the high precision screen requirements in a long term work specially eletronics, decals, membrane switch and touch panel etc.

We will be very pleased to provide you a small screen sample based on the file provided from you, please advise your requirements and quantities. Please also advise your FedEx account for shipping them to your address.

GIS Tech Inc.

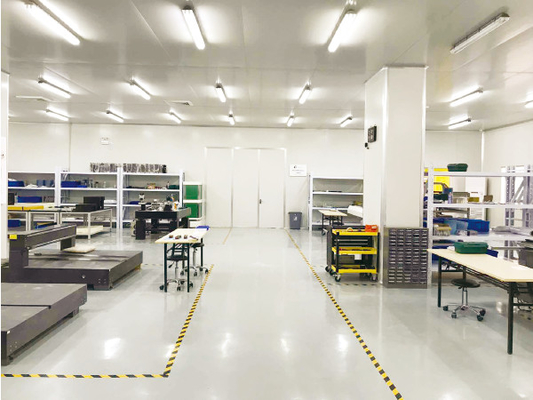

GIS built an equipment manufacturing base in Feng County, Xuzhou, covering an area of ​​20,000 square meters, and built a digital projection lithography technology application manufacturing base in Rudong, Nantong, including 2,000 square meters of clean workshops. Has passed ISO 9001, OHSAS 18001 and other certifications, and is a cooperative supplier of internationally renowned companies such as ATL and TDK. Jointly develop nanoscale anti-electromagnetic inkjet equipment with the world's top 500 companies.

• Specification / Model	CTS100L
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	850x950
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	2700*1550*1600mm
  Equipment net weight	1200KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW, gas 1L/min
