Laser Direct Imaging PCB Solder Mask For PCB、HDI、FPC With File Format

Laser Direct Imaging PCB Solder Mask Application For PCB,HDI,FPC With File Format

Product Description:

Laser Direct Imaging Printed Circuit Board (LDIPCB) is a reliable and widely used technology for the manufacture of Printed Circuit Boards (PCB). It makes use of laser imaging to transfer a PCB design onto the circuit board. This technology offers the advantages of high accuracy, low cost and fast turnaround time. The effective exposure area of LDIPCB is 620x720mm, with an alignment accuracy of ±12um, and line width tolerance of ±10%. It is applicable for solder mask and outer processes, and supports file formats including Gerber, ODB++ and Cals.
LDIPCB provides the highest level of precision and accuracy for PCB manufacturers, enabling them to produce high-quality and reliable PCBs with a quick turnaround time. It eliminates the need for complex and costly processes, such as silkscreen printing and etching. This makes it an ideal choice for PCB manufacturing, and is widely used in a variety of industries, including consumer electronics, automotive, and medical.
Laser Direct Imaging Printed Circuit Board (LDIPCB) is the perfect solution for those looking for a reliable, high-quality and cost-effective PCB manufacturing solution. It offers superior accuracy and precision, with no need for complex and costly processes. It is an ideal choice for PCB manufacturers who need to produce high-quality and reliable PCBs with a quick turnaround time.

Features:

• Product Name: Laser Direct Imaging PCB
• Board thickness: 0.5~3.5mm
• Application: PCB,HDI,FPC
• Laser power: Mixing Wave Total Power 512W
• File format: File Format
• Scale mode: White, Black, Yellow, Etc.
• Laser Direct Imaging Printed Board
• Laser Direct Imaging Circuit Board
• Laser Direct Imaging Circuit Board Manufacturing

Technical Parameters:

Applications:

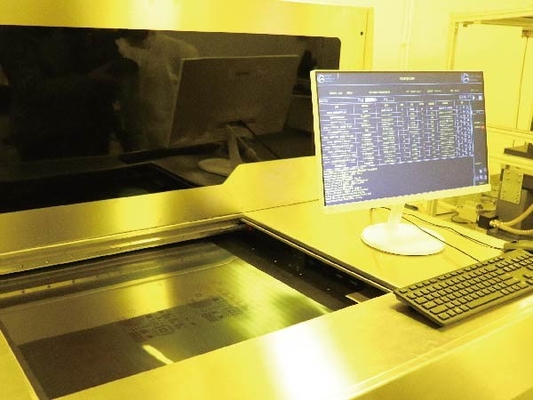

GIS DPX820SM Laser Direct Imaging Print Board has become a popular choice for many applications due to its precision and reliability. This product is made by Suzhou, China and usually used in Solder Mask, Outer process. It features 50/75μm solder bridge/solder opening and 30s@600x500mm solder mask ink. The alignment method is PAD with diameter of 0.5~3.0mm and File Format for the files.
GIS DPX820SM Laser Direct Imaging Printed Board is highly suitable for applications which require high precision and reliability. It is widely used in the automotive, aviation, and aerospace industries. It is also used in medical, industrial, and consumer electronics. With its high accuracy and performance, this product can be used for the production of high-precision products such as PCBs, electronic components, and other components.
GIS DPX820SM Laser Direct Imaging Circuit Board is the perfect choice for manufacturers who need to produce complex circuit boards with high accuracy. Its advanced laser direct imaging technology makes it possible to produce extremely precise components. It also offers great flexibility in terms of design. Its high speed and high resolution make it the ideal choice for complex circuitry and complex components.
GIS DPX820SM Laser Direct Imaging Print Board is the ideal choice for those who need a reliable and accurate product for their PCB manufacturing needs. With its superior quality and performance, this product can provide an efficient and cost-effective solution for any application. Whether you are looking for a product to use in soldering, outer process, or any other application, GIS DPX820SM Laser Direct Imaging Printed Board is the perfect choice.
