DMD DLP Technology Computer To Screen Exposing Machine 40-70% Relative Humidity

DMD DLP Technology 1_bit Tiff/Gerber 274x 400x400mm/15.8x15.8" 40-70% Relative Humidity (No Condensation)

Product Description:

The Computer To Screen Exposing Machine is a powerful solution for direct-to-screen imaging that offers a wide range of features for optimal performance. With the highest image resolution up to 120 line, the DMD DLP Technology and UV laser with wavelength of 405±5 nm, the machine provides accurate and precise images with high clarity. The laser power can be adjusted to 20W/25W/30W according to the user's needs. It is compatible with 1-bit Tiff/Gerber 274x format, and it can adjust the emulsion thickness from 3μm to 150 μm for solvent resistant emulsion and 3μm to 350 μm for water resistant emulsion. The min. frame size is 400mm*500mm, which makes it suitable for any type of screen printing.

Technical Parameters:

Applications:

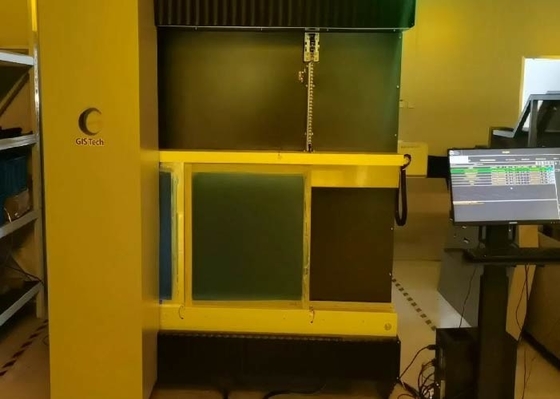

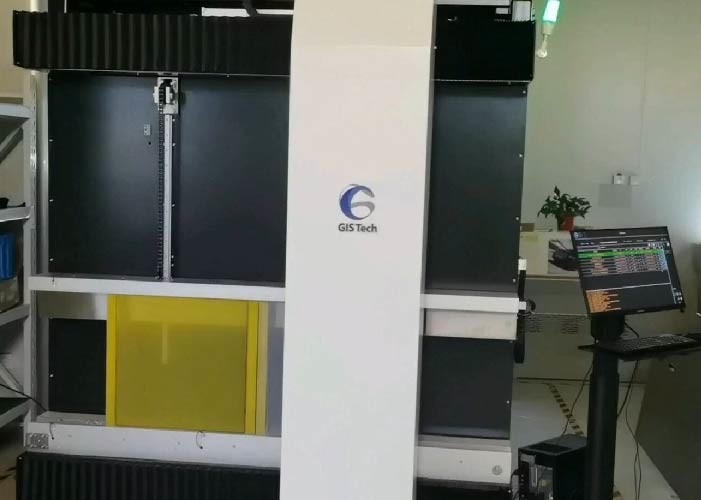

GIS CTS910V Computer To Screen Exposing Machine is a high-end product that is designed and manufactured by Suzhou, China. It is equipped with DMD DLP Technology and can reach up to 120 line/inch. It is equipped with UV Laser, Wavelength 405±5nm and the maximum exposure size is up to 850x950mm/ 33.5x37.4", which is powerful enough to meet most exposure requirements. The laser power can be adjusted from 20W/25W/30W according to different needs. It has excellent performance under yellow light room with cleanliness100000, temperature 22±2°C, 40-70% relative humidity (no condensation) conditions. It is a reliable and efficient choice for those who need to expose screen efficiently.

Support and Services:

Technical Support and Service for Computer To Screen Exposing Machine:

• 24/7 customer service for technical support and machine troubleshooting
• Installation and setup assistance
• Regular maintenance, repairs and upgrades
• Guidance on best practices for machine operation and usage
• Up-to-date documentation and manuals
• Access to online resources for help and additional information

Packing and Shipping:

Our Computer To Screen Exposing Machine is safely packaged using the following methods:

• The machine is covered with a protective wrap to ensure it is not damaged during transportation.
• The machine is then placed in a box for added protection.
• The box is securely sealed and labelled with “FRAGILE”.
• The box is then placed in a larger box for additional protection.
• The larger box is securely sealed and labelled with “HANDLE WITH CARE”.

The package is then shipped to the customer via a trusted courier service.
