High Resolution 1-Bit Tiff/Gerber 274x Laser With Wavelength 405±5nm

Product Description:

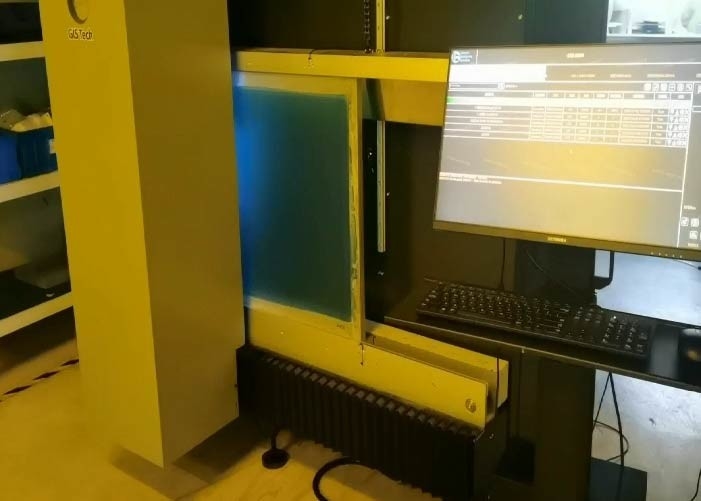

The Computer To Screen Exposing Machine is a state-of-the-art product, equipped with a powerful UV laser that emits a wavelength of 405±5nm, making it perfect for exposure of solvent and water resistant emulsions ranging from 3μm to 150μm and 3μm to 350μm respectively. This machine is also equipped with an auto focusing system, allowing it to achieve optimal sharpness of the image. The maximum screen size it can handle is 1650x1030x1938mm/ 65.0x40.6x76.3, making it suitable for a wide range of applications. The Laser power of this machine is offered in three options: 20W, 25W, and 30W, and it is powered by a single phase 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa. Customers can be assured of the highest quality of prints, thanks to its highly precise and accurate auto focusing system.

Features:

• Product Name: Computer To Screen Exposing Machine
• Conditions: Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
• Focus system: Auto Focusing
• Imaging System: DMD DLP Technology
• Specificaon / Model: CTS 910V
• Raster: Up To 100LPI
• Max line: Up to 120 line
• Max resolution: 1270DPI
• Max screen size 800*1200mm

Technical Parameters:

Applications:

The GIS CTS910V Computer To Screen Exposing Machine is designed to meet the needs of the printing industry. It is equipped with a UV laser, wavelength 405±5nm, DMD DLP Technology and Solvent Resistant Emulsion 3μm-150μm and Water Resistant Emulsion 3μm-350μm. The CTS910V has a high resolution of up to 120 line, allowing for accurate and precise image reproduction. It is also compact and portable, with a size of 1650x1030x1938mm/ 65.0x40.6x76.3, making it easy to move around. The CTS910V is an ideal choice for commercial and industrial printing applications, as it offers excellent performance at an affordable price. With its advanced features and impressive results, the GIS CTS910V Computer To Screen Exposing Machine is the perfect solution for any printing needs.

Customization:

Brand Name: GIS
Model Number: CTS910V
Place of Origin: Suzhou, China
Laser power: 20W/25W/30W(Optional)
Equipment size (mm): 1650x1030x1938mm/ 65.0x40.6x76.3

• UV laser, wavelength 405±5 nm
• Solvent resistant emulsion 3μm-150μm
• Water resistant emulsion 3μm-350μm
• Focus system: Auto Focusing
• Power: Single Phase 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
