UV Laser Computer To Screen Equipment 1500KG

UV Laser Computer To Screen 1500KG Equipment

Product Description:

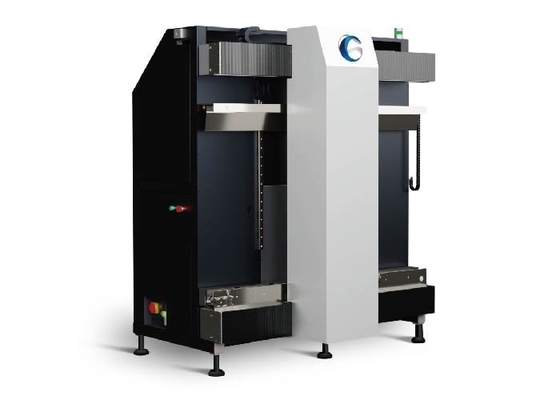

Computer To Screen Exposing Machine is a high-end and high-efficiency exposure machine with a powerful laser. It adopts 1270DPI resolution which is much higher than traditional exposure machines. Equipped with the advanced DMD DLP Technology, it can quickly and accurately expose images onto screens. The exposure time is also greatly reduced compared with traditional exposing methods. Moreover, it also has an Auto Focusing system that can adjust itself according to the distance between the screen and the machine, so that the screen can be quickly and easily exposed.

The laser power of this machine can be freely selected according to the customer's needs, 20W / 25W / 30W are available for choice. The min screen size is 400x400mm/15.8x15.8, which is suitable for exposing various sizes of screens. In addition, it has a simple and intuitive interface design, which makes it easy for users to operate.

Computer To Screen Exposing Machine is an ideal choice for screen makers who are seeking for high efficiency and accuracy. It is a great tool for quickly and accurately exposing screens, which can greatly improve the production efficiency of the customers.

Features:

• Product Name: Computer To Screen Exposing Machine
• Imaging System: DMD DLP Technology
• Focus system: Auto Focusing
• Specificaon / Model: CTS 910V
• Laser type: UV Laser, Wavelength 405±5nm
• Raster: Up To 100LPI
• Water resistant emulsion: 3μm-350μm
• Max screen size: 600mm x 800mm

Technical Parameters:

Applications:

The Computer To Screen Exposing Machine (CTS910V) by GIS is the perfect choice for those looking for a reliable and efficient way to produce precise screen printing results in a variety of settings. This machine is suitable for use in yellow light rooms with cleanliness up to 100000, and a temperature of 22 ± 2°C and 40-70% relative humidity (with no condensation). It requires a single-phase 220V, 50/60HZ, 4KW power supply and compressor air of 0.5mpa. The UV laser, with a wavelength of 405 ± 5nm, allows for fast and accurate exposure time of 120-240s/㎡, #350 yellow mesh. The CTS910V also features DMD DLP technology and a resolution of 1270dpi.

The CTS910V is ideal for those who are looking for a powerful and efficient solution for their screen printing needs. With its reliable DMD DLP technology, UV laser, and adjustable exposure time, this machine is perfect for a variety of settings. The high resolution of 1270dpi ensures accurate and high-quality results, while the single-phase 220V, 50/60HZ, 4KW power supply and compressor air of 0.5mpa make it easy to use. The temperature, humidity, and yellow light room conditions are also carefully controlled, making the CTS910V the perfect choice for those looking for a reliable and efficient way to produce precise screen printing results.

Customization:

GIS CTS910V Computer To Screen Exposing Machine is specifically designed to meet the needs of the textile, decal, label, decoration, packaging and PCB industries. It is equipped with a UV laser with a wavelength of 405±5 nm, delivering 1270DPI resolution, and offers adjustable laser power from 20W to 30W to satisfy different needs. The machine is designed for use in a yellow light room with cleanliness of 100000, temperature of 22±2°C, and 40-70% relative humidity (no condensation). The min screen size is 400x400mm/15.8x15.8 and the max screen size is customizable.

FAQ:

Q: What is the brand name of the Computer To Screen Exposing Machine?

A: The brand name of the Computer To Screen Exposing Machine is GIS.

Q: What is the model number of the Computer To Screen Exposing Machine?

A: The model number of the Computer To Screen Exposing Machine is CTS910V.

Q: Where is the Computer To Screen Exposing Machine manufactured?

A: The Computer To Screen Exposing Machine is manufactured in Suzhou, China.

Q: What are the main features of the Computer To Screen Exposing Machine?

A: The main features of the Computer To Screen Exposing Machine include a high printing accuracy, a fast printing speed, and a low noise level.

Q: What is the size of the Computer To Screen Exposing Machine?

A: The size of the Computer To Screen Exposing Machine is 1320mm x 1020mm x 1750mm.
