High Resolution Auto Focusing Imaging System with DMD DLP Technology for Textile

Product Description:

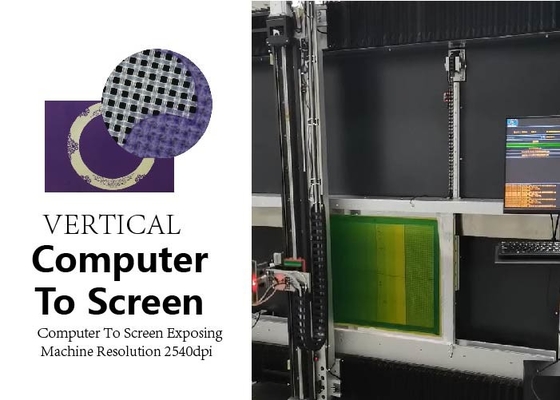

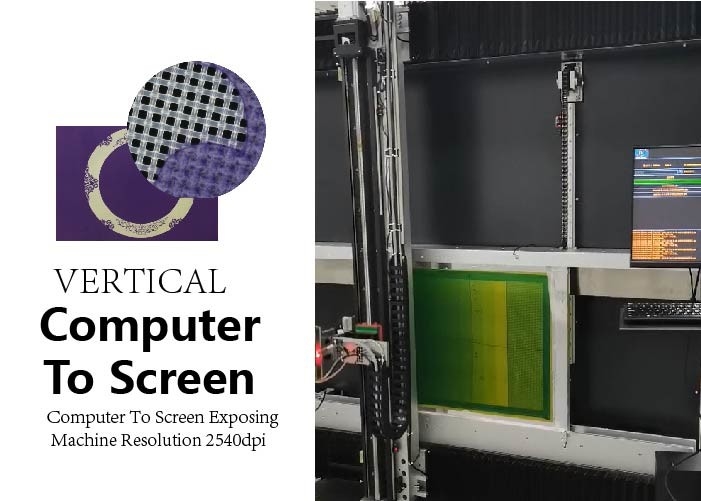

Computer To Screen Exposing Machine is designed for high resolution image output on screen with solvent resistant emulsion ranging from 3μm-150μm and up to 120 line/inch. It is equipped with an Auto Focusing system and its maximum exposure size is 1100x1250mm, with a minimum screen size of 400x400mm. The Imaging System utilizes DMD DLP Technology for highly efficient exposure. With a net weight of 3450KG, this machine enables users to easily expose image onto the screen with high precision.

Features:

• Product Name: Computer To Screen Exposing Machine
• Max Screen Size: 1200mm x 900mm
• Laser Power: 20W/25W/30W(Optional)
• Laser Type: UV Laser, Wavelength 405±5nm
• Exposure Time: 120-240s/㎡, #350 Yellow Mesh
• Focus System: Auto Focusing
• Conditions: Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)

Technical Parameters:

Applications:

The GIS CTS300 Computer To Screen Exposing Machine is a high-performance digital imaging device, designed for the production of high-quality images on a wide variety of materials, including glass, textile, decal, label, decoration, packaging and PCB. With its advanced UV laser, wavelength 405±5 nm, and DMD DLP Technology, this device is capable of exposing up to 100LPI and a resolution of 2540 dpi. The GIS CTS300 has a max exposure size of 1100x1250 mm and an exposure time from 0.1-19.9s, as well as a size of 2950x1980x1710 mm. This device is an ideal choice for professional image makers who need to produce superior images with high exposure quality.

Customization:

Brand Name: GIS

Model Number: CTS300

Place of Origin: Suzhou, China

Equipment net weight: 3450KG

Specification / Model: CTS300

Laser power: 20W/25W/30W(Optional)

Exposure time: 120-240s/㎡, #350 Yellow Mesh

Max screen size: Up to 2200mm x 3100mm

Exposure time: 120-240s/㎡, #350 Yellow Mesh

Resolution: 2540dpi

Support and Services:

Our Computer To Screen Exposing Machine comes with a comprehensive technical support and service package. Our team of dedicated engineers and technicians is available 24/7 to provide support for any technical queries or issues that may arise.

We offer a wide range of services, including:

• Repair and maintenance services
• Software and hardware updates
• Troubleshooting assistance
• Replacement parts and accessories

For any inquiries, please contact us at support@example.com.

Packing and Shipping:

FAQ:
