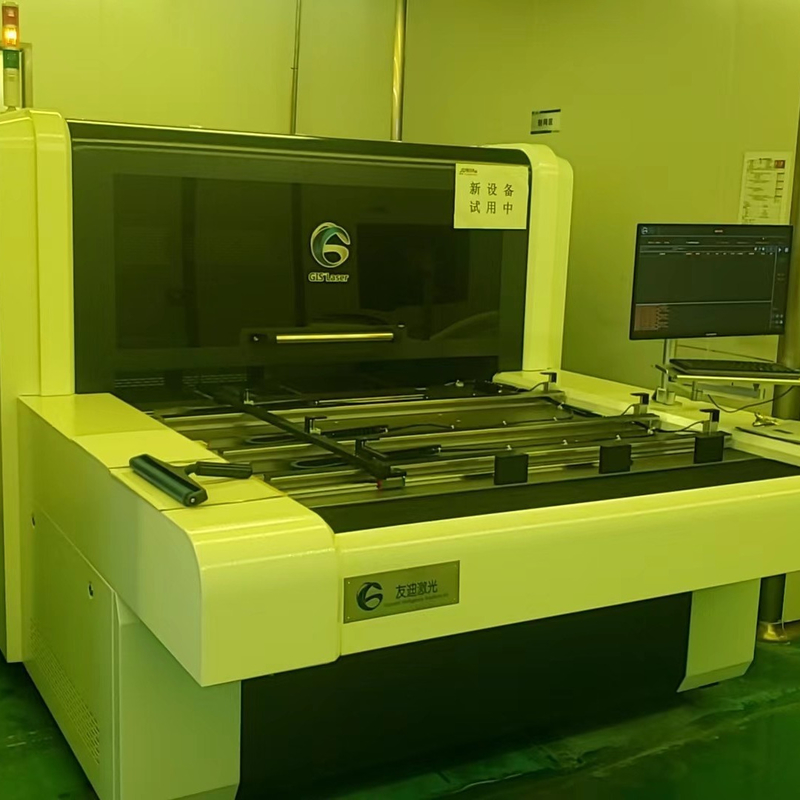

DMD DLP Technology Computer To Screen Exposing Machine 400x400mm 1200x1800mm

Product Description:

The Computer To Screen Exposing Machine (CTS300) is an advanced, precision-guided machine designed to give you water-resistant emulsion from 3μm to 350μm. It comes with a Focus system of Auto Focusing and a Laser power of 20W/25W/30W (optional). It also has an exposure time of 120-240s/㎡ for #350 Yellow Mesh. The equipment net weight is 3450KG. It is an ideal choice for those who need a reliable and efficient Computer To Screen Exposing Machine.

The CTS300 is designed to give you maximum accuracy and precision with its advanced Auto Focusing system. It is highly efficient and capable of producing water-resistant emulsion from 3μm to 350μm. The Laser power of 20W/25W/30W (optional) makes it an ideal choice for those who need maximum output. The exposure time of 120-240s/㎡ for #350 Yellow Mesh ensures quick and accurate results. The equipment net weight is 3450KG, making it lightweight and easy to operate.

The Computer To Screen Exposing Machine (CTS300) is the perfect choice for those who need an efficient, reliable and accurate Computer To Screen Exposing Machine. It has a Focus system of Auto Focusing, a Laser power of 20W/25W/30W (optional), an exposure time of 120-240s/㎡ for #350 Yellow Mesh and a net weight of 3450KG. With its advanced Auto Focusing system and water-resistant emulsion from 3μm to 350μm, you can rest assured that you will get accurate and precise results every time.

Features:

• Product Name: Computer To Screen Exposing Machine
• Power: Single Phase 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
• File format: 1_bit Tiff/ Gerber 274x
• Imaging System: DMD DLP Technology
• Max screen size ( mm ): 1200x1800mm
• Equipment size (mm): 2950x1980x1710mm
• UV laser, wavelength 405±5 nm, up to 120 line
• UV laser, wavelength 405±5 nm
• Aluminum frame

Technical Parameters:

Applications:

The GIS CTS300 Computer To Screen Exposing Machine is designed for a wide range of applications and scenarios. It can be used to expose both water resistant emulsion 3μm-350μm and solvent resistant emulsion 3μm-150μm with a raster up to 100LPI. The exposure time is 120-240s/㎡, #350 Yellow Mesh, and the resolution is 2540dpi. The maximum exposure size is 1100x1250mm and the maximum screen size is 1200x1800mm. It also features a UV laser with a wavelength of 405±5 nm, making it resistant to water and solvents.

The GIS CTS300 Computer To Screen Exposing Machine is ideal for a wide range of industries, including printing, entertainment, medical, and more. It is especially useful for high-volume printing operations, where its superior speed and accuracy make it an ideal choice. It is also capable of producing high-quality images with sharp detail and accurate colors, making it an excellent choice for professional graphic design applications. In addition, its robust construction and reliable performance make it suitable for long-term use.

The GIS CTS300 Computer To Screen Exposing Machine is an ideal choice for any business or individual looking for an efficient and reliable solution for exposing screens. Its versatility, speed, and performance make it a great choice for a wide range of industries, and its robust construction ensures that it will provide reliable performance for years to come.

Customization:

Support and Services:

We offer complete technical support and service for our Computer To Screen Exposing Machine. Our experienced technicians provide on-site service, and our technical support team is available to answer questions and provide solutions over the phone or via email.

We take pride in our customer service and strive to provide the best possible experience. If you're having an issue with your Computer To Screen Exposing Machine, we will diagnose the problem quickly and provide a resolution in a timely manner.

We also offer extended warranties for our products, so you can rest assured that your machine is covered in the event of any unforeseen issues.

Packing and Shipping:

Packaging and Shipping for Computer To Screen Exposing Machine:

The Computer To Screen Exposing Machine comes in a compact and secure box. It is shipped with necessary accessories and a detailed instruction manual. The box is sealed with strong tape and is marked with all the necessary shipping information. All the items are securely packed in a thick cushion of foam to protect against any potential damage during transportation.

FAQ:

Q: What is the Brand Name of the Computer To Screen Exposing Machine?
A: The Brand Name of the Computer To Screen Exposing Machine is GIS.

Q: What is the Model Number of the Computer To Screen Exposing Machine?
A: The Model Number of the Computer To Screen Exposing Machine is CTS300.

Q: Where is the Computer To Screen Exposing Machine manufactured?
A: The Computer To Screen Exposing Machine is manufactured in Suzhou, China.

Q: What are the main features of the Computer To Screen Exposing Machine?
A: The Computer To Screen Exposing Machine is designed for high precision and accuracy, with a stable and reliable performance. It also features an LCD display, to allow for easy and efficient operation.

Q: What is the capacity of the Computer To Screen Exposing Machine?
A: The Computer To Screen Exposing Machine can handle up to 300 frames per hour. It is suitable for small and medium printing business.
