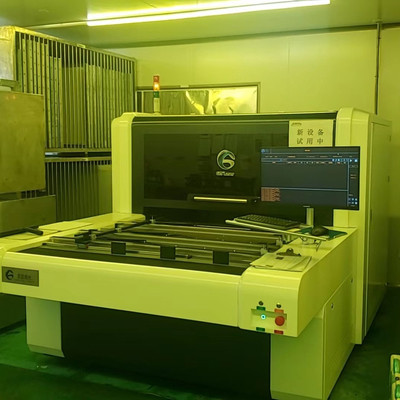

20W/25W/30W UV Laser Computer To Screen Exposing Machine With Min Screen Size 400x400mm

Product Description:

Computer To Screen Exposing Machine is designed with the latest DMD DLP Technology, delivering full-featured, precision Computer To Screen(CTS) exposure system for the screen printing industry. It allows direct data transfer from the computer to the CTS exposure machine, eliminating the need of making films. The Laser power is available in 20W/25W/30W (Optional). It supports 1_bit Tiff/ Gerber 274x file format, and the min screen size is 400x400mm. The Solvent Resistant Emulsion has a thickness range of 3μm-150μm, and the Water Resistant Emulsion thickness is 3μm-350μm. This Computer To Screen Exposing Machine has a net weight of 3450KG.

Features:

• Product Name: Computer To Screen Exposing Machine
• Focus system: Auto Focusing
• Application: Glass,Textile, Decal, Label, Decoration, Packaging And PCB Etc.
• Resolution: 2540dpi
• Specificaon / Model: CTS300
• Power: Single Phase 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
• DMD DLP Technology: DMD DLP Technology
• Solvent resistant emulsion: 3μm-150μm
• Expose Area: 1200mmx1400mm

Technical Parameters:

Applications:

GIS CTS300 Computer To Screen Exposing Machine is the ideal choice for the modern screen printing industry. With a maximum screen size of 1200x1800mm, this machine is designed to provide high resolution, accurate and precise imaging on a wide variety of materials. The imaging system features DMD DLP Technology which ensures superior quality results and Auto Focusing for maximum accuracy. The exposure time of 120-240s/㎡ enables users to achieve the desired results quickly and efficiently.

This Computer To Screen Exposing Machine is equipped with a UV laser of wavelength 405±5 nm to ensure optimal exposure. It is able to reproduce intricate and complex designs, as well as small and detailed images. The machine is also equipped with Auto Accuracy to ensure the highest quality results. This feature eliminates human error, making it perfect for use in the printing and packaging industry. Its ability to handle medium-to-high volume production is ideal for large-scale production runs.

GIS CTS300 Computer To Screen Exposing Machine is ideal for glass, textile, decal, label, decoration, packaging and PCB applications. The #350 Yellow Mesh provides superior quality printing results. This machine is designed to provide cost-effective and reliable performance. It is easy to use and maintain, making it perfect for the modern screen printing industry.

Customization:

Support and Services:

Computer To Screen Exposing Machine provides technical support and services to ensure that the product is used safely and efficiently. Our technical support and service team are experienced and knowledgeable to answer any of your questions and offer solutions. We provide free online resources for troubleshooting, installation and maintenance. We also provide telephone and email support, to help you solve any of your technical issues. Additionally, we offer on-site service, to help you with any problem that may arise.

Packing and Shipping:

Packaging and Shipping of Computer To Screen Exposing Machine:

The Computer To Screen Exposing Machine is packaged in a cardboard box with a foam inlay and is shipped via a reliable courier service.

The box contains the following items:

• The Computer To Screen Exposing Machine
• All necessary cables and power supplies
• User manual
• Warranty information

The package is clearly labeled with the destination address and contact information. The package is then securely sealed and sent on its way.

FAQ:

Q: What is the brand name of the Computer To Screen Exposing Machine?

A: The Computer To Screen Exposing Machine is manufactured by GIS.

Q: What is the model number of the Computer To Screen Exposing Machine?

A: The model number of the Computer To Screen Exposing Machine is CTS300.

Q: Where is the Computer To Screen Exposing Machine manufactured?

A: The Computer To Screen Exposing Machine is made in Suzhou, China.

Q: What features does the Computer To Screen Exposing Machine have?

A: The Computer To Screen Exposing Machine is equipped with a high-precision three-axis servo motor, high-precision linear guide, high-precision drive, and an imported control system.

Q: What are the advantages of the Computer To Screen Exposing Machine?

A: The Computer To Screen Exposing Machine offers a fast printing speed, high accuracy, strong stability, and a long service life.
