Product Details
Place of Origin: Suzhou, China
Brand Name: GIS
Model Number: CTS310
Payment & Shipping Terms
Exposure Time: |
120-240s/㎡, #350 Yellow Mesh |
Laser Power: |
20W/25W/30W(Optional) |
Resolution: |
2540dpi |
File Format: |
1_bit Tiff/ Gerber 274x |
Conditions: |
Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
Focus System: |
Auto Focusing |
Max Screen Size ( Mm ): |
1200x1800mm |
Min Screen Size ( Mm ): |
400x400mm |
Exposure Time: |
120-240s/㎡, #350 Yellow Mesh |
Laser Power: |
20W/25W/30W(Optional) |
Resolution: |
2540dpi |
File Format: |
1_bit Tiff/ Gerber 274x |
Conditions: |
Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
Focus System: |
Auto Focusing |
Max Screen Size ( Mm ): |
1200x1800mm |
Min Screen Size ( Mm ): |
400x400mm |

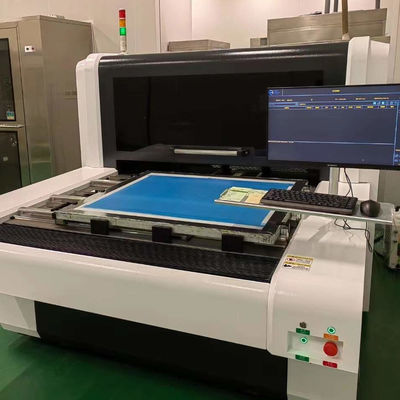

Computer To Screen Exposing Machine is a powerful imaging system that uses DMD DLP technology to expose high-quality images on different size of screens. It has a net weight of 3450KG, and the maximum screen size it can accommodate is 1200x1800mm. The laser type is UV Laser with a wavelength of 405±5nm, and its resolution is 2540dpi, which is significantly higher than those of standard machines. This machine can expose screens quickly and accurately, without sacrificing quality. And the exposure time of this machine is short, which provides a high efficiency and productivity. Thus, it is an ideal equipment for screen exposing.
| Parameter | Specification/Model |
|---|---|
| Max Exposure Size (mm) | 1100x1250mm |
| Resolution | 2540dpi (1270dpi optional) |
| Min screen size (mm) | 400x400mm |
| Specification / Model | CTS310 |
| Max screen size (mm) | 1200x1800mm |
| Laser type | UV Laser, Wavelength 405±5nm |
| Laser power | 20W/25W/30W(Optional) |
| Emulsion thickness (EOM) | Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
| Imaging System | DMD DLP Technology |
| Conditions | Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |

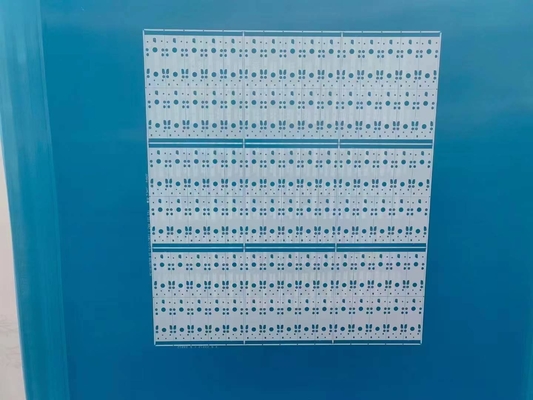

The GIS CTS310 Computer To Screen Exposing Machine is capable of exposing screens of a wide range of sizes from 400x400mm to 1200x1800mm and with resolutions of up to 2540 dpi. It is perfect for a variety of applications, from small-scale production runs to large-scale, high-volume orders. The machine is also equipped with a solvent resistant emulsion of 3μm-150μm and a water resistant emulsion of 3μm-350μm. This ensures the highest quality of exposure while keeping exposure times to a minimum. With its range of features and specifications, the GIS CTS310 is an ideal choice for screen printers of any size.
Packaging and Shipping for Computer To Screen Exposing Machine:
