Resolution 2540dpi CTS Exposing Machine With Imaging System DMD DLP Technology

Resolution Max Screen Size 2540dpi With Imaging System DMD DLP Technology For

Product Description:

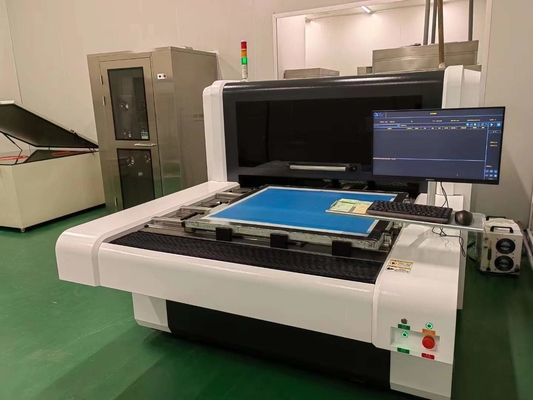

Computer To Screen Exposing Machine is an advanced imaging system with 1270DPI resolution, which is suitable for a yellow light room with cleanliness 100000, temperature 22 ± 2°C, 40-70% relative humidity (no condensation). It is based on DMD DLP technology and consumes a single phase 220V, 50/60HZ, 4KW power supply with a compressor air of 0.5mpa. The machine has an equipment size of 2950x1980x1710mm and has an exposure time of 14 seconds. It guarantees a uniformity of within ±2.0% and is capable of exposing on both positive and negative films. Furthermore, it can be used to expose a variety of screen printing plates with excellent image quality.

Features:

• Product Name: Computer To Screen Exposing Machine
• Specification/Model: CTS310
• Min Screen Size (mm): 400x400mm
• Emulsion Thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
• Max Exposure Size (mm): 1100x1250mm
• Focus System: Auto Focusing

Technical Parameters:

Applications:

The GIS CTS310 Computer To Screen Exposing Machine offers a high resolution of up to 2540dpi, allowing for the creation of precise images. With its optional laser power of 20W/25W/30W, the CTS310 can accommodate up to 120 line rasters and a maximum screen size of 400x400mm. This machine is designed to be used in a yellow light room with cleanliness of 100000, temperature of 22±2°C, and 40-70% relative humidity (no condensation). This efficient and reliable product is sure to meet your needs.

Customization:

Support and Services:

Computer To Screen Exposing Machine technical support and services include:

• Installation and start up assistance
• Software and firmware upgrades
• Troubleshooting and repair services
• Spare parts and consumables supply
• Technical training and documentation
• Remote and on-site technical support

Packing and Shipping:

To ensure the safe delivery of Computer To Screen Exposing Machine, we will package it in a strong cardboard box with thick foam padding. We will also attach a label to the box indicating the contents of the package and the delivery address.

The package will be shipped using a reputable courier service. We will track the shipment and provide the tracking number to the customer so that they can monitor the progress of the shipment.

FAQ:
