Auto Focusing Computer To Screen Exposing Machine For Max Screen Size 1200x1800mm

High-performance Computer To Screen Exposing Machine for Max screen size 1200x1800mm

Product Description:

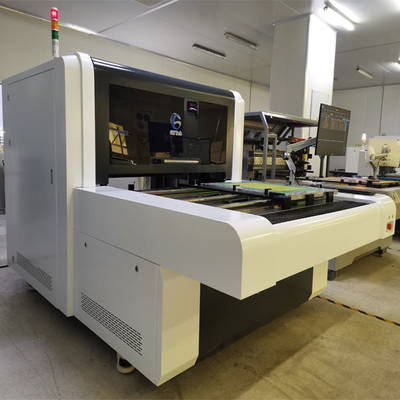

Computer To Screen Exposing Machine is a high-performance exposing equipment capable of providing superior resolution up to 2540dpi and is available with optional laser power of 20W/25W/30W. With a maximum screen size of 2950x1980x1710mm, this machine is ideal for producing solvent resistant emulsion from 3μm to 150μm. The integrated DMD DLP Technology enables the machine to achieve a fast exposure time of 120-240s/㎡ with up to #350 Yellow Mesh. It also features an auto focusing system for accurate and consistent exposure results.

Features:

• Product Name: Computer To Screen Exposing Machine
• Resolution: 2540dpi
• Min screen size ( mm ): 400x400mm
• Specificaon / Model: CTS310
• Raster: Up To 100LPI
• Conditions: Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)

Technical Parameters:

Applications:

GIS CTS310 Computer To Screen Exposing Machine is perfect for professional screen printing applications. This machine is a great addition for any business looking for a reliable and powerful screen printing machine. It has an auto focusing system and can operate in yellow light room with cleanliness 100000, temperature 22±2°C, and 40-70% relative humidity (no condensation). With a maximum exposure size of 1100x1250mm and an equipment size of 2950x1980x1710mm, this machine is well-suited for a variety of screen printing jobs. Additionally, it has a raster up to 100LPI and is capable of water resistant emulsion 3μm-350μm and solvent resistant emulsion 3μm-150μm. This machine also features a UV laser with a wavelength of 405±5 nm and a frequency of 6KHZ-20KHZ.

Customization:

GIS CTS310 Computer To Screen Exposing Machine is the perfect choice for screen printers due to its advanced UV laser and wavelength 405±5 nm, making it ideal for water resistant emulsion 3μm-350μm. With a maximum screen size of 1200x1800mm and max exposure size of 1100x1250mm, this machine is also capable of raster up to 100LPI with a shorter exposure time.

Support and Services:

Computer To Screen Exposing Machine Technical Support and Service

We offer technical support and service for Computer To Screen Exposing Machines. Our team of experts can provide you with the following:

• Troubleshooting and repair of hardware and software
• Software updates and upgrades
• Regular maintenance checks
• Replacement of damaged or defective parts
• Assistance with installation and setup
• Help with any technical queries

If you have any questions or need any help, please contact us directly by email, phone, or live chat. Our experts will be happy to help you.

Packing and Shipping:

Packaging and shipping of Computer To Screen Exposing Machine:

• The product is packaged in a standard wooden box with foam to ensure that it is not damaged during transportation.
• The box is labeled with product information and delivery address.
• The package is securely sealed with adhesive tape.
• The package is shipped via international courier.
• The customer is provided with a tracking number to track the package.
