1100x1250mm Exposure Size Computer To Screen Exposing Machine With Auto Focusing

1100x1250mm Exposure Size Computer To Screen Exposing Machine With Auto Focusing

Product Description:

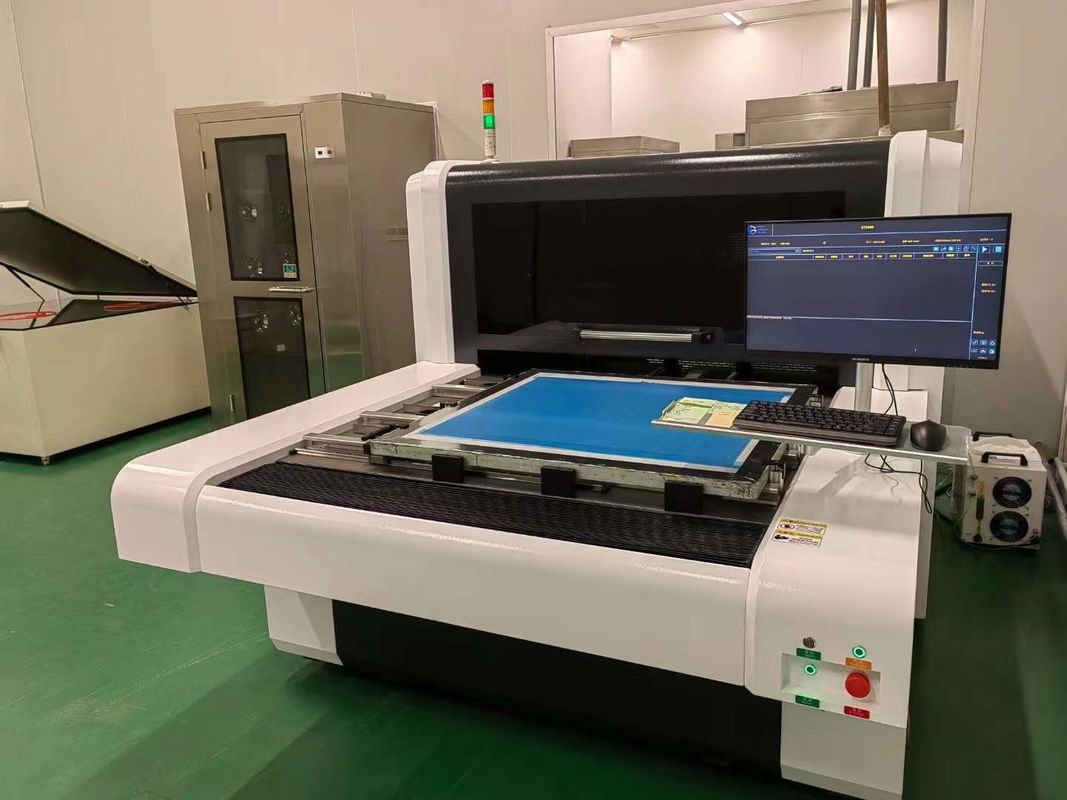

The COMPUTER TO SCREEN Exposing Machine (CTS310) is an advanced screen-making system that helps printers to save time and money by allowing them to produce a wide range of screens with a maximum screen size of 1200x1800mm. With its built-in auto-focusing system, CTS310 can maintain a high level of accuracy even with a raster of up to 100LPI. Moreover, its minimum screen size is 400x400mm, making it suitable for almost any kind of screen-making job. Overall, CTS310 is a reliable and efficient COMPUTER TO SCREEN Exposing Machine that serves the needs of printers and screen makers alike.

Features:

• Product Name: Computer To Screen Exposing Machine
• Exposure Time: 120-240s/㎡, #350 Yellow Mesh
• File Format: 1_bit Tiff/ Gerber 274x
• Equipment Size (mm): 2950x1980x1710mm
• Conditions: Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
• Imaging System: DMD DLP Technology

Technical Parameters:

Applications:

GIS's CTS310 Computer To Screen Exposing Machine is an ideal choice for advanced glass, textile, decal, label, decoration, packaging and printed circuit board (PCB) production lines. It features a maximum exposure size of 1100x1250mm, a maximum screen size of 1200x1800mm, and a net weight of 3450KG. The conditions for this machine are a yellow light room with a cleanliness level of 100000, temperature of 22±2°C and a relative humidity of 40-70% (no condensation).

The CTS310 uses a solvent resistant emulsion with a thickness between 3μm and 150μm, and a resolution of 1270DPI. This makes it suitable for a range of production processes with excellent results. It offers the latest in computer to screen technology for maximum efficiency and performance. With its slim design and easy installation, it is perfect for any production line.

The CTS310 is highly reliable and efficient. It has a fast exposing speed, and when combined with its fast printing speed, makes it ideal for any production line. It also supports a variety of formats and is easy to use and maintain. With its superior performance and excellent results, the GIS CTS310 Computer To Screen Exposing Machine is the perfect choice for any production line.

Customization:

GIS CTS310 Computer To Screen Exposing Machine is a professional equipment for exposing screens. It is designed to meet the needs of the screen printing industry. It is equipped with a yellow light room and a solvent resistant emulsion with a thickness of 3μm-150μm. With the maximum screen size 1200x1800mm, it is perfect for screen printing production.

Brand Name: GIS
Model Number: CTS310
Place of Origin: Suzhou, China
Equipment net weight: 3450KG
Max screen size ( mm ): 1200x1800mm
Specificaon / Model: CTS310
Max exposure size ( mm ): 1100x1250mm
Conditions: Yellow Light Room With Cleanliness100000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)

Support and Services:

Computer To Screen Exposing Machine offers reliable technical support and services for its customers. Our highly trained technical team is available 24/7 to help you with any technical issues you may have. We offer a wide range of services, from installation and maintenance to troubleshooting and repairs. We also provide software updates, upgrades, and system security services. Our team is dedicated to providing the best technical support and service possible, so you can trust us to help you get the most out of your Computer To Screen Exposing Machine.

Packing and Shipping:

FAQ:

Q1: What is the brand name of this computer to screen exposing machine?

A1: It is GIS.

Q2: What is the model number of this computer to screen exposing machine?

A2: It is CTS310.

Q3: Where is this computer to screen exposing machine produced?

A3: It is produced in Suzhou, China.

Q4: What is the purpose of this computer to screen exposing machine?

A4: This computer to screen exposing machine is used to expose film to screen.

Q5: What is the warranty period of this computer to screen exposing machine?

A5: Please contact the manufacturer for more information on the warranty period for this computer to screen exposing machine.
