PCB UV Exposure Machine
Created with Pixso. CTS100 1270dpi Laser Direct Imaging Equipment ISO 9001

CTS100 1270dpi Laser Direct Imaging Equipment ISO 9001

Brand Name: GIS
Model Number: CTS100
MOQ: 1 set
Price: negotiable price
Delivery Time: 20 work days
Detail Information
Place of Origin:
Jiangsu, China
Certification:
ISO 9001
Name:
Computer To Screen
Application:
Textile
Resolution:
1270dpi
Max Screen:
900x1000
Packaging Details:
wooden case packing
Supply Ability:
30set per month
Highlight:

1270dpi laser direct imaging equipment

,

CTS100 laser direct imaging equipment

,

ISO 9001 cts machine

Product Description

Direct To Screen Printer For Textile Printing 1720dpi



Max Screen Size 900*1000 Computer To Screen machine

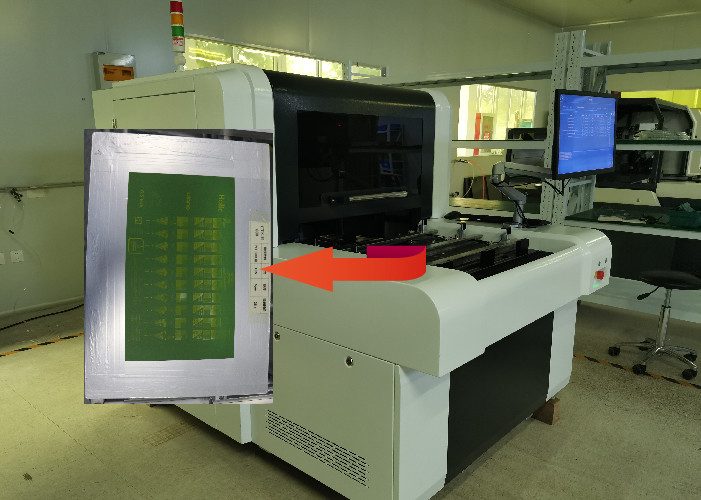

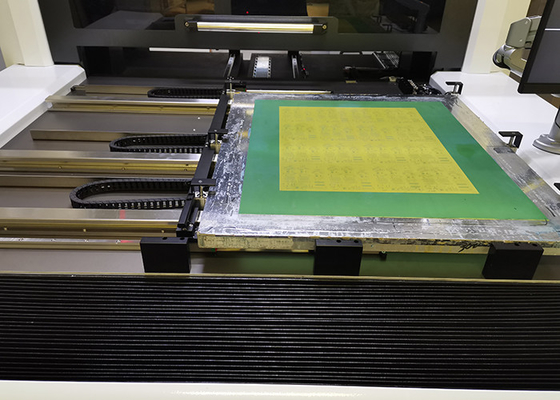

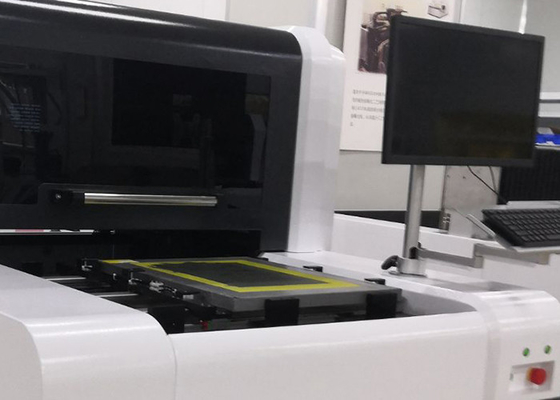

Data files is directly read by the computer to screen (CTS) and then converted into images which will be transmitted through laser beams onto screens by DMD and lens.

The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.

  •   Specification / Model

      CTS100
      Max screen size ( mm )   900x1000
      Min screen size ( mm )   400x400

      Max exposure size ( mm )

      800x900
      Screen frame thickness
      (bespoke service is available)
      25-45mm
      Imaging System   DMD DLP Technology
      Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
      Exposure time   120-240s/ ㎡, #350 yellow mesh
      Resolution   1270/2540dpi (Optional)
      Raster   133LPI
      Focus system   Fixed focusing
      File format   1_bit tiff etc.
      Laser type   UV laser, wavelength 405±5nm
      Laser power   20W/25W(Optional)
      Equipment size (mm)   1550x1330x1460
      Equipment net weight   1100KG
      Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
      40-70% relative humidity (No condensation)
      Power   Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min
