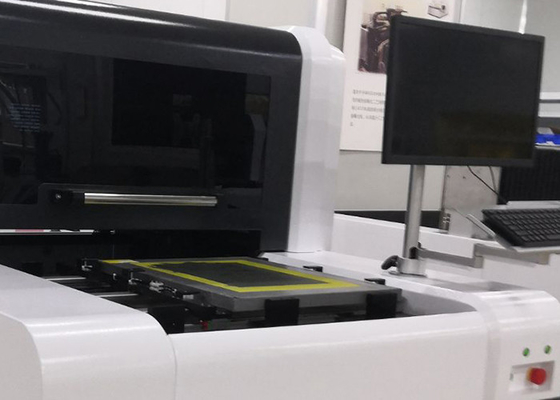

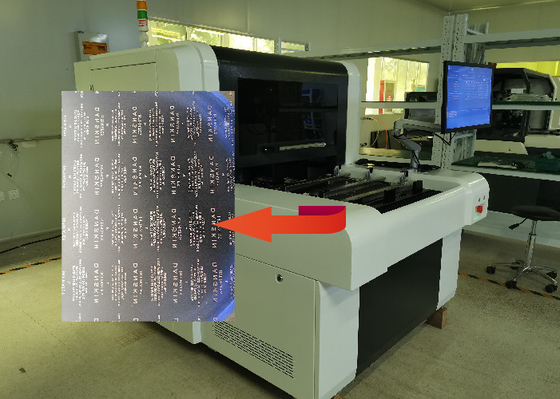

Textile printing Computer to Screen (CTS) Imaging & Exposure System 1720dpi

• Max Screen Size 900*1000 Computer To Screen machine

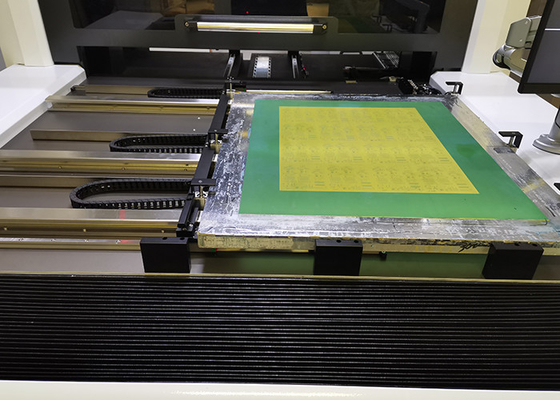

CTS laser direct plate making machine is to directly read computer data files and convert them into images, and then expose and image them on the screen by laser projection. This kind of imaging screen is suitable for textile printing, and also suitable for decals, packaging, PCB, 3C Printing on glass covers, etc.

The CTS exposure system simplifies the work process and improves productivity, providing fast and excellent screen exposure with exponentially reduced energy costs, and CTS consumes much less energy. CTS temperature control adaptive technology, save energy costs, reduce screen exposure time and speed up production. It only takes 3 minutes to expose each square meter of the screen, with precise alignment and less labor.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min



• High Resolution

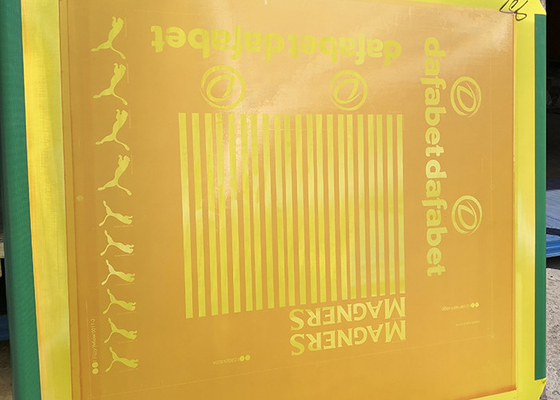

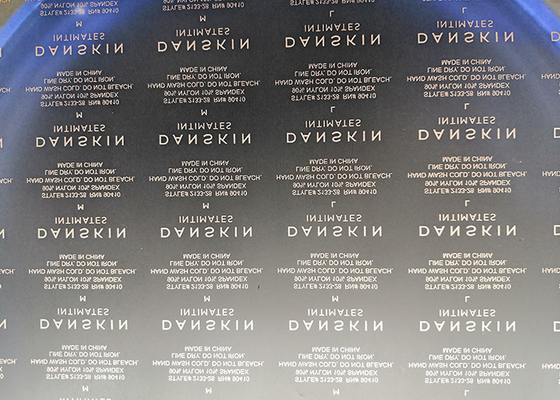

It is easy and fast to achieve raster 133LPI and high quality screen dots by the optical 1270dpi, while with the opitcal 2540dpi, high definition curved lines and perfect FM screen dots can be realized.

                                                               2540DPI
