Product Details:
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month

Computer To Screen CTS Imaging & Exposure System Machine Textile Clothing Printing

Description
Name: Computer To Screen Application: Textile
Resolution: 1270dpi/2540dpi Max Screen: 900x1000
Laster Type: UV Laser, Wavelength 405±5nm Emulsion Thickness: 3-350μm
Machine Dimension: 1710mm*1470mm*1500mm (length*width*height) Weight: 1200kg
Bearing Weight Point: 4 Capacity: 120S/m2 (according To The Characteristic Of Emulsion)
Imaging System: DMD Exposure System Exposure Time: 120-240s/ ㎡, #350 Yellow Mesh
Focus System: Dynamic Focusing
Highlight:

CTS Imaging Exposure System

,

Textile CTS Imaging Exposure System

,

Clothing Printing CTS System

Computer to screen (CTS) imaging & exposure system Machine Textile Clothing Printing

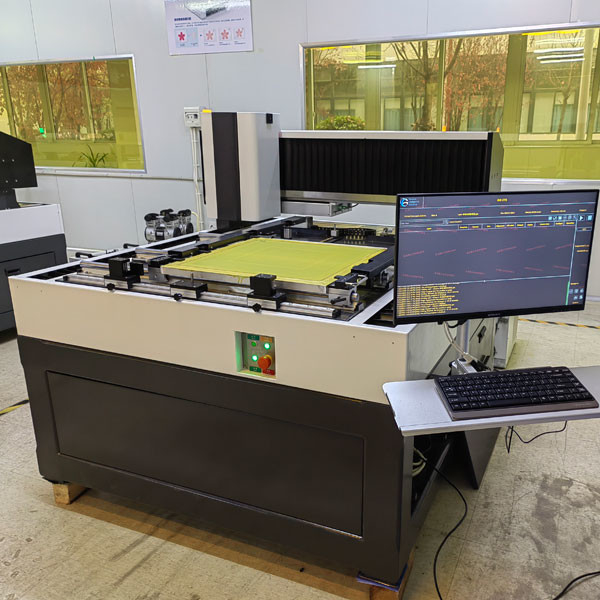

    CTS100 Computer to screen (CTS) machine is mainly for screen making in the textile printing industry. Its precision is 1270 or 2540 dpi, and the maximum screen size is 900x1000 mm. The focusing mode is dynamic focusing, and the production capacity can reach 120 S/m2 (according to the characteristics of photoresist). Because of its unique high performance and equipment flexibility, CTS100 is extremely suitable for screen making in the printing industry, and has become the preferred plate making product for many textile printing enterprises.

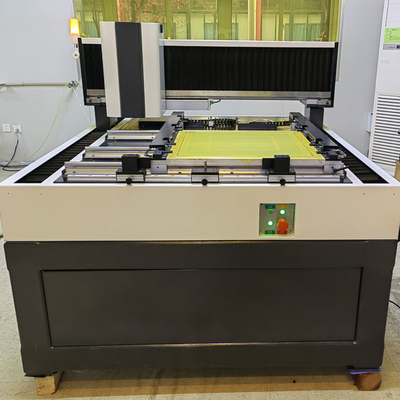

Max Screen Size 900*1000 Computer To Screen machine


      GIS has launched a direct screen laser exposure machine to produce perfect screen plates. These screen plates are used in printing, paper, packaging, PCB, glass and other industries.

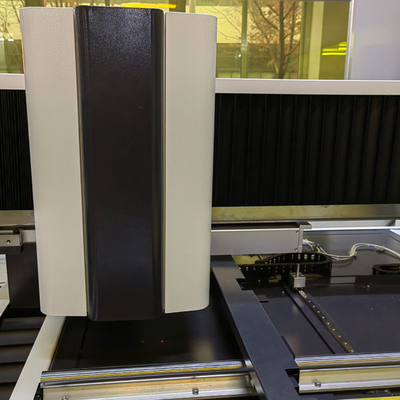

Data files is directly read by the computer to screen (CTS) and then converted into images which will be transmitted through laser beams onto screens by DMD and lens.
Our customer-oriented working principle strives to provide customers with professional CTS solutions. What we buy is not only computer to screen (CTS) equipment, but also integrated professional solutions and services to meet customer needs.





Advantages

  1. According to customer requirements, CTS machine can be configured with suitable lens 1.95X (higher accuracy), 2.052X.
  2. GIS develops our own the 405nm coupled laser and laser imaging system to increase laser utilization rate from 30% to 50%.
  3. CTS machine can present the minimum of 50 μm line width and 5% dots on the screen.
  4. CTS machine adopts HIWIN SP class guide rail, linear motor, Renishaw grating ruler, marble bed body to ensure the stability of our equipment.
  5. Our sales and service teams are all over the world. With the support of top technicians, we are committed to solving problems and malfunction in the sales process. We maximize the value of the equipments used.

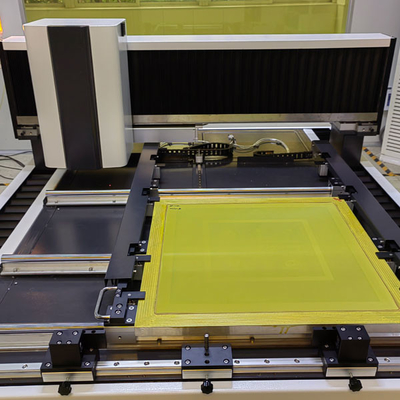

The maximum screen frame size can reach 900x1000.



  Specification / Model

  CTS100
  Max screen size ( mm )   900x1000
  Min screen size ( mm )   400x400

  Max exposure size ( mm )

  800x900
  Screen frame thickness
  (bespoke service is available)
  25-45mm
  Imaging System   DMD DLP Technology
  Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time   120-240s/ ㎡, #350 yellow mesh
  Resolution   1270
  Raster   133LPI
  Focus system   Fixed focusing
  File format   1_bit tiff etc.
  Laser type   UV laser, wavelength 405±5nm
  Laser power   20W
  Equipment size (mm)   1550x1330x1460
  Equipment net weight   1100KG
  Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
  40-70% relative humidity (No condensation)
  Power   Single phase 220v, 50/60HZ, 4KW, Compressed air: 0.6mpa



High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
