| Brand Name: | GIS |
| Model Number: | CTS100 |
| MOQ: | 1 set |
| Price: | negotiable price |
| Delivery Time: | 20 work days |

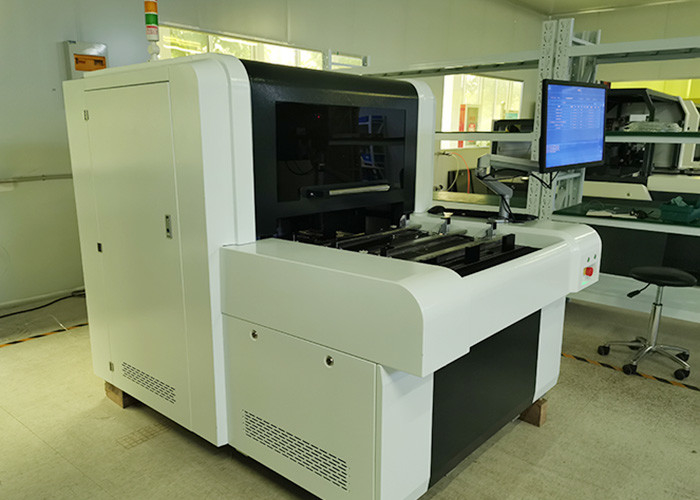

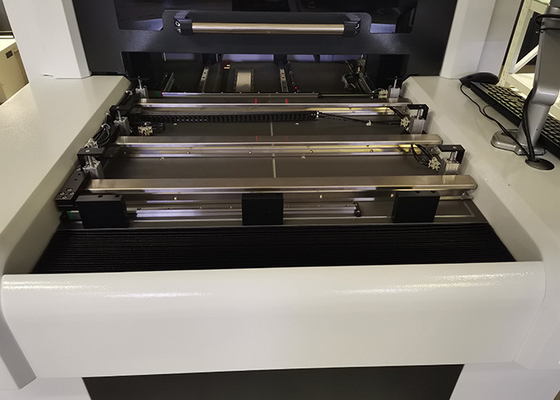

Laser Imaging On Printing Screen For Screen Printing Textile

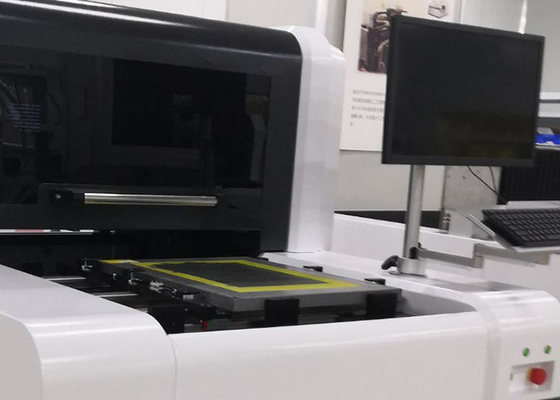

The CTS laser direct imaging machine uses TI's DMD digital imaging technology to form a clear and sharp direct network point image on the silk screen through laser projection. In this way, the digital graphics in the computer can be imaged on the screen. This system has become the process of making screen images before silk screen printing

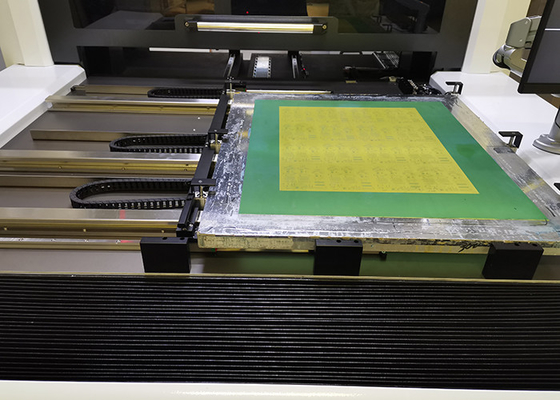

Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen.
GIS has passed ATL (TDK)/TDK qualified suppliers ISO 9001, OHSAS 18001, CE, China, the United States, Europe, South Korea, Japan, and more than 170 patents.
The maximum screen frame size can reach 900x1000.
|
Specification / Model |
CTS100 |
| Max screen size ( mm ) | 1000x1000 |
| Min screen size ( mm ) | 400x400 |
|
Max exposure size ( mm ) |
900x900 |
| Screen frame thickness (bespoke service is available) |
25-40mm |
| Imaging System | DMD DLP Technology |
| Emulsion thickness (EOM) | Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 220μm |
| Exposure time | 120-240s/ ㎡, #350 yellow mesh |
| Resolution | 1270 dpi |
| Raster | 133LPI |
| Focus system | Fixed focusing |
| File format | 1_bit tiff etc. |
| Laser type | UV laser, wavelength 405±5nm |
| Laser power | 30W |
| Equipment size (mm) | 1550x1330x1460 |
| Equipment net weight | 1200KG |
| Conditions | Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
| Power | Single phase 220v, 50/60HZ, 4kW, Compressed air:0.5Mpa |
High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi
High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.
Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
