ISO9001 Laser Direct PCB UV Exposure Machine Textile

ISO9001 Laser Direct PCB UV Exposure Machine Textile
ISO9001 Laser Direct PCB UV Exposure Machine Textile ISO9001 Laser Direct PCB UV Exposure Machine Textile ISO9001 Laser Direct PCB UV Exposure Machine Textile ISO9001 Laser Direct PCB UV Exposure Machine Textile

Large Image :  ISO9001 Laser Direct PCB UV Exposure Machine Textile

Product Details:
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO9001
Model Number: CTS100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month

ISO9001 Laser Direct PCB UV Exposure Machine Textile

Description
Name: Computer To Screen Application: Textile
Resolution: 1270dpi Max Screen: 900x1000
Emulsion Thickness: 3-350μm Laser Type: UV Laser Wavelength 405±5nm
Highlight:

Laser Direct pcb uv exposure machine

,

ISO9001 pcb uv exposure machine

,

Textile computer screen printing machine

Laser Direct Screen Making Machine For Screen Printing Textile

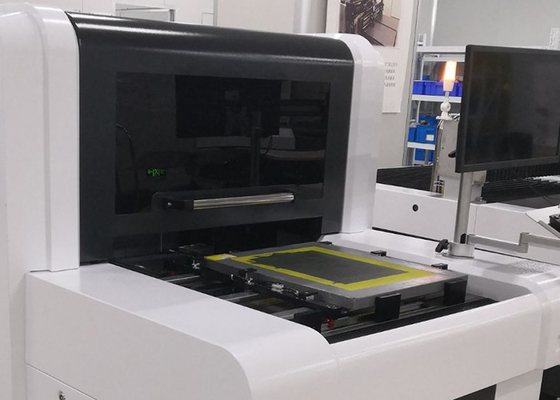

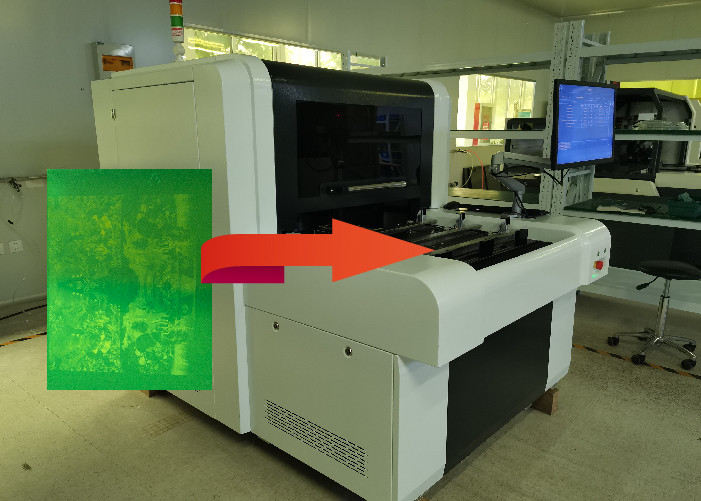

The CTS laser direct imaging machine uses TI's DMD digital imaging technology to form a clear and sharp direct network point image on the silk screen through laser projection. In this way, the digital graphics in the computer can be imaged on the screen. This system has become the process of making screen images before silk screen printing.

The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.

  •   Specification / Model

      CTS100
      Max screen size ( mm )   900x1000
      Min screen size ( mm )   400x400

      Max exposure size ( mm )

      800x900
      Screen frame thickness
      (bespoke service is available)
      25-45mm
      Imaging System   DMD DLP Technology
      Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
      Exposure time   120-240s/ ㎡, #350 yellow mesh
      Resolution   1270/2540dpi (Optional)
      Raster   133LPI
      Focus system   Fixed focusing
      File format   1_bit tiff etc.
      Laser type   UV laser, wavelength 405±5nm
      Laser power   20W/25W(Optional)
      Equipment size (mm)   1550x1330x1460
      Equipment net weight   1100KG
      Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
      40-70% relative humidity (No condensation)
      Power   Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min



  • High Resolution

It is easy and fast to achieve raster 133LPI and high quality screen dots by the optical 1270dpi, while with the opitcal 2540dpi, high definition curved lines and perfect FM screen dots can be realized.ISO9001 Laser Direct PCB UV Exposure Machine Textile 0

                                                               2540DPI
