Product Details
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month
Name: |
Computer To Screen |
Application: |
Textile |
Resolution: |
1270dpi |
Max Screen: |
900x1000 |
Name: |
Computer To Screen |
Application: |
Textile |
Resolution: |
1270dpi |
Max Screen: |
900x1000 |

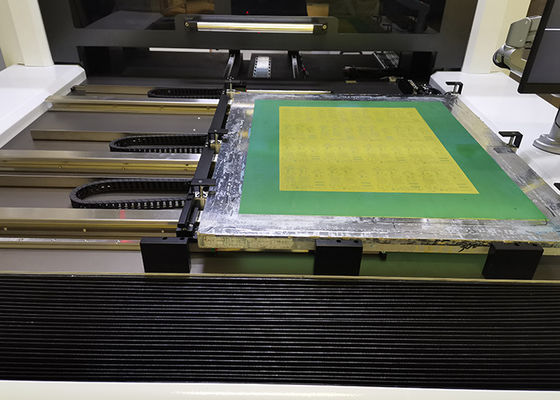

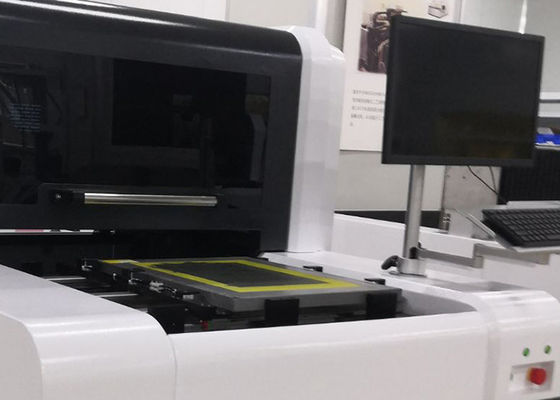

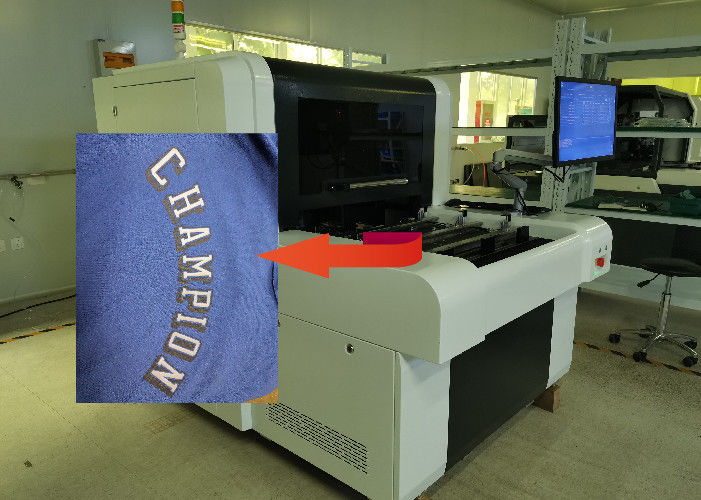

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.
The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.
|
Specification / Model |
CTS100 |
| Max screen size ( mm ) | 900x1000 |
| Min screen size ( mm ) | 400x400 |
|
Max exposure size ( mm ) |
800x900 |
| Screen frame thickness (bespoke service is available) |
25-45mm |
| Imaging System | DMD DLP Technology |
| Emulsion thickness (EOM) | Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 220μm |
| Exposure time | 120-240s/ ㎡, #350 yellow mesh |
| Resolution | 1270/2540dpi (Optional) |
| Raster | 133LPI |
| Focus system | Fixed focusing |
| File format | 1_bit tiff etc. |
| Laser type | UV laser, wavelength 405±5nm |
| Laser power | 20W/25W(Optional) |
| Equipment size (mm) | 1550x1330x1460 |
| Equipment net weight | 1100KG |
| Conditions | Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
| Power | Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min |
