400x400mm Computer To Screen Exposing Machine 2540dpi CTS100

Product Details

Place of Origin: Jiangsu, China

Brand Name: GIS

Certification: ISO 9001

Model Number: CTS1010

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable price

Packaging Details: wooden case packing

Delivery Time: 20 work days

Supply Ability: 30set per month

Get Best Price
Product Details
Highlight:

400mm computer to screen exposing machine

,

2540dpi computer to screen exposing machine

,

CTS 100 computer to screen machine

Name:
Computer To Screen
Application:
Textile
Resolution:
2540dpi
Max Screen:
1000x1000
Raster:
133LPI
Equipment Size:
1600*1000*1500mm
Emulsion Thickness:
3-500μm
Laser Type:
UV Laser Wavelength 405±5nm
Name:
Computer To Screen
Application:
Textile
Resolution:
2540dpi
Max Screen:
1000x1000
Raster:
133LPI
Equipment Size:
1600*1000*1500mm
Emulsion Thickness:
3-500μm
Laser Type:
UV Laser Wavelength 405±5nm
Product Description

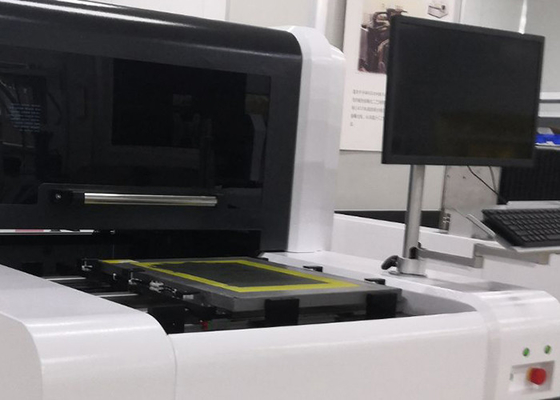

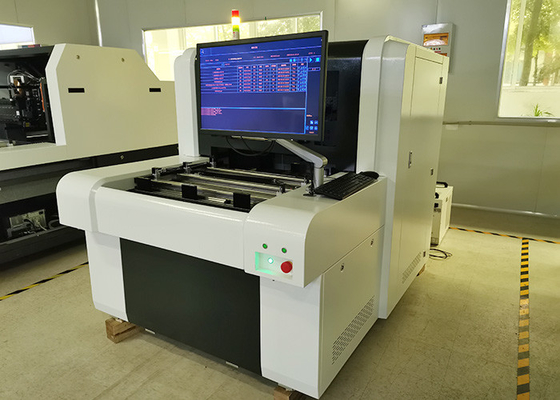

Exposure Machine CTS Mini screen size 400*400mm Max Screen Size 900*1000

  • Max Screen Size 900*1000 Computer To Screen machine

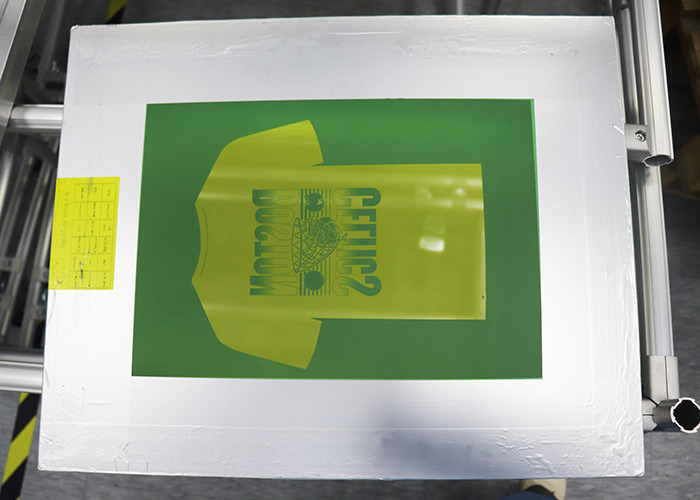

  1. GIS has launched a direct screen laser exposure machine to produce perfect screen plates. These screen plates are used in printing, paper, packaging, PCB, glass and other industries.

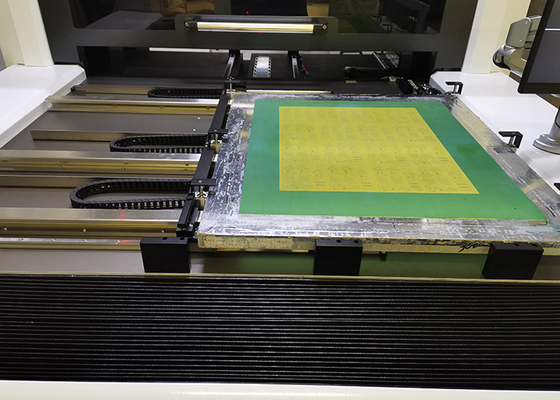

  2. Data files is directly read by the computer to screen (CTS) and then converted into images which will be transmitted through laser beams onto screens by DMD and lens.
  3. Our customer-oriented working principle strives to provide customers with professional CTS solutions. What we buy is not only computer to screen (CTS) equipment, but also integrated professional solutions and services to meet customer needs.



  •   Specification / Model

      CTS1010
      Max screen size ( mm )   1000x1000
      Min screen size ( mm )   400x400

      Max exposure size ( mm )

      900x900
      Screen frame thickness
      (bespoke service is available)
      25-40mm
      Imaging System   DMD DLP Technology
      Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm
      Exposure time   120-240s/ ㎡, #350 yellow mesh
      Resolution   1270/2540dpi (Optional)
      Raster   133LPI
      Focus system   Fixed focusing
      File format   1_bit tiff etc.
      Laser type   UV laser, wavelength 405±5nm
      Laser power   20W/25W(Optional)
      Equipment size (mm)   1740x1500x1500
      Equipment net weight   1200KG
      Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
      40-70% relative humidity (No condensation)
      Power   Single phase 220v, 50/60HZ, 4kW, Compressed air 0.5MPa

High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
