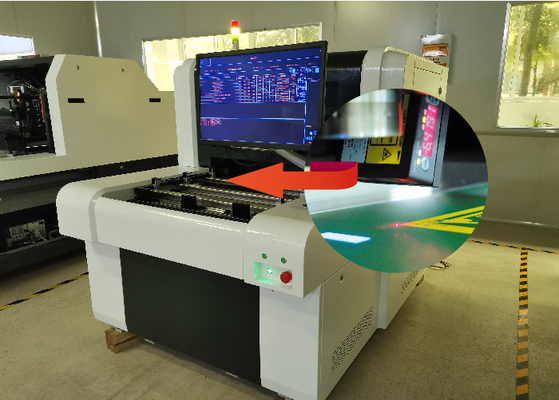

Textile Pre Press UV Laser Direct Imaging Machine 3540dpi

Product Details

Place of Origin: Jiangsu, China

Brand Name: GIS

Certification: ISO 9001

Model Number: CTS100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable price

Packaging Details: wooden case packing

Delivery Time: 20 work days

Supply Ability: 30set per month

Get Best Price
Product Details
Highlight:

UV Laser Direct Imaging Machine

,

Textile Laser Direct Imaging Machine

,

3540dpi LDI Equipment

Name:
Computer To Screen
Application:
Textile
Resolution:
3540dpi
Max Screen:
900x1000
Raster:
133LPI
Emulsion Thickness:
3-350μm
Laser Type:
UV Laser Wavelength 405±5nm
Name:
Computer To Screen
Application:
Textile
Resolution:
3540dpi
Max Screen:
900x1000
Raster:
133LPI
Emulsion Thickness:
3-350μm
Laser Type:
UV Laser Wavelength 405±5nm
Product Description

Textile Pre Press UV Laser Direct Imaging Machine LDI Equipment



CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU student patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.

Simple and simple laser direct plate making system-CTS laser direct plate making system and traditional silk screen plate making complete process, can directly read the format of 1-bit tiff data files, convert them into images and use laser head projection for exposure imaging, fine craftsmanship and traditional craftsmanship are complete Production, suitable for printing, decals, packaging, PCB, labels and signs, automotive glass, home appliance glass, electronic glass, decoration and other screen printing industries.

  •   Specification / Model

      CTS100
      Max screen size ( mm )   900x1000
      Min screen size ( mm )   400x400

      Max exposure size ( mm )

      800x900
      Screen frame thickness
      (bespoke service is available)
      25-45mm

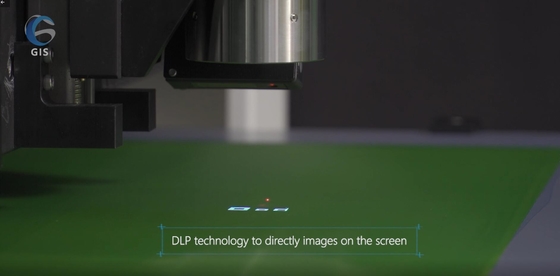

      Imaging System   DMD DLP Technology
      Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
      Exposure time   120-240s/ ㎡, #350 yellow mesh
      Resolution   2540dpi
      Raster   133LPI
      Focus system   Fixed focusing
      File format   1_bit tiff etc.
      Laser type   UV laser, wavelength 405±5nm
      Laser power   25W
      Equipment size (mm)   1550x1330x1460
      Equipment net weight   1100KG
      Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
      40-70% relative humidity (No condensation)
      Power   Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min



  • High Precision:

           Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing).

  • High Efficiency:

          3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time

          is saved by the accurate exposure alignment and lobor reduction.

  • Low Cost:

          Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly

          decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process.
