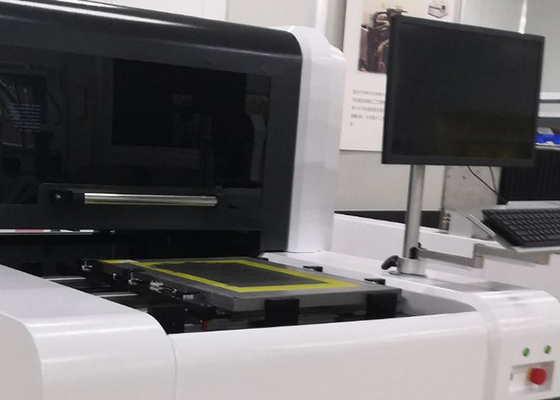

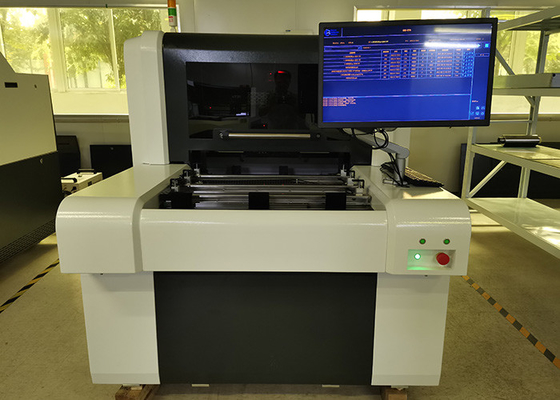

DMD DLP 220V CTS Computer To Screen UV Laser for Textile

Product Details

Place of Origin: Jiangsu, China

Brand Name: GIS

Certification: ISO 9001/ CE

Model Number: CTS100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable price

Packaging Details: wooden case packing

Delivery Time: 20 work days

Supply Ability: 30set per month

Get Best Price
Product Details
Highlight:

220V CTS Computer To Screen

,

DLP CTS Computer To Screen

,

UV Laser automatic screen exposing machine

Name:
Computer To Screen
Application:
Textile
Resolution:
1270dpi
Max Screen:
900x1000
Emulsion Thickness:
3-350μm
Laser Type:
UV Laser Wavelength 405±5nm
Name:
Computer To Screen
Application:
Textile
Resolution:
1270dpi
Max Screen:
900x1000
Emulsion Thickness:
3-350μm
Laser Type:
UV Laser Wavelength 405±5nm
Product Description

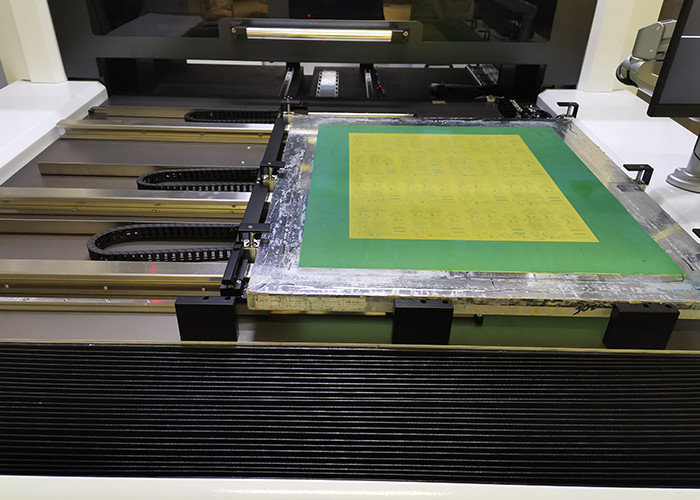

Laser Exposure On The Printing Screen CTS Computer To Screen



CTS laser direct plate making machine is to directly read computer data files and convert them into images, and then expose and image them on the screen by laser projection. This kind of imaging screen is suitable for textile printing, and also suitable for decals, packaging, PCB, 3C Printing on glass covers, etc.

The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.



  •   Specification / Model

      CTS100
      Max screen size ( mm )   900x1000
      Min screen size ( mm )   400x400

      Max exposure size ( mm )

      800x900
      Screen frame thickness
      (bespoke service is available)
      25-45mm
      Imaging System   DMD DLP Technology
      Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm
      Exposure time   120-240s/ ㎡, #350 yellow mesh
      Resolution   1270/2540dpi (Optional)
      Raster   133LPI
      Focus system   Fixed focusing
      File format   1_bit tiff, Gerber, etc.
      Laser type   UV laser, wavelength 405±5nm
      Laser power   20W/25W/30W(Optional)
      Equipment size (mm)   1750x1080x1970
      Equipment net weight   1250KG
      Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
      40-70% relative humidity (No condensation)
      Power

      Single phase 220v, 50/60HZ, 4kW, Com

  • High Precision:

          Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing).

  • High Efficiency:

          3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time

          is saved by the accurate exposure alignment and lobor reduction.

  • Low Cost:

          Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly

          decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process.
