Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm

Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm
Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm
Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm

Large Image :  Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS Vertical 1213
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month

Decal CTS Computer To Screen Exposing Machine Resolution 2540dpi 1200x1300mm

Description
Name: Vertical Vertical 1213 Application: Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc.
Resolution: 1270/2540dpi (Optional) Max Screen: 1200*1300mm
Raster: 133LPI Equipment Size: 2150*1450*2285mm
Emulsion Thickness: 3-350μm Laser Type: UV Laser Wavelength 405±5nm
Max Exposure Size: 1100*1200mm Imaging System: DMD DLP Technology
Emulsion Thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-.350μm Focus System: Fixed Focusing
File Format: 1_bit Tiff Etc. Laser Power: 20W/25W(Optional)
Conditions: Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) Power: Single Phase 220v, 50/60HZ, 4KW, Gas 1L/min
Automatic Intelligent Expansion And Shrinkage Function: Yes
Highlight:

Computer To Screen Exposing Machine 2540dpi

,

Decal CTS Computer To Screen Machine

,

CTS Exposing Machine 1200x1300mm

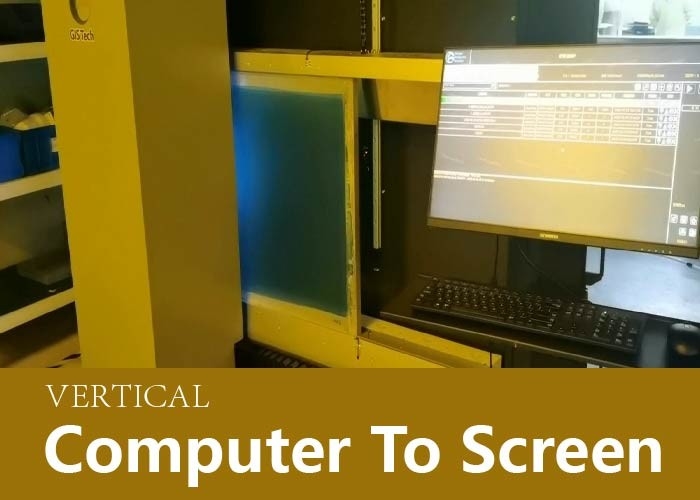

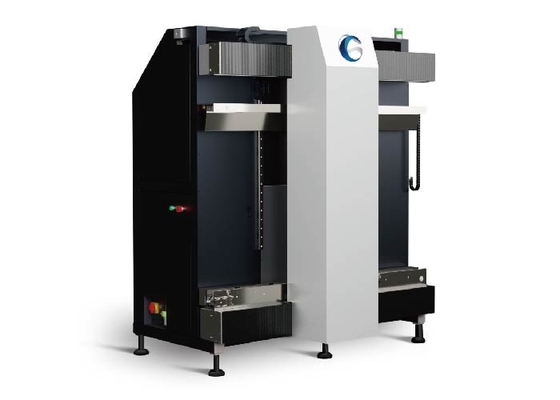

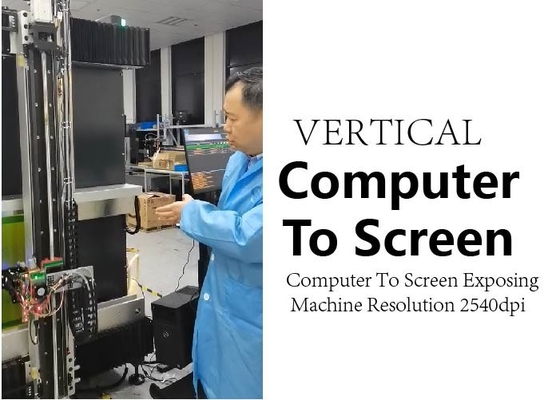

VERTICAL CTS Computer To Screen Exposing Machine Resolution 2540dpi Frame Size1200x1300mm



Computer-to-screen (CTS)

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.



GIS Tech is the pioneer in introducing the DLP Technology into the laser imaging applications, owning to our proprietary intellectual properties in the technologies of data processing, data transmission, graphics, electronic control, board controller, laser source and optical lenses. Our main products are CTS series (Computer to Screen system), a fully automatic printing plate exposure system.



CTS series is one of our mature laser direct imaging products, which is based on digital micro-mirror device (DMD) array technology. The equipment process an image pattern through a computer which converts the image into graphic machine data, then transfer the data to a digital micro-mirror array (DMD), which then directly projects the image onto a photoresist material to complete exposure.



We will be very pleased to provide you a small screen sample based on the file provided from you, please advise your requirements and quantities. Please also advise your FedEx account for shipping them to your address.





  Specification / Model

  Vertical 1213

  Max screen size ( mm )

  1200x1300

  Min screen size ( mm )

  600x600

  Max exposure size ( mm )

  1100x1200

  Screen frame thickness

  (bespoke service is available)

  25-45mm

  Imaging System

  DMD DLP Technology

  Emulsion thickness (EOM)

  Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm

  Exposure time

  120-240s/ ㎡, #350 yellow mesh

  Resolution

  1270/2540dpi (Optional)

  Raster

  133LPI

  Focus system

  Fixed focusing

  File format

  1_bit tiff etc.

  Laser type

  UV laser, wavelength 405±5nm

  Laser power

  20W/25W(Optional)

  Equipment size (mm)

 2150x1450x2285mm

  Equipment net weight

  2600KG

  Conditions

  Yellow light room with cleanliness Class 10000, temperature 22±2°C,

  40-70% relative humidity (No condensation)

  Power

  Single phase 220v, 50/60HZ, 4KW, gas 1L/min

                                                                                                       *Specifications subject to change without notice





CTS Advantages

High Precision:

Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)



High Efficiency:

3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:

Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process



High equipment quality:

The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.



About US

GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.
