Product Details:
|
Name: | Vertical Vertical 1213 | Application: | Textile, Decal, Label, Decoration, Packaging And PCB Etc |
---|---|---|---|
Resolution: | 1270/2540dpi (Optional) | Max Screen: | 1200*1300mm |
Raster: | 133LPI | Equipment Size: | 2150*1450*2285mm |
Emulsion Thickness: | 3-350μm | Laser Type: | UV Laser Wavelength 405±5nm |
Max Exposure Size: | 1100*1200mm | Imaging System: | DMD DLP Technology |
Focus System: | Fixed Focusing | File Format: | 1_bit Tiff Etc. |
Laser Power: | 20W/25W(Optional) | Power: | Single Phase 220v, 50/60HZ, 4KW, Gas 1L/min |
Frame: | 2 | Automatically Upload And Download Frames: | Yes |
Highlight: | Vertical CTS Exposing Machine,2Frame CTS Exposing Machine,4KW CTS Computer To Screen |

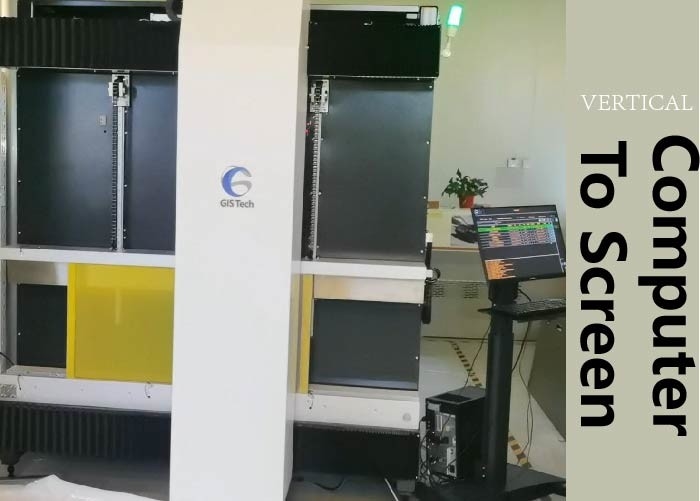

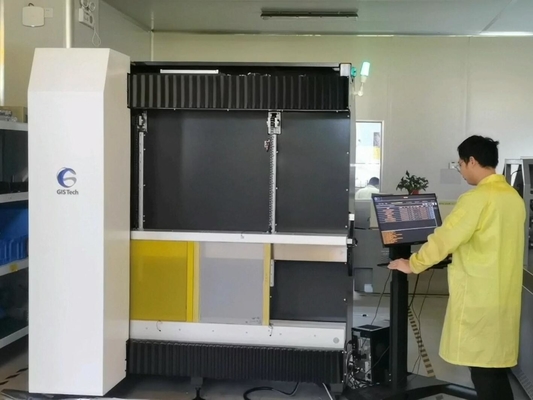

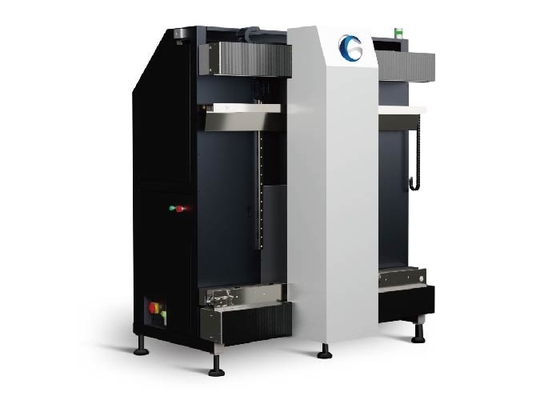

VERTICAL CTS Computer-To-Screen Exposing Machine CTS Imaging Systems Resolution 2540dpi
CTS series use 405nm wavelength high power, long life and low power consumption laser source high image resolution features and high precision linear motor, which enable high precision exposure directly on traditional screen surfaces. This provides high resolution (can achieve 1270dpi/2540dpi) printing, high efficiency and low-cost production to our customers. Stable cooling system guaranteed the stability of the equipment operation. Our proprietary intellectual property rights of dynamic focusing system, greatly reduces the demand for screen surface flatness. A newly developed pneumatic clamping system conveniently replaces various requirements of frame to fix up to 1200 * 1300 mm screen frame.
Computer-to-screen (CTS)
CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.
High Precision
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)
Excellent Laser Piercing Power
Exellent laser piercing power, 20W and 25W three laser powers are optional, and the thickness EOM 120μm
with solvent resistant emulsion and EOM 220μm with water resistant emulsion
High stability platform
HIWIN SP class guide rail, linear motor, Renishaw grating ruler, and marble base
Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers
on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of
from the conventional process
High Efficiency
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction
Specification / Model |
Vertical 1213 |
Max screen size ( mm ) |
1200x1300 |
Min screen size ( mm ) |
600x600 |
Max exposure size ( mm ) |
1100x1200 |
Screen frame thickness (bespoke service is available) |
25-45mm |
Imaging System |
DMD DLP Technology |
Emulsion thickness (EOM) |
Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 350μm |
Exposure time |
120-240s/ ㎡, #350 yellow mesh |
Resolution |
1270/2540dpi (Optional) |
Raster |
133LPI |
Focus system |
Fixed focusing |
File format |
1_bit tiff etc. |
Laser type |
UV laser, wavelength 405±5nm |
Laser power |
20W/25W(Optional) |
Equipment size (mm) |
2150x1450x2285mm |
Equipment net weight |
2600KG |
Conditions |
Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
Power |
Single phase 220v, 50/60HZ, 4KW, gas 1L/min |
*Specifications subject to change without notice
